Specifications
Sp vertical mine dewatering pumps1. Flow: 4.7-352 l/s.
2. Head: 4-40 m.
3. Power: 15-200 kw.
ISO 9001: 2008. CE.

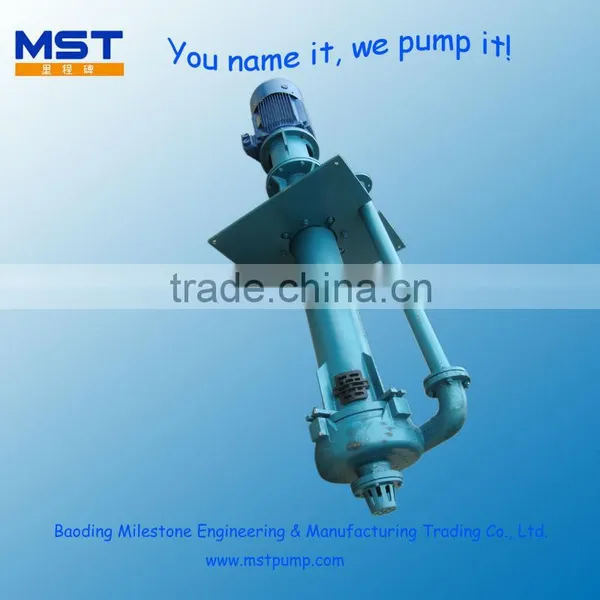

Sp vertical mine dewatering pumps
The MSP/MSPR Centrifugal verticle slurry pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty cantilever design makes the MSP/MSPR sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.
MSP/MSPR Centrifugal verticle slurry pump
ü Reliability
-by design.
ü Low Spares costs
-from longer wear life.
ü Lower Energy costs
-from maintained efficiency.
ü After Sales Support
-second to none.
World class manufacturing of Centrifugal verticle slurry pump
Underlying our product capability is our introduction of the latest CAD CAM techniques and the implementation of lean manufacturing principles, keeping us at the forefront of manufacturing technology, delivering direct customer benefits.
Clean water performance
Centrifugal verticle slurry pump
| Type | Material | Clear Water Performance | Impeller | Max. Particle size (mm) | Weight (kg) | |||||
| Capacity | Head (m) | Speed (r/min) | Max Eff. % | No.of Vanes | Impel.Dia. (mm) | |||||
| (m³/h) | (l/S) | |||||||||
| MSP | ||||||||||
| 40MSP | Metal | 19~43 | 5~12 | 4~28 | 1000~2200 | 40 | 5 | 188 | 12 | 285 |
| 65MSP | 24~87 | 6~24 | 5~31 | 700~1500 | 58 | 5 | 280 | 15 | 430 | |
| 100MSP | 54~289 | 15~80 | 5~35 | 500~1200 | 56 | 5 | 370 | 32 | 860 | |
| 150MSP | 108~480 | 30~130 | 8~40 | 500~1000 | 52 | 5 | 450 | 45 | 1700 | |
| 200MSP | 189~891 | 52~247 | 6~37 | 400~850 | 64 | 5 | 520 | 65 | 1950 | |
| 250MSP | 261~1089 | 72~302 | 7~33 | 400~750 | 60 | 5 | 575 | 65 | 2400 | |
| 300MSP | 288~1267 | 80~352 | 6~33 | 350~700 | 50 | 5 | 610 | 65 | 2600 | |
| MSPR | ||||||||||
| 40MSPR | Rubber | 17~40 | 5~11 | 4~26 | 1000~2200 | 40 | 5 | 188 | 12 | 280 |
| 65MSPR | 22~105 | 6~29 | 5~30 | 700~1500 | 51 | 5 | 280 | 15 | 420 | |
| 100MSPR | 65~285 | 18~80 | 5~35 | 600~1200 | 62 | 5 | 370 | 32 | 840 | |
| 150MSPR | 108~480 | 30~130 | 8~40 | 500~1000 | 52 | 5 | 450 | 45 | 1700 | |
| 200MSPR | 189~891 | 52~247 | 6~35 | 400~850 | 64 | 5 | 520 | 65 | 1950 | |
| 250MSPR | 261~1089 | 72~302 | 7~32 | 400~750 | 60 | 5 | 575 | 65 | 2400 | |
| 300MSPR | 288~1267 | 80~352 | 6~33 | 350~700 | 50 | 5 | 610 | 65 | 2600 | |
Quick selection chart
Centrifugal verticle slurry pump
We use our specialist Centrifugal verticle slurry pump knowledge and experience from around the world to deliver reliable products and service solutions.
Trading information
Item |
Centrifugal Verticle Slurry Pump |
MOQ |
1 Set |
Payment Terms |
L/C,T/T,Western Union,Paypal |
Delivery Time |
15 workdays after advanced payment |
Port |
Tianjin China |
Packing details |
1.Standard Ply wood case |
Supply Ability |
600Sets per month |
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Professional Centrifugal verticle slurry pump service andsolution.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
Why always me? Because we do pump right!
