Specifications
1) Aluminum thickness: 0.24mm~1.2mm2) Aluminum max width:1000mm ,1200mm
3 Color: RAL standard
Embossed aluminum coil
With over years of experience in this line, we are one of the biggest stucco embossed
coated aluminum coil manufacturer in the North China. Our manufacturing plants in
Chinause the highest quality time tested proprietary coatings,coupled with the latest techniques
in manufacturing processes !
|
Usage:
|
ACP,ROOFING,GUTTERING,CEILING,SHUTTER etc. |
Pattern |
Diamond pattern, Stucco (Orange peel) pattern |
|
Details |
01) alloy: A1100 /A3003,H18/H16 02) aluminum thickness: 0.022-1.2mm 03) Standard width: 1240mm, width range from 50mm to 1600mm 04) Interior diameter: 150mm, 405mm 05) 0.5-2.7T/coil or by buyer's option 06) Color: RAL standard, by your samples 07) Coating face: PVDF, PE and ACRYLIC 08) Total coating thickness: PVDF coating: more than 25 micron PE coating: more than 18 micron ACRYLIC coating: more than 12 micron 09) Gloss deviation: When gloss below 70, tolerance below 10% When gloss above 70, tolerance below 5% 10) Coating hardness: (pencil hardness) more than 2H 11) Coating adhesive: no lower than first grade 12) Impact resistance: no cracking and peeling (50kg/cm, ASTMD-2794:1993) 13) Flexibility (T-bend): ≤2T 14) MEK resistance: more than 100 15) Bottom side of aluminum sheet is coated with protective polyester material: thickness more than 6 micron |
Colors available
1)For genenal colors,please refer to our ACP color chart
2)Customized color, please note the following
a.Provide a sample color:better to be a color painted on metal base in order to prevent color difference
b.If you know the factory color code or international standard color code,just provide us with those code number.This could be the quickest and most precise method
c.Normally it will take 1 week for us to counter-provide our color samples for you to compare and confirm by the co-work of our painting experts and the paint suppliers.
d.After receiving our counter-samples,nfirm to s as quik as possible on in order for us to set out for production accordingly.
Products show :

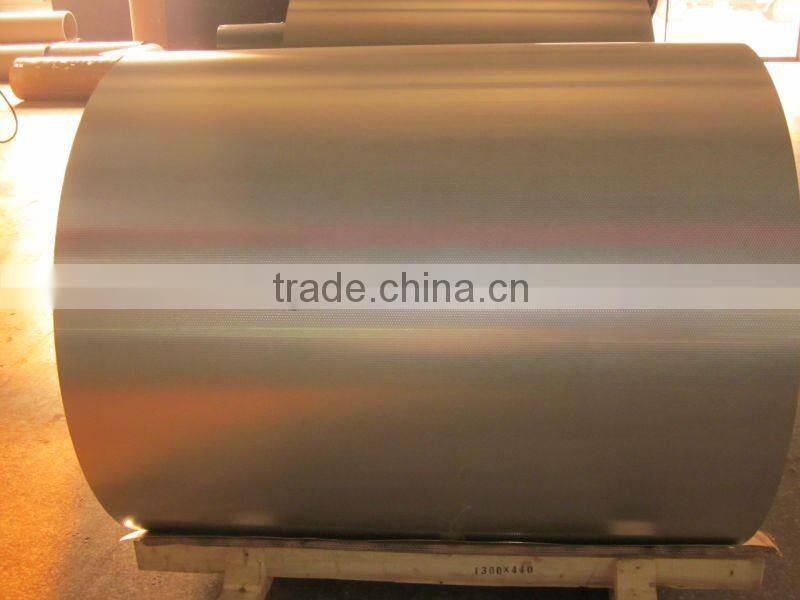

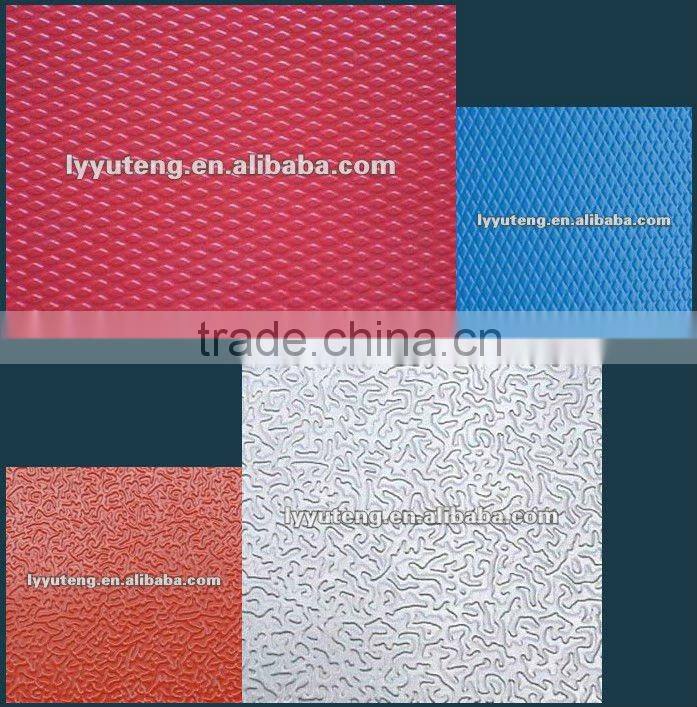

Stucco embossed aluminum coil
Diamond embossed aluminum coil
Roofing on the villa
Package
Fair and exhibition
If you are interested in our products please feel free to contact me.
Thanks and regards,
Angela
Skype :jhsale
Mobile :86-13345092607
