Professional body fat analyzer/body composition analyzer/body element analyzer TM-GS6.5

Specifications

Professional body composition analyzer
1.Quality Assure
2.CE;PSE ISO 9001
3.1 year warranty
4.Video and Manual guide

Professional body fat analyzer/body composition analyzer/body element analyzer

TM-GS6.5

1.Quality Assure
2.CE;PSE ISO 9001
3.1 year warranty

4.Video and Manual guide





Theory:



1. Using principles of human biotechnology.



2. 8 Point electrode contact: There are two parts of each electrode used to measure the human body's elements and also to be used to measure the elements in various parts of the body's resistance value in accurately.



3. Use of multiple regression analysis of the frequency and increase the scope of testing to enhance accuracy.



4. Implementation of intelligent control, touch operation; visualization application interface, allowing users to learn easy, safe and easy to operate.



5. Can store up to 120 complete historical records.



6. The structure of a clear, easy to install and easy to maintain.



7. The results of the analysis in order to be able to approach the output statements to clients.









Health dates:
1. Body composition: Water content, protein, inorganic salt, bone mass
2. Muscle fat analyzing: Body weight, skeleton weight, fat weight.
3. Obesity analysis: Weight, fat weight, WHR, water ratio, B. M. R
4. Obsesity diagnosis
5. Comprehensive assessment
6. Weight control
7. Exercise intensity
8. Dietary reference intake
9. Health evaluation



10. SD card to save customer’s information



11. Out-build color printer







Technical data:



Test Method	Multi-frequency bioelectrical impedance analysis (MFBIA)
Test Part	bioelectrical impedance analysis on the part of left upper limb, right upper limb, trunk,  left lower extremity, right lower extremity
Test Frequency	Three different frequency(20KHZ, 50KHZ, 100KHZ)
Electrode Method	8 point contact electrode
Computing method of body components	Do not estimate through empirical value
Output Value(25)	TBW, protein, mineral salt, Body fat, bone weight, Weight,IBW, fat free weight SMM(Skeletal muscle), BMI(Body mass index), PDF(percentage of body fat), WHP(waisthip ratio),moisture ratio,  Obesity diagnosis, nutritional assessment, Weight  assessment, obesity assessment, Goal weight,Weight control,Fat  control, Muscle control, Health assessment, basic metabolism, bioelectrical impedance.
Rated current	less than 180μA
Power	Input power: AC100-240V, 50/60HZ
Screen	320*240 STN LCD Touching Screen
Operation Language	English and Multiple Language Option
Values Storage	50000×10 and SD Card unlimited expansion is available
External Storage	SD Card transfer to computer for large storage
External Interfaces	RJ-45, USB2
Printer Interfaces	USB
IC Card System	standard IC card control
Printer	A4 color paper ink-jet printer(manufacturers appoint the model), internally installed thermal printer
MEAS. Of Package	49CM*50CM*118CM, GW: 40KG; NW:32KG. MEAS. Of printer package: 63CM*44CM*38CM
Test time	No more than 2 minutes
Operation Environment	Temperature:10-400C(50-1040°F),humidity: 30-80%RH, 500-600hPa
Conservation Environment	Temperature: 0-400C(32-1040F),humidity: 30-80%RH, 500-600hPa
Test scope of weight	10~200Kg; Test scope of age: 10-99 ages; Test scope of height: 90-200cm
External expansion project	Ultrasonic Height Measurer(selective purchasing)

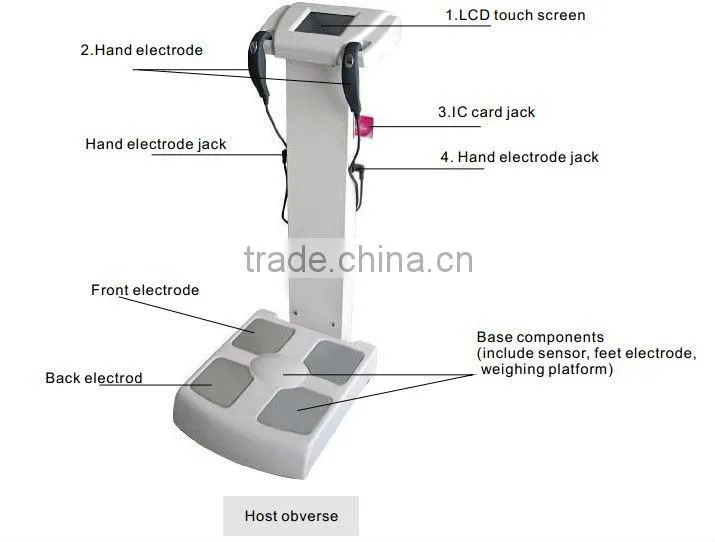

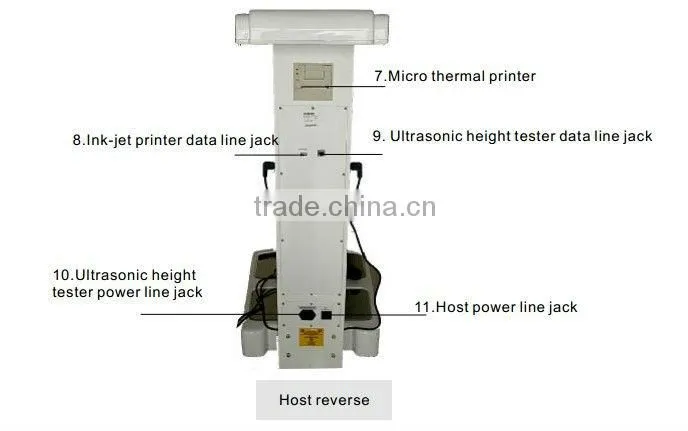

Parts Narration:

Date Printe



Correct test posture

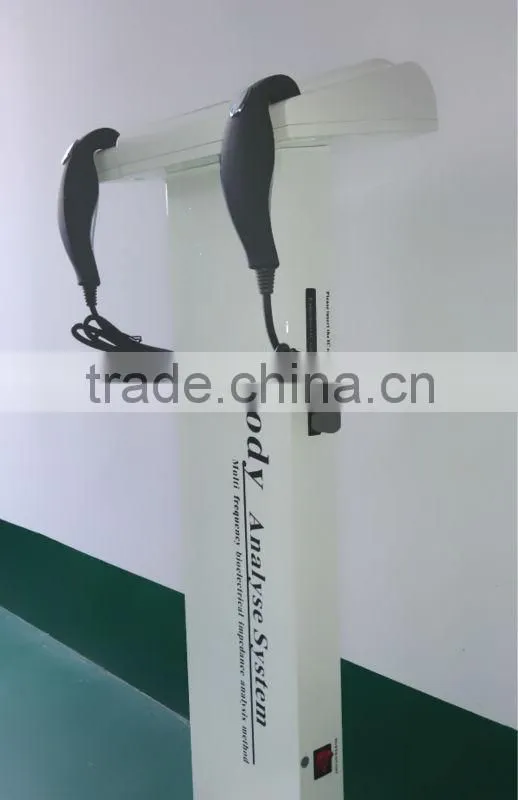

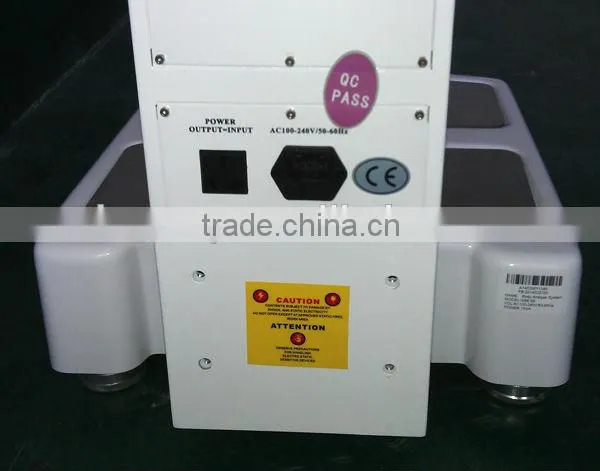

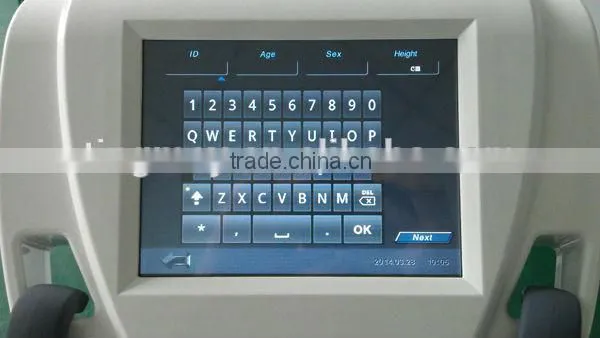

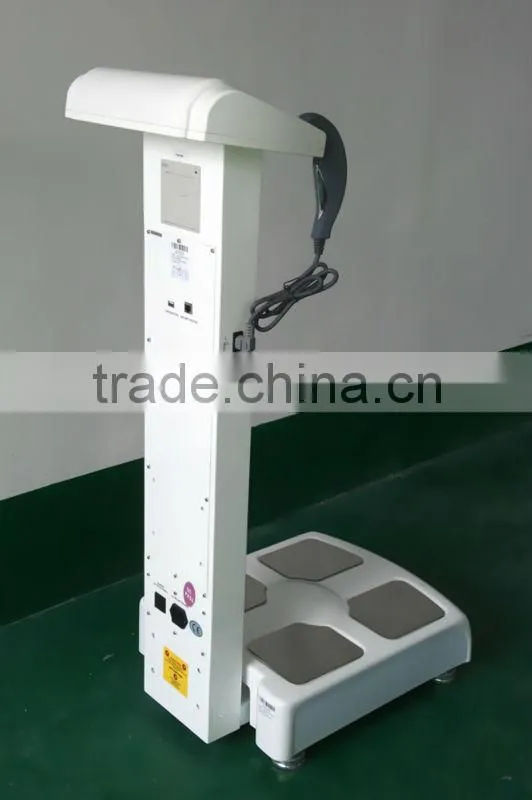

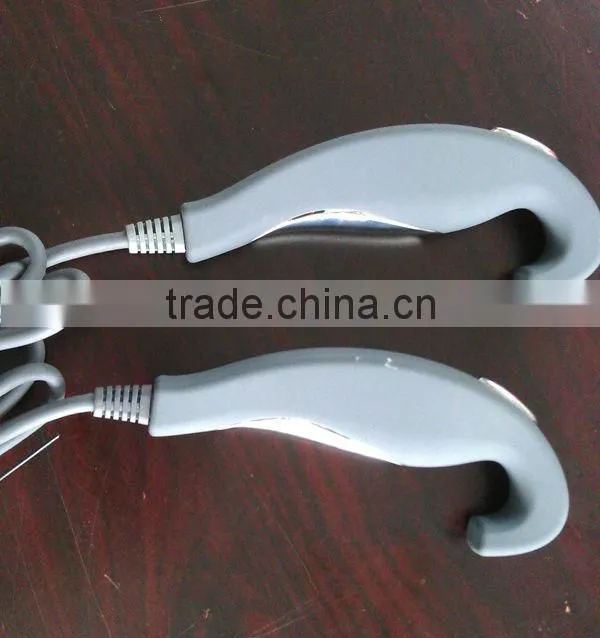

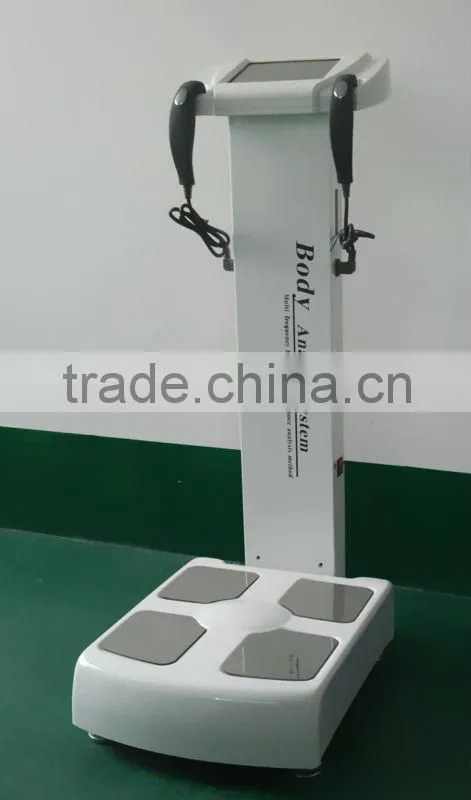

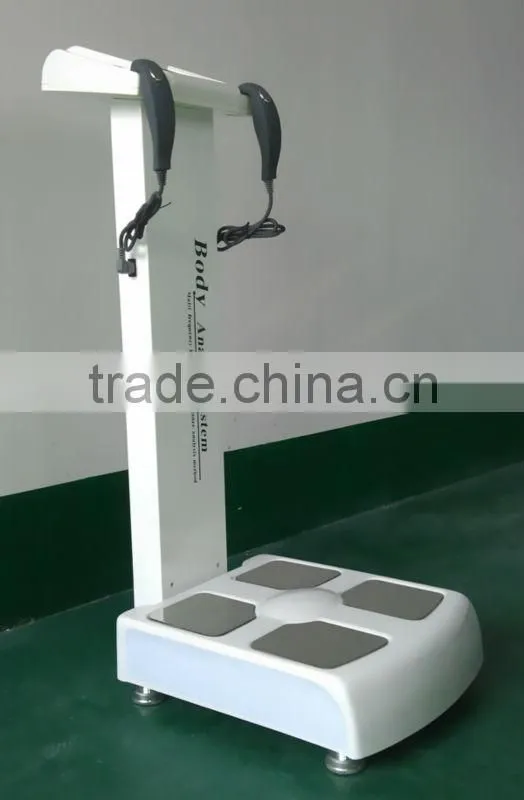

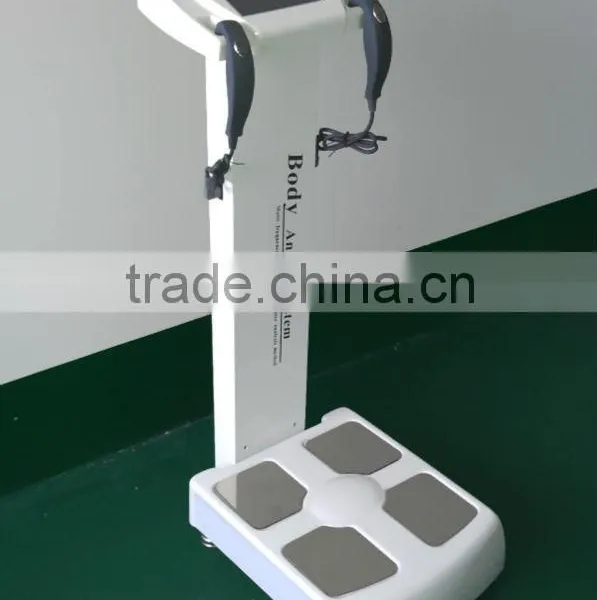

More Pictures

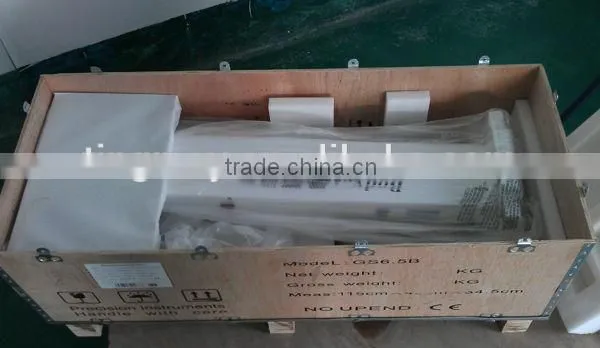

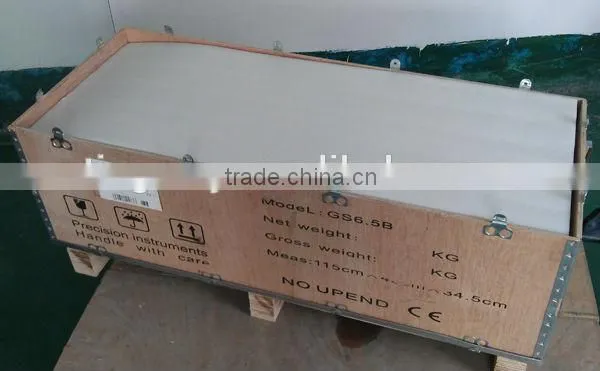

Package
