sandwich panel price aluminum decorative wall panel aluminum roof panel

Specifications

aluminum roof panel
1.OEM/ODM acceptable.
2.Competitive price.
3.Material easily processing
4.PE/PVDF coated

sandwich panel price aluminum decorative wall panel aluminum roof panel

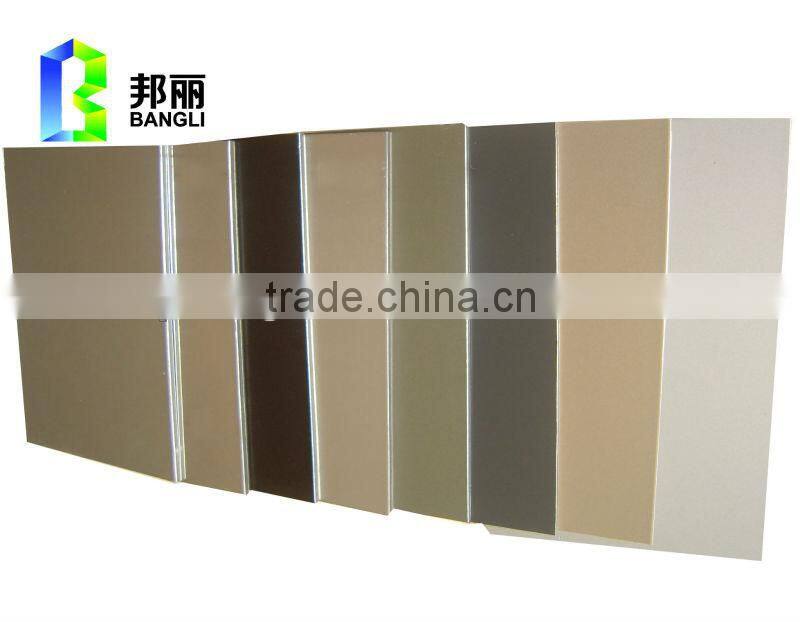

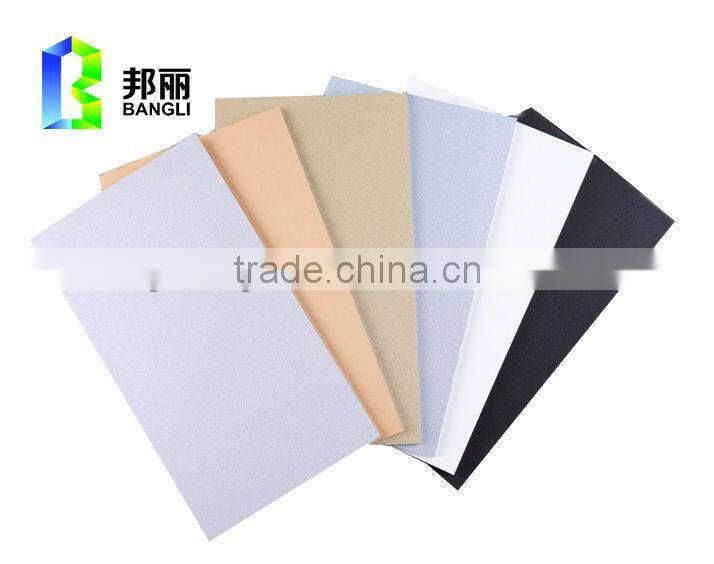

Aluminium Composite Panel (ACP) or Aluminium Composite Material (ACM) is a widely-used term describing flat panels that consist of a non-aluminium core bonded between two aluminium sheets. Aluminium sheets can be coated with PVDF or Polyester paint.



ACPs are frequently used for external cladding of buildings (building facades), for insulation and for signage.

ACP is very rigid and strong despite its light weight. Aluminium can be painted in any kind of colour, and ACPs are produced in a wide range of metallic and non-metallic colours as well as patterns that imitate other materials, such as wood or marble.



Applications of ACPs are not limited to external building cladding, but can also be used in any form of cladding such as partitions, false ceilings etc. Aluminium Composite Panels are also widely used within the signage industry as an alternative to heavier, more expensive substrates.



The core is commonly low density Polyethylene or an insulating material no less than 10 cm thick when its use is refrigeration insulation.



Aluminum Composite Panel (acp; Aluminum plastic composite panel)



Specifications:

1) Aluminum sheet thickness: a) 0.5 x 0.5mm b) 0.4 x 0.4mm c) 0.3 x 0.3mm d) 0.21 x 0.21mm e) 0.15 x 0.15mm



2) Panel thickness: 3mm, 4mm



3) Dimensions: a) Width: 1,000mm, 1,220mm, 1,250mm, 1,570mm

                             b) Length: 2440mm,within 6000mm( upon customers' request)



4) Standard specific. (width x length x thickness): a) 1,220 x 2,440 x 3mm  b) 1,220 x 2,440 x 4mm



5) Conventional color: 20 colors for  aluminum composite panel ,6 colors for granite grain panel



6) Non-standard sizes and special colors are available, according to customers' request



Characteristics:

 1) Super peeling strength



2) Excellent surface flatness and smoothness



3) Superior weather, corrosion, pollutant resistance



4) Even coating, various colors



5) Fireproof, excellent heat and sound insulation



6) Superior impact resistance



7) Lightweight and easy to process



8) Easy to maintain



Application scope:

 1) Building exterior curtain walls



2) Decoration and renovation additions for old buildings



3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies



4) Shop door decorations



5) Advertisement board display platforms and signboards



6) Wallboards and ceilings for tunnels



7) Industrial materials, materials for vehicles and boats



Item	Panel Thickness (mm)	Alu. Thicknessmm)	Width(mm)	Length(mm)	Coating
Standard	4	0.5	1220	2440	PVDF
	3	0.21	1220	2440	Polyester
Others	3~6	0.12~0.5	1000, 1250, 1350, 1500,1570	Customized	PVDF/PE
Special					Brushed Finish
					Mirror Finish
					Granite Grain
					Wood Grain
Packing	Wooden Crates, Bulk
Color	Various colors requested by customers
MOQ	1000 sqm per width, color and specification
