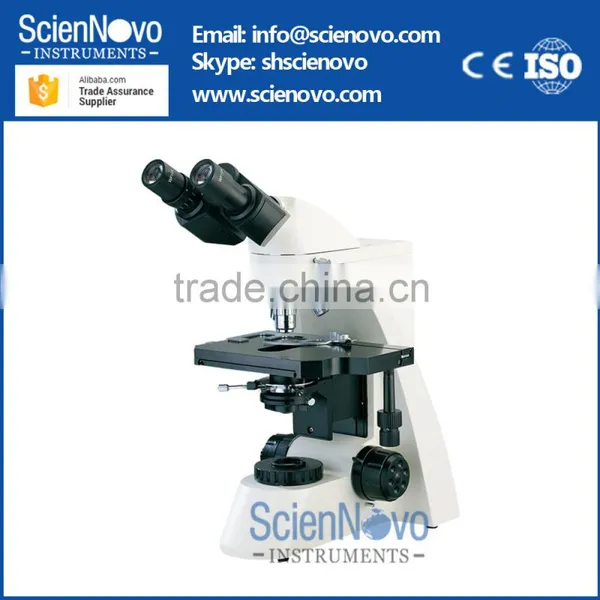

Scienovo L3000 China High quality CE Proved biological microscope binocular xsz binocular microscope
L3000series Biological Microscope is equipped with plan achromatic objectives and wide field eyepieces. It provides clear image, wide field, convenience operation. It can be used for biology medicine agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Features
1,With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
2,Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing:2um
3,Using Kohler illumination with 6V 20W halogen lamp with brightness control
Model |
L3000A |
L3000B |
Eyepiece |
WF10X(Φ20mm) |
|
Objective |
Plan achromatic PL 4X/0.10 |
Plan achromatic PL 4X/0.10 |
Plan achromatic PL 10X/0.25 |
Plan achromatic PL 10X/0.25 |
|
|
Plan achromatic PL 20X/0.40 |
|
Plan achromatic PL 40X/0.65(Spring) |
Plan achromatic PL 40X/0.65(Spring) |
|
Plan achromatic PL 100X/1.25(Spring, oil) |
Plan achromatic PL 100X/1.25(Spring, oil) |
|
Eyepiece tube |
Binocular(Inclination of 30) |
|
Focus system |
Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing 2μm. |
|
Nosepiece |
Quadruple(Backward ball bearing inner locating) |
Quintuple(Backward ball bearing inner locating) |
Stage |
Double layer mechanical (Size 210mmX140mm, Move range 75mmX50mm) |
|
Abbe condenser |
N.A.1.25 Rack & pinion adjustable |
|
Filter |
Blue filter |
|
Frosted filter | ||
Collector |
For halogen lamp |
|
Light source |
6V 20W Halogen lamp with brightness control |
|
Accessories:
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
WF16X(Φ11mm) |
1051016 |
|
Dividing10X(¦µ20mm),0.1mm/Div |
1121010 |
||
Eyepiece tube |
Trinocular |
Inclination of 30 |
12007 |
Filter |
Green filter |
115002 |
|
Yellow filter |
115003 |
||
Condenser |
Dark field |
Dry |
51001 |
Immersion |
51002 |
||
Phase contrast unit |
Eyepiece |
Centering telescope |
110001 |
Objectives |
Phase contrast plan achromatic 10X/0.25 PHP |
2420110 |
|
Phase contrast plan achromatic 20X/0.40 PHP(Spring) |
2420120 |
||
Phase contrast plan achromatic 40X/0.65 PHP(Spring) |
2420140 |
||
Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) |
2420111 |
||
Turnplate phase contrast condenser(PH-¢ñ) |
52001 |
||
Turnplate phase contrast condenser(PH-¢ò) |
52004 |
||
Flashboard phase contrast condenser |
52002 |
||
Pull board phase contrast condenser |
52003 |
||
Infinity optical system |
Eyepiece tube |
Binocular (Inclination of 30) |
11104 |
Trinocular (Inclination of 30) |
12104 |
||
Eyepiece |
Centering telescope |
110002 |
|
Objectives |
Infinity plan achromatic 4X/0.10 |
2060104 |
|
Infinity plan achromatic 10X/0.25 |
2060110 |
||
Infinity plan achromatic 20X/0.40 |
2060120 |
||
Infinity plan achromatic 40X/0.65(Spring) |
2060140 |
||
Infinity plan achromatic 100X/1.25(Spring, oil) |
2060111 |
||
Infinity phase contrast plan achromatic 10X/0.25 PHP |
2470110 |
||
Infinity phase contrast plan achromatic 20X/0.40 PHP |
2470120 |
||
Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) |
2470140 |
||
Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) |
2470111 |
||
CCD adapter |
0.4X |
810001 |
|
0.5X |
810004 |
||
1X |
810002 |
||
0.5X with dividing 0.1mm/Div |
810003 |
||
Camera |
DV-1(With USB & video output) |
800001 |
|
DV-2(With USB output) |
800003 |
||
DV-3(With video output) |
800005 |
||
Digital camera adapter |
Digital camera adapter(A610,A620,A630,A640) |
820001 |
|
Photograph unit |
2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
840001 |
|
4X Focusing photograph attachment |
840002 |
||
MD Adapter |
840003 |
||
PK Adapter |
840004 |
||
Facility polarize |
Polarizer(360 rotatable stage) |
111001 |
|
Analyzer |
111103 |
||
|
Contact us |
Welcome to contact us for Quotation and PI |
Order Methods |
1.Alibaba Trade Assurance |
|
Step1: We will send you a online order contract on Alibaba website by Email after we made a agreement about everyting. Step2: You confirm our Alibaba online order Contract after you receive our Email, Then you can operate everything according to Alibaba website requirement (You need to have a Alibaba account) Step3: You pay money to Alibaba website Step4: We will receive your payment infor mation and prepare goods and ship it to you Step5: You confirm all information on Alibaba website after you receive our products Step6: We will receive your payment after we finished our happy cooperation. | |
2.Order on our Aliexpress website | |
|
Step1: Contact us for the right model and right configuration. Step2: Order what your need on our alibaba website Step3: We prepare goods and shipping it to you Step4: We will receive your payment after you confirm the shipping informaiton | |
3.T/T |
- Packing: 1 pcs/ 1 wooden box or Carton Box, Depends customers Requirement
- Delivery time: 7- 10 days after receive payment
- Shipping : The products will be shipped via EMS, FedEx, DHL, TNT, UPS, Special-line, sea shipping, Air transportation etc. according to the WEIGHT and DESTINATION COUNTRIES.
