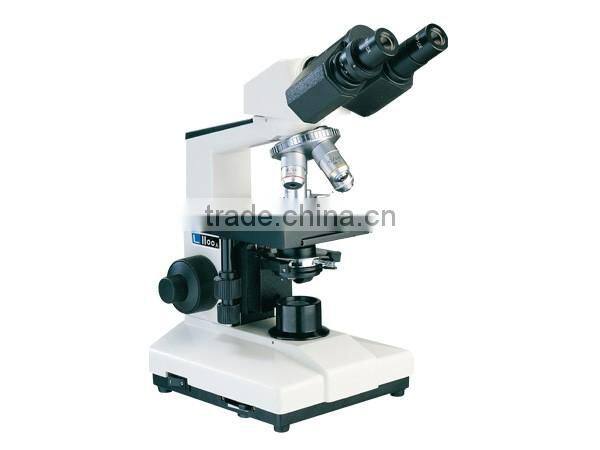

Scienovo L1100 China High quality and Cheapest laboratory microscope biological for sales

Model

L1100A

L1100B

Eyepiece

Wide field WF10X(Φ18mm)

Wide field WF16X(Φ11mm)

Objective

Achromatic 4X/0.10

Achromatic 4X/0.10

Achromatic 10X/0.25

Achromatic 10X/0.25

Achromatic 40X/0.65(Spring)

Achromatic 40X/0.65(Spring)

Achromatic 100X/1.25(Spring, oil)

Achromatic 100X/1.25(Spring, oil)

Eyepiece tube

Binocular(Inclination of 30)

Focus system

Coaxial coarse/fine focus system. Minimum division of fine focusing: 2μm

Coaxial coarse/fine focus minimum division of fine focusing: 2μm, with tensional adjustable and limit stopper, base bearing black plastic cap

Nosepiece

Quadruple(Frontward ball bearing inner locating)

Stage

Double layer mechanical ( Size 135mmX125mm, Move range 75mmX35mm)

Abbe condenser

N.A.1.25 Rack & pinion adjustable

Filter

Blue filter

Frosted filter

Collector

For halogen lamp

For halogen lamp

Light source

6Volt 20Watt Halogen lamp with brightness control

Name

Sort/Technique parameter

NO.

Eyepiece

10XDividing, 10X dividing eyepiece 0.1mm/Div

1021010

Objective

Semi-plan achromatic SP 4X/0.10

2030104

Semi-plan achromatic SP 10X/0.25

2030110

Semi-plan achromatic SP 20X/0.40

2030120

Semi-plan achromatic SP 40X/0.65(Spring)

2030140

Semi-plan achromatic SP 100X/1.25(Spring, oil)

2030111

Eyepiece tube

Monocular (Inclination of 30)

10006

Binocular(Sliding)(Inclination of 45)

11201

Trinocular(Sliding)(Inclination of 45)

12201

Trinocular (Inclination of 30)

12003

Dual viewing tube(Inclination of 30)

13002

Nosepiece

Quintuple(Frontward ball bearing inner locating)

32001

Filter

Green filter

115002

Yellow filter

115003

Light source

LED Collector

High brightness white

73006

Condenser

Dark field

Dry

51001

Immersion

51002

Phase contrast unit

Eyepiece

Centering telescope

110001

Objectives

Phase contrast achromatic 10X/0.25 PHP

2410110

Phase contrast achromatic 20X/0.40 PHP(Spring)

2410120

Phase contrast achromatic 40X/0.65 PHP(Spring)

2410140

Phase contrast achromatic 100X/1.25 PHP (Spring, oil)

2410111

(PH-Ⅰ ) Turnplate phase contrast condenser

52001

(PH-Ⅱ) Turnplate phase contrast condenser

52004

Flashboard phase contrast condenser

52002

Pull board phase contrast condenser

52003

Infinity optical system

Eyepiece tube

Binocular(Inclination of 30)

11101

Trinocular(Inclination of 30)

12101

Eyepiece

Centering telescope

110002

Objective

Infinity plan achromatic 4X/0.10

2080104

Infinity plan achromatic 10X/0.25

2080110

Infinity plan achromatic 40X/0.65(Spring)

2080140

Infinity plan achromatic 100X/1.25(Spring, oil)

2080111

Infinity phase contrast achromatic 10X/0.25 PHP

2480110

Infinity phase contrast achromatic 20X/0.40 PHP(Spring)

2480120

Infinity phase contrast achromatic 40X/0.65 PHP(Spring)

2480140

Infinity phase contrast achromatic 100X/1.25 PHP(Spring, Oil)

2480111

CCD adapter

0.4X

810001

0.5X

810004

1X

810002

0.5X with dividing 0.1mm/Div

810003

Camera

DV-1(With USB & video output)

800001

DV-2(With USB output)

800003

DV-3(With video output)

800005

Photography

USB Output

1096001

VIDEO Output

1108001

Digital camera adapter

CANON Digital camera adapter (A610,A620,A630,A640)

820001

Photograph unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

840001

4X Focusing photograph attachment

840002

MD Adapter

840003

PK ADapter

840004

Facility polarize

Polarizer(360 rotatable)

111001

Analyzer

111101

Adapter(For LED illumination)

Input  230V¡«50/60HZ   Output  9V  500mA

101001

Input  110V¡«50/60HZ   Output  9V  500mA

101002
