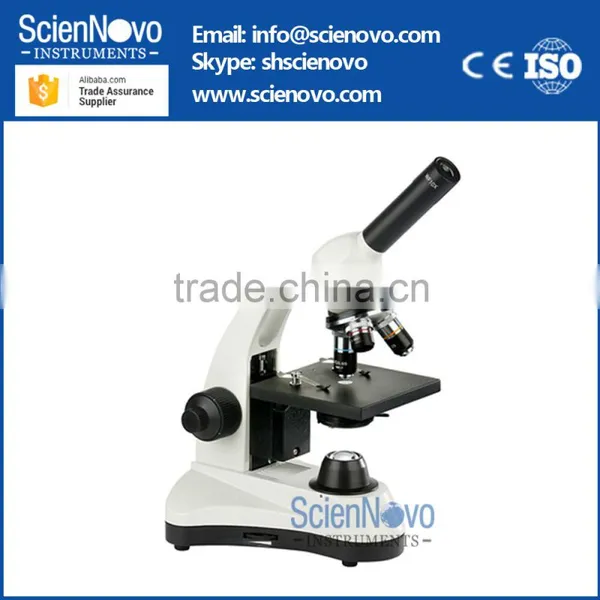

Scienovo L790B Biological Microscope/digital microscope/electron microscope price/Microscope
L790B series biological microscopes are equipped with monocular, achromatic objectives and wide field eyepieces. They have provides clear image and convenience operation. They can be used for medicine agriculture area widely. They are the ideal instruments in medical treatment, teaching demonstration.
Features
1,With wide field eyepieces and achromatic objectives, the field of view is clear.
2,Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm.
3,High brightness white LED lamp transmission illumination
Model |
L790B |
Eyepiece |
WF10X(Φ18mm) |
Objective |
Achromatic 4X/0.10 |
Achromatic 10X/0.25 | |
Achromatic 40X/0.65(Spring) | |
Achromatic100X/1.25(Spring oil) | |
Eyepiece tube |
Monocular,360 rotatable (Inclination of 45) |
Nosepiece |
Quadruple (Frontward ball bearing outer locating) |
Focus system |
Coaxial coarse/fine focus system. Minimum division of fine focusing: 4μm |
Stage |
Double-layer mechanical, size:125mmX115mm, move range:70mmX30mm |
Abbe condenser |
Rack &pinion adjustment |
Collector |
|
Light source |
LED High brightness white LED lamp |
Accessories:
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Wide field WF16X(Φ11mm) |
1051016 |
|
Point 10X(Φ18mm) |
1043010 |
||
Stage |
Fixed(Size:120mmX120mm, With single lens and iris diaphragm) |
040001 |
|
Fixed(Size:120mmX120mm, with slide moving holder and Abbe condenser) |
040004 |
||
Filter |
Blue filter |
115001 |
|
Green filter |
115002 |
||
Yellow filter |
115003 |
||
Frosted filter |
115004 |
||
Collector |
For Fluorescent and Halogen lamp |
060002 |
|
For Incandescent lamp |
060004 |
||
Light source |
High brightness white LED lamp |
With adapter |
073011 |
High brightness white LED lamp |
With adapter and charge batteries |
073012 |
|
Halogen lamp |
12V 20W |
070019 |
|
Fluorescent lamp |
110V/220V, 5W Can be choose |
071006 |
|
Incandescent lamp |
220V/110V, 20W Can be choose |
072004 |
|
Camera |
Photography |
USB Output |
1096001 |
VIDEO Output |
1108001 |
||
|
Adapter (For LED illumination) |
Input: 230V¡«50/60HZ Output: 9V 500mA |
101001 |
|
Input: 110V¡«50/60HZ Output: 9V 500mA |
101002 |
||
|
Contact us |
Welcome to contact us for Quotation and PI |
Order Methods |
1.Alibaba Trade Assurance |
|
Step1: We will send you a online order contract on Alibaba website by Email after we made a agreement about everyting. Step2: You confirm our Alibaba online order Contract after you receive our Email, Then you can operate everything according to Alibaba website requirement (You need to have a Alibaba account) Step3: You pay money to Alibaba website Step4: We will receive your payment infor mation and prepare goods and ship it to you Step5: You confirm all information on Alibaba website after you receive our products Step6: We will receive your payment after we finished our happy cooperation. | |
2.Order on our Aliexpress website | |
|
Step1: Contact us for the right model and right configuration. Step2: Order what your need on our alibaba website Step3: We prepare goods and shipping it to you Step4: We will receive your payment after you confirm the shipping informaiton | |
3.T/T |
- Packing: 1 pcs/ 1 wooden box or Carton Box, Depends customers Requirement
- Delivery time: 7- 10 days after receive payment
- Shipping : The products will be shipped via EMS, FedEx, DHL, TNT, UPS, Special-line, sea shipping, Air transportation etc. according to the WEIGHT and DESTINATION COUNTRIES.
