Specifications
JS500 concrete mixer with lift1.Easy operation and low power
2.automatic discharge
3.Long life and best service

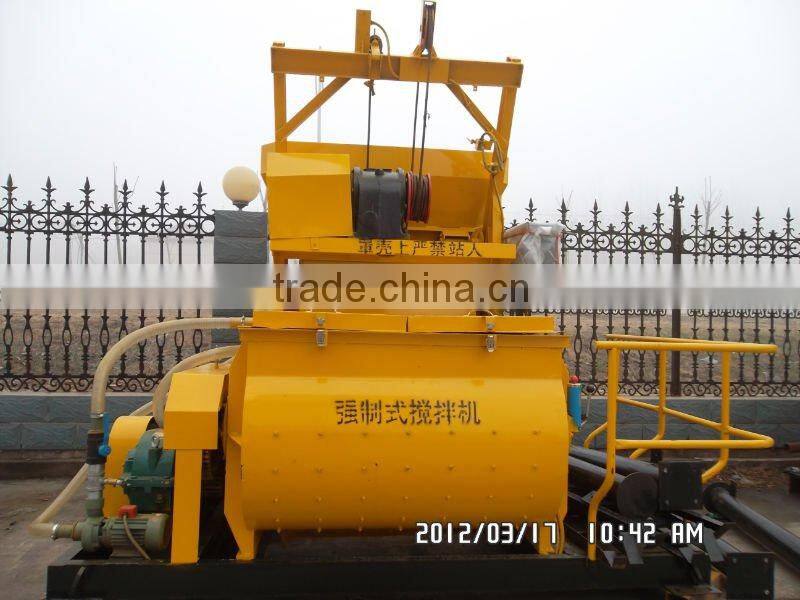

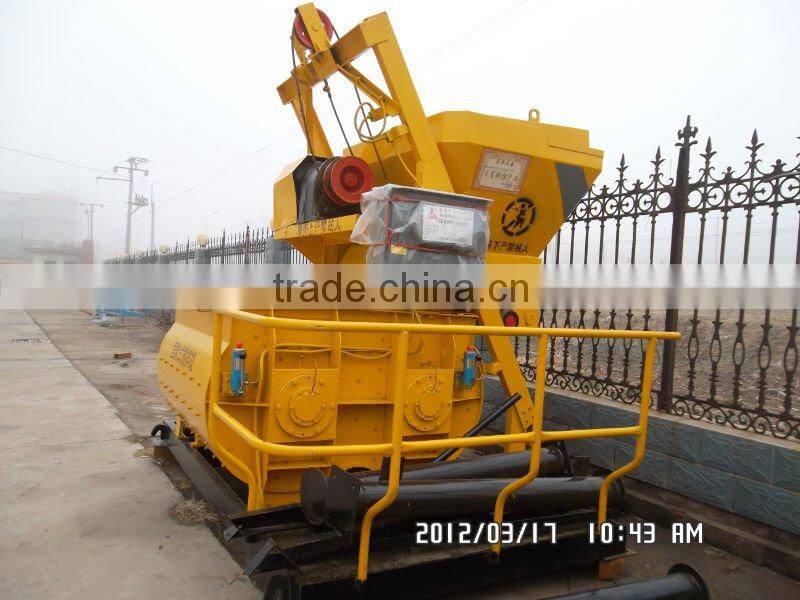

JS500 concrete mixer with lift
JS500 concrete mixer is dual horizontal shaft concrete mixer, which can work independently,
also can be composed the concrete mixing plant with other matched equipment., and it can
be applicable to large, medium and small precast concrete products factory and roads,
railways, bridges, water conservancy, civil construction project, and it can mix dry and hard
concrete, plastic concrete, light aggregate concrete and all kind of mortar, it is one kind of
high efficiency, widely used construction machinery. It owns reasonable design ,and its
mechanical accessories used industry standard parts, and its maintenance is much convenient.
Type | JS500 |
Charging volume | 800L |
Discharging volume | 500L |
Production capacity | ≥25m3/h |
Mixing Motor Power | 18.5 KW |
Electric motor power for windlass | 5.5KW |
Water pump power | 0.75KW |
Maximum grain size of aggregate | 60mm |
Weight | 4500Kg |
Overall dimension (L*W*H) | 2200x2950x2700mm |
