Concrete Mixer JS500 Low Price Hydraulic Concrete Mixer

Concrete Mixer JS500 Low Price Hydraulic Concrete Mixer photo-1
US$ 5,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Huali
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Huali
Model Number JS500
Motor Power 25.1kw
Mixing Power 18.5kw
Charging Capacity 800L
Reclaiming capacity 500L
Speed of Mixing Drum 35r/min
Water Supply Mode Auto
Working Cycle Period 2 mins
Discharge Way JS500 Low price double shaft concrete mixer
Outline Dimension 1.93*2.94*4.4m
After-sales Service Provided Engineers available to service machinery overseas

Specifications

JS500 Low price hydraulic concrete mixer
1.Easy operation and low power
2.Automatic discharge
3.Water supply
4.Factory

Concrete mixer JS500 Low price hydraulic concrete mixer



Concrete mixer JS500 Low price hydraulic concrete mixer









   Concrete mixer JS500 Low price hydraulic concrete mixer Concrete Mixer Model:
JS500
Function and Capacity:

Concrete mixer JS500 Low price hydraulic concrete mixer,



Function:Hydraulic



Capacity: 25m3/hour

JS500 Concrete Mixer Details :
  • Hottest Selling
  • High Quality
  • Low Price
  • Egg Laying
  • German Standard
Includes
1,The latest, reasonable appearance.
2,Balance pressure design, perform smooth and steady.
3,This is one of Huali Machinery's patented products.

4,Counterfeiting, should be investigated for legal liability.

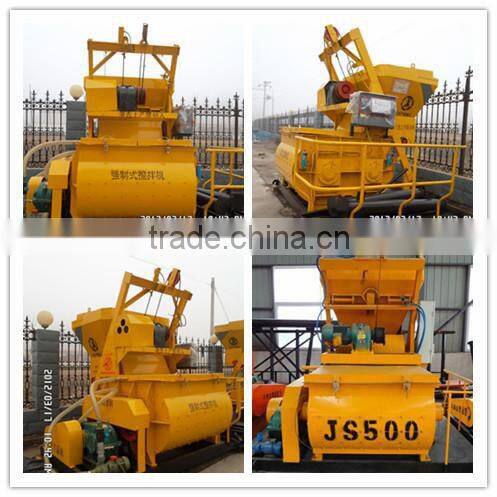

Photos Show



       Concrete mixer JS500 Low price hydraulic concrete mixer

Fatures:

Specifications

1. Factory direct supply    2.100% pre-tested    3.Quick delivery    4.Perfect after sale service



a.Introduction



JS500 concrete mixer is dual horizontal shaft concrete mixer, which can work independently,



also can be composed the concrete mixing plant with other matched equipment., and it can



be applicable to large, medium and small precast concrete products factory and roads,



railways, bridges, water conservancy, civil construction project, and it can mix dry and hard



concrete, plastic concrete, light aggregate concrete and all kind of mortar, it is one kind of



 high efficiency, widely used construction machinery. It owns reasonable design ,and its



mechanical accessories used industry standard parts, and its maintenance is much convenient.



b.Technical parameter



Output capacity

500L

Input capacity

800L

Capacity

≥25m3/h

Max aggregate size

80/60mm

Agitating  vane

RPM

35r/min

Quantity

2*7

Mixer motor

Model

Y180m-4

Power

18.5kw

Windless motor

Model

YEZ1325-4-B5

Power

5.5kw

Water pump motor

Model

50DWB20-8A

Power

7.5kw

Hopping lifting speed

18m/min

Over size

Transporting position

3050*2300*2680mm

Working position

4461*3050*5225mm

Weight

4000kg

Unloading height

1500mm

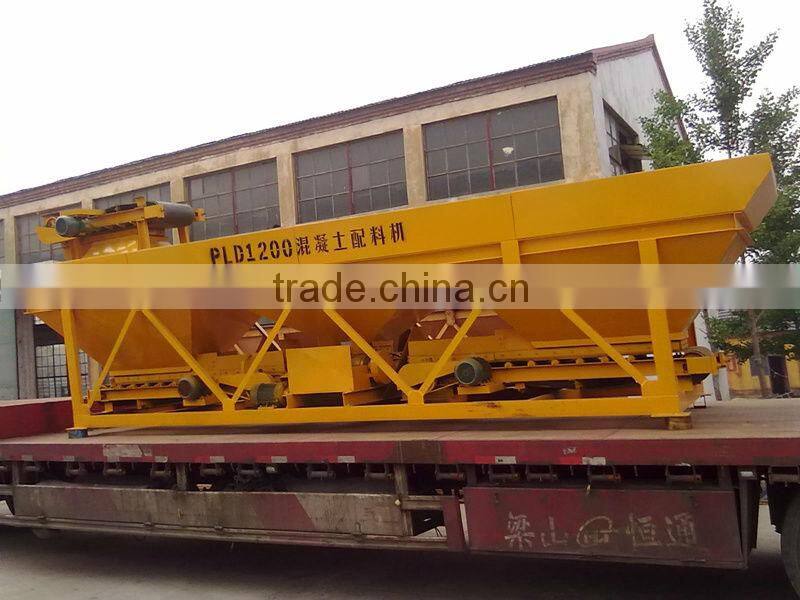

Pictures of package of some of our machines





       Concrete mixer JS500 Low price hydraulic concrete mixer



Our Professional Factory = High Quality Machines!!






                  Concrete mixer JS500 Low price hydraulic concrete mixer

                  Concrete mixer JS500 Low price hydraulic concrete mixer







Shipping Terms &Conditions
  • FAST SHIPPING from our Linyi China Factory!
  • Item shipped in 15-28 working days after payment is received depends on the quantity of the order.
  • Item shipped by sea transpotation depending on size and weight of total order.
  • Item only shipped to port listed on the invoice; Not responsible for shipping to wrong address.
  • Bill of lading will be sent to you as soon as we ship the goods.
