Wind Generator Inverter 4000W off Grid Pure Sine Wave, Used for Wind Turbine and Solar Panel.

Wind Generator Inverter 4000W off Grid Pure Sine Wave, Used for Wind Turbine and Solar Panel. thumbnail-1
Wind Generator Inverter 4000W off Grid Pure Sine Wave, Used for Wind Turbine and Solar Panel. photo-1
US$ 460 - 515 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
R&X
Model Number:
RX-4000-S
Contact Supplier Request Quote Chat Now
Nantong R&X Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENHEN/SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name R&X
Model Number RX-4000-S
Output Power 1 - 200KW
Output Type Single
Size 500*200*150mm
Weight 14kg
Input Voltage 12/24/48/110V DC
Output Voltage 100/110/120/220/230/240V AC
Type DC/AC Inverters
Output Frequency 50Hz/60Hz

Specifications

wind generator inverter
1.Input:12V/24V48VVDC
2.Output:100/110/120/220/230/240V AC
3.Pure sine wave

Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.







Sample Purchase online: Click here







Technical Data



Model RX-4000-S
AC output voltage 100/110/120/V or 200/220/230/240V
Output power 4000W
Instant peak power 8000W
output wave form pure sine wave
output frequency 50HZ or 60HZ(±2%)
Output THD <4%
Input DC input voltage 12V or 24V or 36V or 48V
voltage range 10.5-15V or 21-30V or 33-45V or 42--60V
no-load current <0.8A
Efficiency >88%
Fuse 12V 40A*11
24V 20A*11
48V 20A*11
Protection Low voltage alarm 10±0.5V or 20±1V or 30±1V or 38±2V
Low voltage shut down 9.5±0.5V or 19±1V or 28±1V or 37±2V
Over voltage shut down 15.5V or 31V or 46V or 64V
Over temperature shut down Yes
short-circuit protection Yes
Over load protection 120%
Inversed protection Fuse Inversed
Enviroment Work temperature -20°C to +50°C
Humidity 20%~90%RH non-dondensation
Storage tmeperature -30°C to+70°C
Others Size(mm) 500*200*150
N.W.(KG) 13±0.5KG
G.W.(KG) 14.0KG

















Description



1. This power inverter instantly convert low voltage DC power to high voltage AC household power.



2. High reliability and low failure rate by using the advanced Double-CPU single chip intellectual



control technology.



3. Pure sine wave output. Small, light and artistic, benefited from adopting the SMD pastern



 technology.



4. Cooling fan is intellectual controlled, and its working status is controlled by CPU, which



mostly increased its service life and helps to save the power consumption, improve work



efficiency and lower the working noise.



5. You can use many places. Such as Solar electric energy generation, Wind power generation,



Communication equipment, Industrial intellectual control system, Small sized emergency power



supply system
















Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.



Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.



Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.



Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.



Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.

Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.

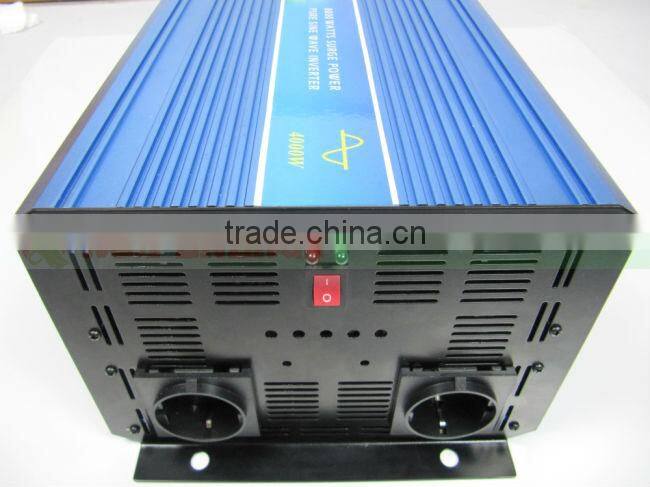

Socket design for different countries



Wind generator inverter 4000W off grid pure sine wave, used for wind turbine and solar panel.
