Specifications
solar pump inverter1.Input:12V/24V48V/110VDC
2.Output:100/110/120/220/230/240V AC
3.Pure sine wave
Solar pump inverter 800w. 12V/24V48V/110VDC to 100/110/120/220/230/240V AC
Sample Purchase online: Click here
Technical Data
| Model | RX-800-S | |||
| AC output voltage | 100/110/120/V or 200/220/230/240V | |||
| Output power | 800W | |||
| Instant peak power | 1600W | |||
| output wave form | pure sine wave | |||
| output frequency | 50HZ or 60HZ(±2%) | |||
| Output | THD | <4% | ||
| Input | DC input voltage | 12V or 24V or 36V or 48V | ||
| voltage range | 10.5-15V or 21-30V or 33-45V or 42--60V | |||
| no-load current | <0.6A | |||
| Efficiency | >88% | |||
| Fuse | 12V | 50A*2 | ||
| 24V | 50A*2 | |||
| 48V | 50A*2 | |||
| Protection | Low voltage alarm | 10±0.5V or 20±1V or 30±1V or 38±2V | ||
| Low voltage shut down | 9.5±0.5V or 19±1V or 28±1V or 37±2V | |||
| Over voltage shut down | 15.5V or 31V or 46V or 64V | |||
| Over temperature shut down | Yes | |||
| short-circuit protection | Yes | |||
| Over load protection | 120% | |||
| Inversed protection | Fuse Inversed | |||
| Enviroment | Work temperature | -20°C to +50°C | ||
| Humidity | 20%~90%RH non-dondensation | |||
| Storage tmeperature | -30°C to+70°C | |||
| Others | Size(mm) | 210*150*70 | ||
| N.W.(KG) | 2.2±0.2Kg | |||
| G.W.(KG) | 3.0KG | |||
Description
1. This power inverter instantly convert low voltage DC power to high voltage AC household power.
2. High reliability and low failure rate by using the advanced Double-CPU single chip intellectual
control technology.
3. Pure sine wave output. Small, light and artistic, benefited from adopting the SMD pastern
technology.
4. Cooling fan is intellectual controlled, and its working status is controlled by CPU, which
mostly increased its service life and helps to save the power consumption, improve work
efficiency and lower the working noise.
5. You can use many places. Such as Solar electric energy generation, Wind power generation,
Communication equipment, Industrial intellectual control system, Small sized emergency power
supply system

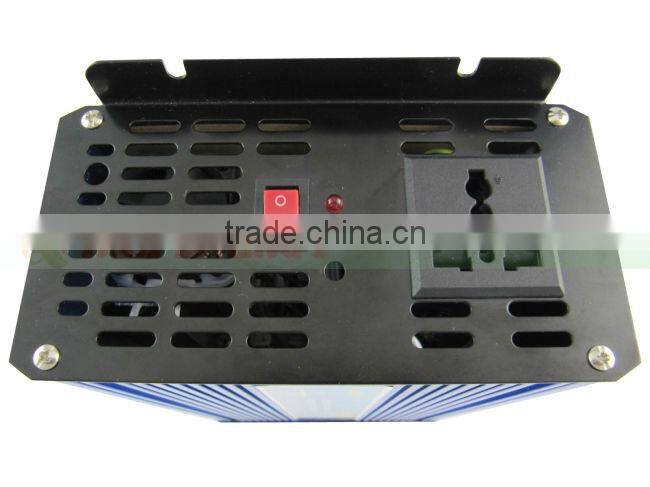

Socket design for different countries
