Home > Electrical & Electronics > Inverter > Power Inverter > 150w off Grid Pure Sine Wave Inverter. DC12V or 24V or 48V Input.

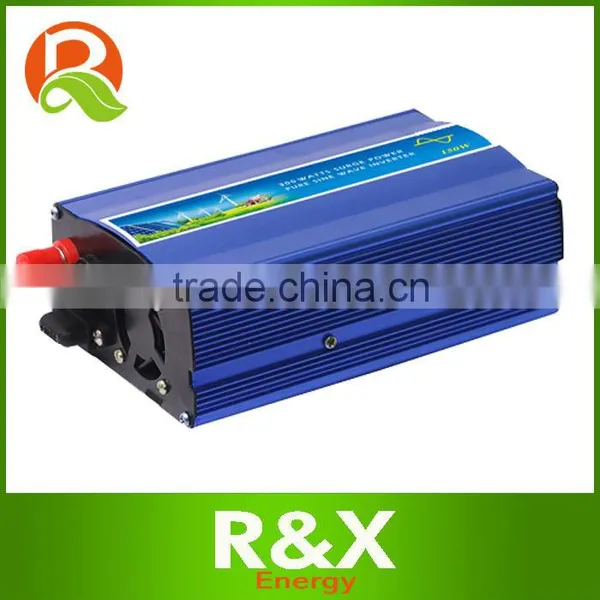

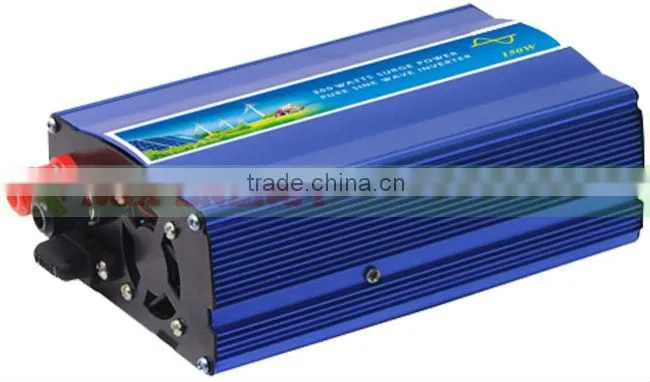

150w off Grid Pure Sine Wave Inverter. DC12V or 24V or 48V Input.

150w off Grid Pure Sine Wave Inverter. DC12V or 24V or 48V Input. thumbnail-1
150w off Grid Pure Sine Wave Inverter. DC12V or 24V or 48V Input. photo-1
US$ 40 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
R&X
Model Number:
RX-150-S
Contact Supplier Request Quote Chat Now
Nantong R&X Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENHEN/SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name R&X
Model Number RX-150-S
Output Power 101 - 200W
Output Type Single
Size 180mm*105mm*60mm
Weight 1kg
Input Voltage DC12V/24V
Output Voltage AC100-120V AC220-240V
Type DC/AC Inverters
Output Frequency 50Hz/60Hz

Specifications

150w off grid pure sine wave inverter
1.Input:12V/24V48V/110VDC
2.Output:100/110/120/220/230/240V AC
3.Pure sine wave

150w off grid pure sine wave inverter. DC12V or 24V or 48V input.







Sample Purchase online: Click here











Technical Data



Model

RX-150-S

Input

DC Voltage

12V,24V,48V

Voltage Range

10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC

No Load Current Draw

<0.5

Efficiency

> 85%

DC Connector

Cables With Clips or Car Adaptor

Output

AC Voltage

100/110/120VAC or 220/230/240 VAC

Continuous Power

150W

Surge Power

300W

Waveform

Pure Sine Wave

Frequency

50Hz or 60Hz

AC Regulation

3%

Protection

Low Voltage Alarm

10DC+/-0.5V or 20.5DC+/-1V or 44VDC+/-1V or 100VDC+/-1V

Low Voltage Shut Down

9.5DC+/-0.5V or 19.5DC+/-1V or 42VDC+/-1V or 96VDC+/-5V

Over Load

Shut Off Output

Over Voltage Shut Down

15.5V or 30.5V or 61.2V or 120V

Over Thermal

Shut Off Output Automatically

Fuses

Short Circuit

Environment

Working Temperature

Between -10 and +50

Working Humidity

20%-90%RH non-condensing

Storage Temperature

Between -30 and +70

Package

Machine Size(mm)

180X105X60

Packing Size(mm)

245X122X75

Net Weight(kg)

0.86

Gross Weight(kg)

1.0

Packing Mode

Carton

Other

Start

Soft Start

Cooling Ways

Intelligent Cooling Fan

















Description





1. This power inverter instantly convert low voltage DC power to high voltage AC household power.



2. High reliability and low failure rate by using the advanced Double-CPU single chip intellectual



control technology.



3. Pure sine wave output. Small, light and artistic, benefited from adopting the SMD pastern



 technology.



4. Cooling fan is intellectual controlled, and its working status is controlled by CPU, which



mostly increased its service life and helps to save the power consumption, improve work



efficiency and lower the working noise.



5. You can use many places. Such as Solar electric energy generation, Wind power generation,



Communication equipment, Industrial intellectual control system, Small sized emergency power



supply system










150w off grid pure sine wave inverter. DC12V or 24V or 48V input.

150w off grid pure sine wave inverter. DC12V or 24V or 48V input.150w off grid pure sine wave inverter. DC12V or 24V or 48V input.







Socket design for different countries



150w off grid pure sine wave inverter. DC12V or 24V or 48V input.
