Specifications
MC4 solar cable assembly1.TUV&UL certificated;
2.Auto-lock for solar cable connecting;
3.Widely used in the

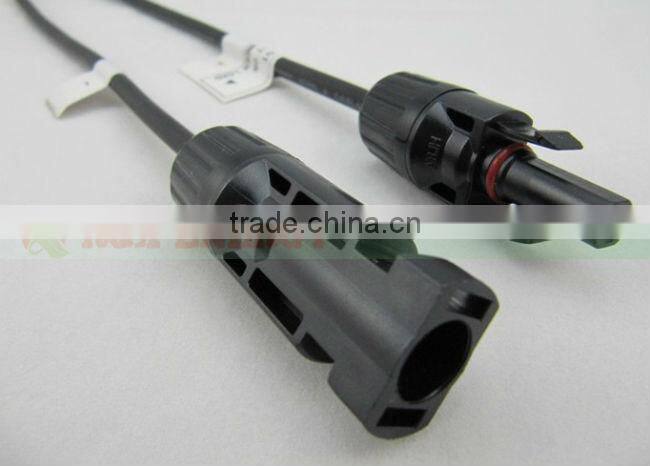

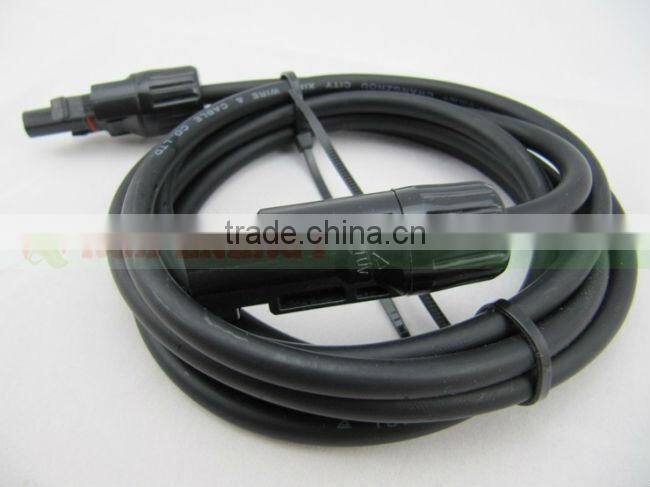

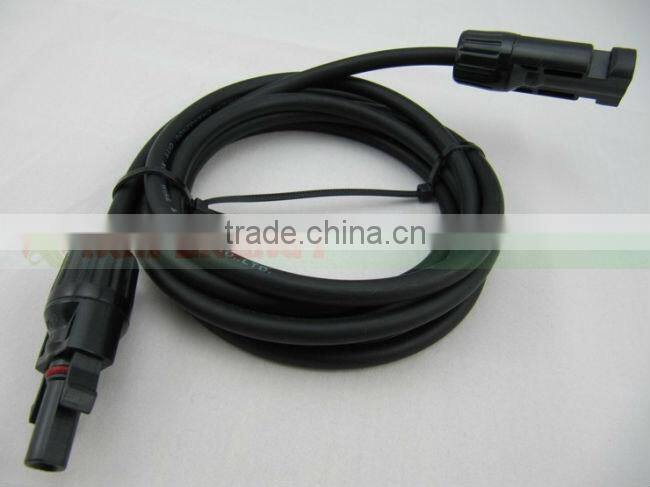

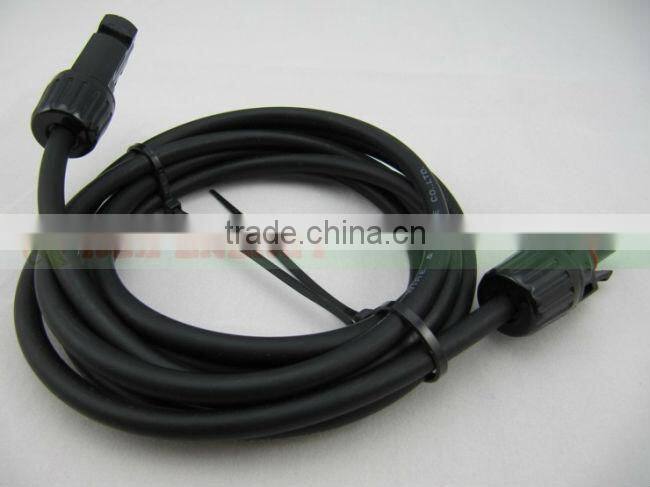

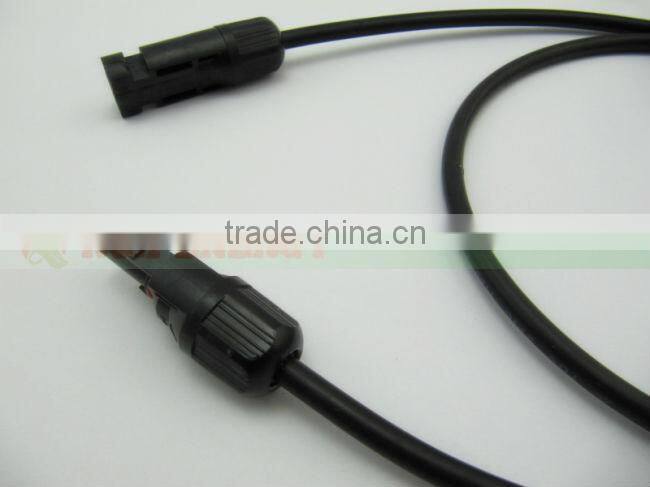

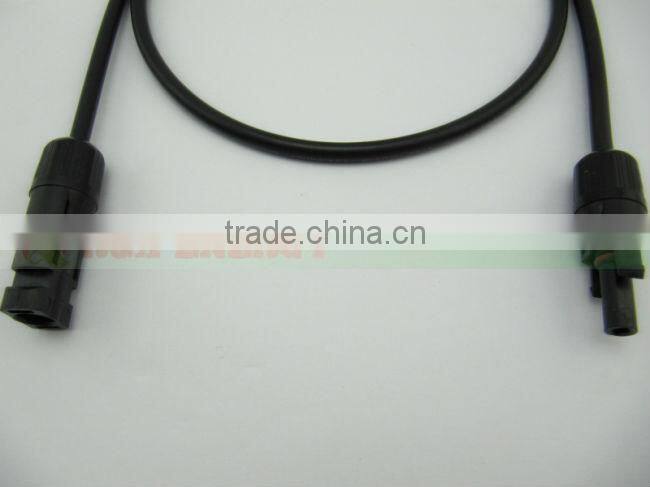

MC4 solar cable assembly with connector. TUV certification.
Sample Purchase online: Click here
Techincal Data
Rated Voltage (VDC) |
1000 |
Rated Impulse Voltage (V) |
8000 |
Rated Current (A) |
30A |
Pollution Degree (1/2/3/4) |
3 |
Overvoltage Category |
III |
Low Ambient Temperature (°C) |
-40°C |
Upper Ambient Temperature (°C) |
+90°C |
Enclosure Rating (RTI and Flammability Class) |
UL94-V0 |
Value Range of Cable Clamp |
5.5-6.3mm diameter for cable |
Rated Cross Section of Conductor |
4mm2 |
Degree of Protection (IP Code) |
IP67 |
Plug Power |
30N-80N |
Contact Material |
Copper |
Insulation Material |
PPO |
Authentication |
TUV |
Wire length |
Custom Length |
Drawing |
|
Description
1. Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
2. highly robustness,UV-Resistance,
3. Connector adopts touch and insertion of reed with inner-knob type.
4. Auto-lock equipment of male and female points enable connection more easy and reliable.
5. Popular figure suit most of field installation
6. Simple on-site processing
7. Accommodates PV cable with deferent insulation diameters
8. High current carrying capacity
Assembly Instructions
1. During self assembly, parts and tools other than those stated by TOP HENGDA are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
Assemble solar connector with cable
1. Push the crimped contact into the socket resp. Plug insulator until it engages. Pull lightly on the lead to check that the metail part has engaged.
2. Screw on the cable gland, hand-tight, with the tools PV-STX,tightening torque about:2.2 Nm.
3. Mount the connector together until they engage. Check correct engagement by pulling on the coupling
4. Compress the two snap-in springs by hand or with the PV STX tool and separate the coupling
