Energy-saving active lime rotary kiln for lime plant
1.energy-saving rotary kiln brief introduction
Rotary kiln is refer to rotate calcination kiln ,belongs to construction material equipment .Rotary kiln can be divided into cement kiln ,metallurgy chemical kiln and lime kiln according to different marerials .Cement kiln is used for making of Cement Clinker and there are dry and wet methods to make cement .Metallurgy chemical kiln is used in metallurgy industry and ironworks for lean iron ore .chromium ore and ferronickel ore calcination .Which is used for calcining of high aluminum vanadine ore in refractory material industry for calcining of calotte and aluminum hyd roxide in aluminum manufacturer for calcining of chrome sand ore and chrome powder ore in chemical plant .Lime kiln are used for calcine dolomite and active lime which is used in steel plant and ferroalloy factory .

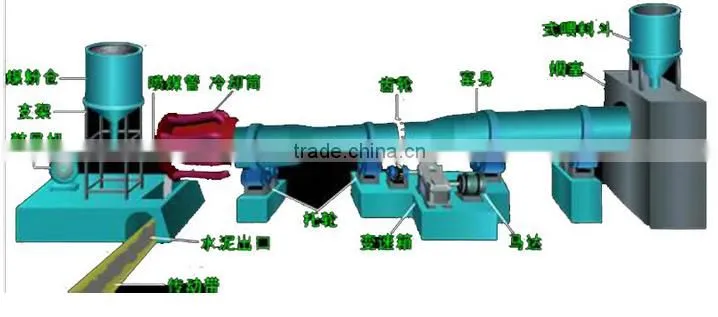

2.rotary lime kiln working principle
The rotary kiln barrel is made of rolled steel plates with firebricks mounted in the inner side of the barrel .At an angle of 3.5% with the horizontal line ,it is supported by three belting leathers on three supporting devices ,with a big ring gear fixed in barrel body .The turn of the barrel is made through motor-speed reducer-pinion as well as the teeth joining of gearwheel and pinion .
Materials enter the end of the rotary kiln (the high part of the barrel ).Because of the slant of the barrel and the slow turn ,the materials turn around a circle on one hand and move toward the lower end on the other hand ,being burnt into clinker by preheat decomposition,burning ,cooling and other process engineering ,let out through the lower end of the barrel and go into the cooling machine
The fuel is sprayed into the kiln by the spray coal device of the kiln head .The exhaust gas after burn is blowed out by air-exhausting machine of the kiln end and go into the atmosphere through the chimney after heat exchange with materials .
3.rotary kiln for lime plant advantages
The rotary kiln has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation, and convenient and reliable operation; Therefore, the consumption of the coal and the electricity is lower than the common ones. While the production capacity is higher than 10-15%.

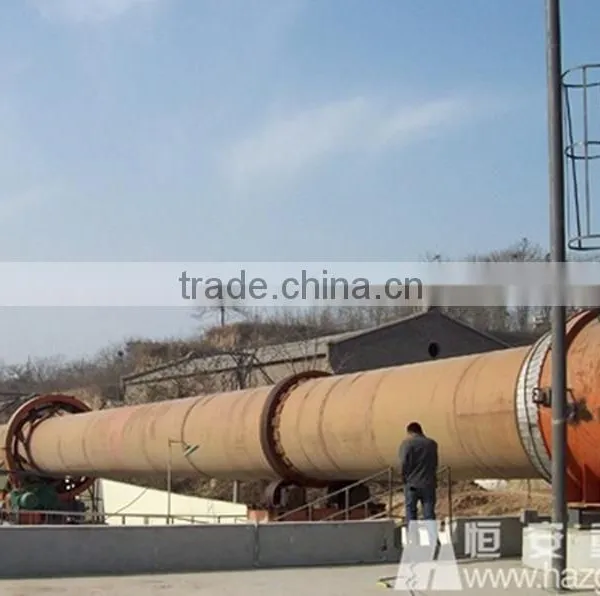

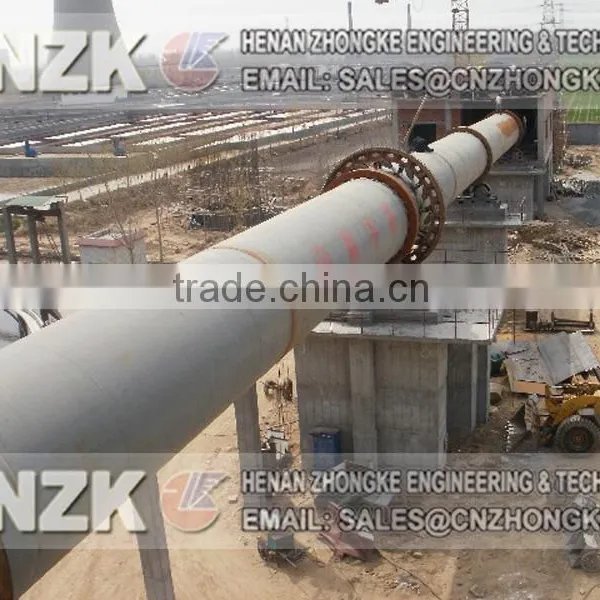

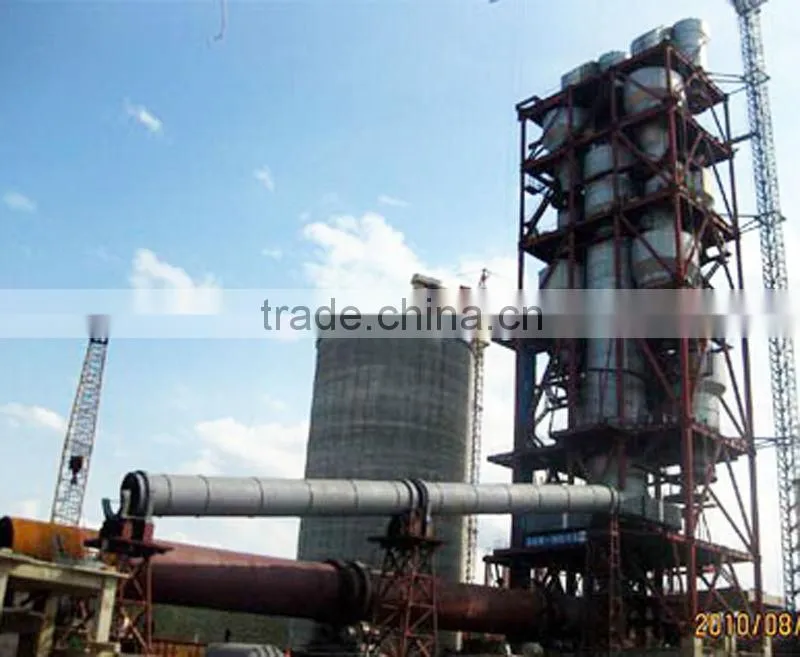

4.clients'working sites

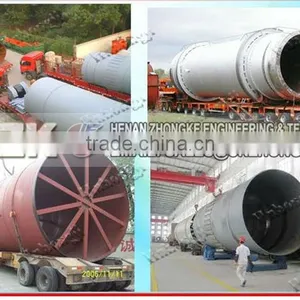

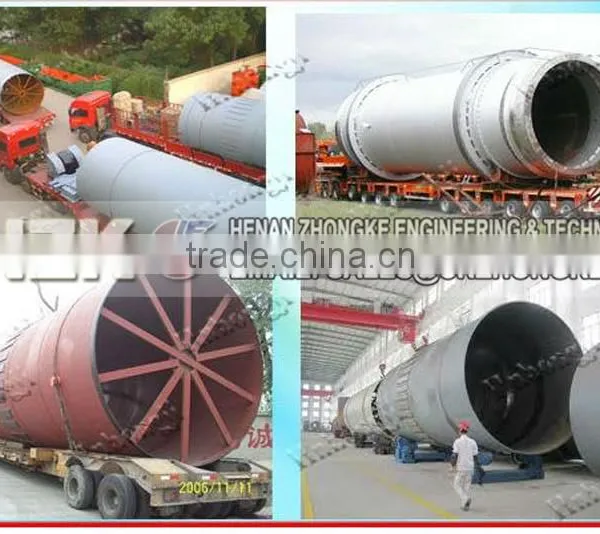

Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by zhongke
3.Load container, Spear Parts in wooden case.

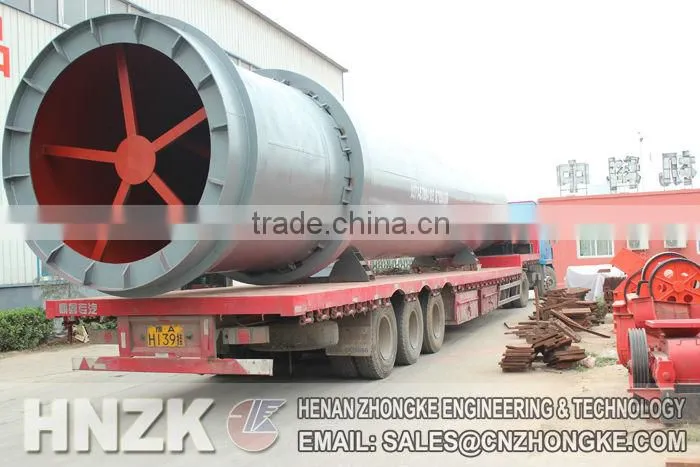

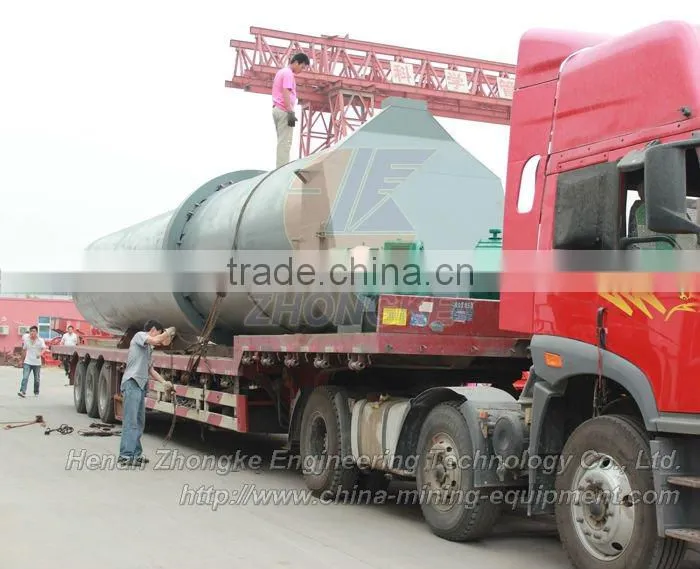

Transportation:
1. By sea Freight;
2. Shanghai, Tianjin, Qingdao
3. We will remind you before boat arrival
1. Pre-sale services:
1. Select proper equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Arrange for visiting our factory, assist them to handle relative procedure, such as visa.
2. Services during the sale:
1. Make sure goods prepared within delivery time;
2. Pre-check and accept products ahead of delivery;
3. Prepare documents required to help customer pass customs clearance.
4. Help clients to make Project evaluation and feasibility analysis and draft solving plans.
3. After-sale services:
1. Assist clients to prepare for the first construction scheme;
2. Install, debug and examine the equipment;
3. Train technical personnel the first-line operators;
4. Provide technical exchanging
5. Offer spare parts at a best price for long term.
About us:
Henan Zhongke Engineering & Technology Co., Ltd. is specialized in heavy equipment like various crushers, stone jaw crusher machine, magnetic separators, mining machines, bricks and blocks machines, cement production line, AAC block line, etc., which is located in the middle of China. Our competitive price, high quality products and excellent after- sales service had gain us good reputation in this
field.
Qualification & honour:
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
