Specifications
synchromesh transmissionS6-90 gear box
truck and bus parts
MOQ: 1 set
ISO9001:2008, BV certificate, TUV certificate

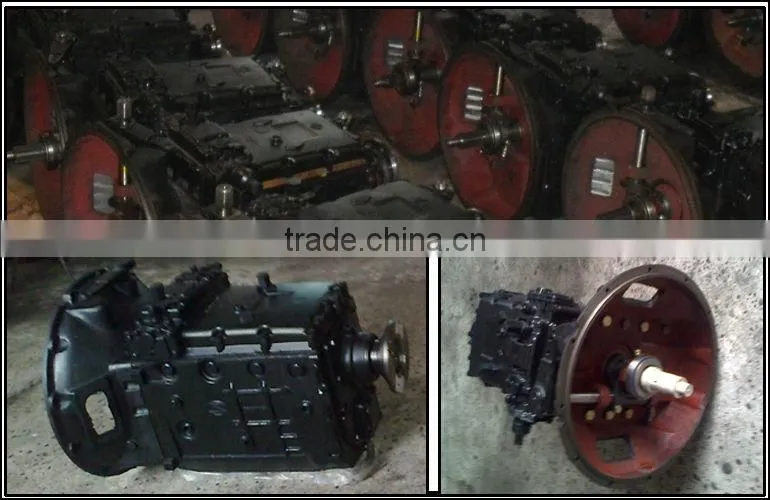

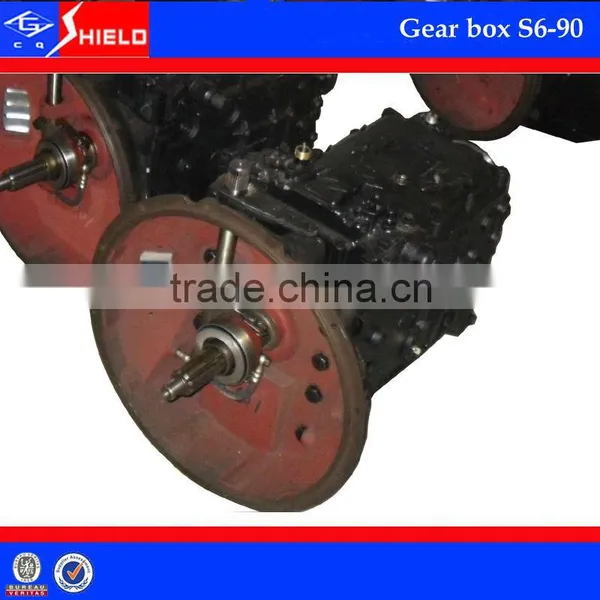

ZF Synchromesh Transmission Gearbox S6-90 Assembly
| S6-90 | ||||||||
| Model |
Input torque N.m |
Ratio | ||||||
| 1st | 2nd | 3rd | 4th | 5th | 6th | Reverse | ||
| Direct | 850 | 9.01 | 5.24 | 3.22 | 2.20 | 1.50 | 1.00 | 8.30 |
| Direct | 900 | 7.03 | 4.09 | 2.45 | 1.50 | 1.00 | 0.81 | 6.48 |
| Overdrive | 1150 | 6.98 | 4.06 | 2.74 | 1.89 | 1.31 | 1.00 | 6.43 |
| Overdrive | 1200 | 6.37 | 3.71 | 2.22 | 1.36 | 1.00 | 0.74 | 5.87 |
| Speedometer ratio | 1.545/2.0 | |||||||
| Total Weight | around 325kg (packaged weight, with clutch housing) | |||||||
| Oil capacity | horizontal installation 13.0 L,vertical installation 10.0 L | |||||||
Packing
*customized packaging
*wooden case 1 set/ case
Our field:
1. 5 speed gearbox assembly & spare parts: S5-70, S5-80, S5-120
2. 6 speed gearbox assembly & spare parts: S6-80, S6-90, AK6-90, S6-100, S6-120, S6-150, S6-160
3. 9 speed gearbox assembly & spare parts: 5S-150GP, 5S-111GP, 4S130GP
4. 16 speed gearbox auto parts: 16S109, 16S150, 16S151, 16S181, 16S220, 16S221, 16S251
5. Mercedes-Benz G60, G85 spare parts
Company information :
Chongqing Shield Gear & Transmission Co., Ltd (hereafter called CQSD) was established in 2005, lying in the Beibei Zone of Chongqing city. CQSD is specilized in producing transmission gearbox and its related spare parts for the heavy-duty truck and luxurious bus in China.
CQSD has strong technical force, advanced technology and hundreds of equipments and inspecting instruments which ensure our products high precision and stability. On the precondition of satisfying the domestic auxiliary market, we are reinforcing the cooperation with the foreign customers, including OEM exporting, processing with supplied drawings, processing according to supplied samples. CQSD adapts a Quality Management System (QMS) in accordance to the strict ISO9001:2000 guideline and now our products have won a good reputation at home and abroad.
The leading products are as follows: synchronizer, gearbox housing, gear and shaft, which are applicable to the 5S-150GP, 5S-111GP, QJ805, QJ1506, S6-90 etc. CQSD gets a rapid development in the past several years, having been one of the leading manufacturers for the heavy-duty automotive transmission in Chongqing.
CQSD devotes to persuing “ leading enterprise in the transmission industry with 100-years’ development” and insists on the principle of puting quality first and treating the customers as supremacy. CQSD wishes to sincerely cooperate with domestic and foreign customers, achieving a brilliant future together.
View of our office:
Our factory:
Factory Equipment:
Clients:
Certificates:
Questions&Reply:
1. Do you have a need for products other than ZF?
If yes, we have parts for Mercedes, Eaton Fuller, MAN, DAF, etc.
2. Are your products used worldwide?
Yes, we supply US, South America, Asia, Middle East, Southeast Asia. Most ZF parts are universal in application.
3. Can you apply my logo or part number on the parts?
Yes, we can. Please provide sample or drawing.
4. Are you able to produce parts according to my sample or drawing?
Yes, we have engineers and technicians to make samples.
5. What type of packaging do you provide?
Standard packaging is plain, cardboard box and anti-rust wrapping.
We can provide special packaging and logos per your specifications.
6. Who are we?
We are Chongqing Shield Gear & Transmission Co., Ltd., a worldwide distributor and manufacturer since 2005.
7. We can ship parts from any port in China.
