Frequency Inverter 1.5 kw AC MOTOR DRIVE Looking for Distributor in Pakistan

Frecon Electric (Shenzhen) Co., Ltd.
Frequency Inverter 1.5 kw AC MOTOR DRIVE Looking for Distributor in Pakistan thumbnail-1
Frequency Inverter 1.5 kw AC MOTOR DRIVE Looking for Distributor in Pakistan thumbnail-2
Frequency Inverter 1.5 kw AC MOTOR DRIVE Looking for Distributor in Pakistan photo-1
Frequency Inverter 1.5 kw AC MOTOR DRIVE Looking for Distributor in Pakistan photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FRECON
Model Number:
FR100
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FRECON
Model Number FR100
Output Power Other, 0.18-4kw
Output Type Triple
Size from 120mm(D)*95mm(W)*162mm(H)
Weight 1.1kg~1.5kg
Input Voltage 0~380V
Output Voltage 0~Input Voltage
Type Other, AC-DC-AC
Output Frequency 0.00~600.00Hz
Output Current 1.6~9.5A



Product Description

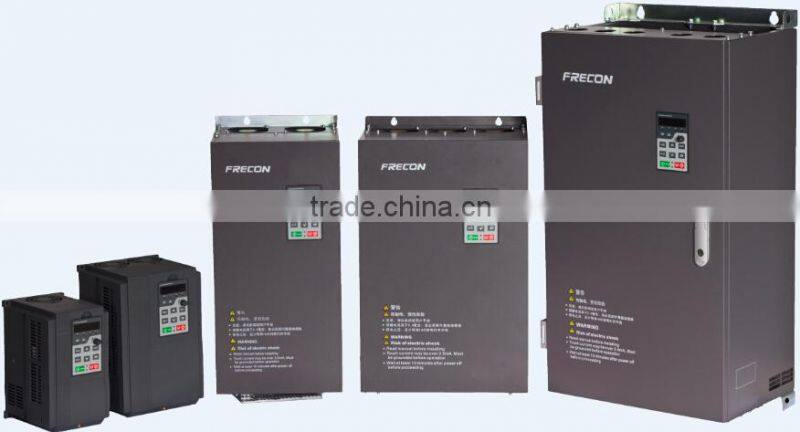

FR100 Series sensorless vector control frequency inverter ac drive 220v/380v


I/O Features

Input Voltage Range
 Single-Phase 220V(-15%~+30%)
3-phase 220 V (-15%~+30%)
3-phase 380 V (-15%~+30%)

Input Frequency Range

50Hz/60Hz,tolerance±5%

Output Voltage Range

0~rated Input voltage

Output Frequency Range

0.00~600.00 Hz,unit0.01Hz
I/O Terminals

Input Terminals

5 Digital Inputs, 1 high speed pulse;
 2 Analog Inputs, VCI:-10V~10V, CCI2:0~10V or 0~20mA

Output Terminals

1-way switch output terminal, which supports a maximum road speed 100kHz pulse output.
1 relay output terminals.
1 analog output terminal, and optional voltage and current.

Communication Terminals

RS485 communication interface is optional, adopt Modbus-RTU communication mode.
Control Function

Control Mode

V/f control
Sensor-less vector control 1
Speed Adjusting Range

1:50 (V/f control)
1:100 (sensor-less vector control 1)
Overload Capacity

150% Rated Current 60s,180% Rated Current 10s,200% Rated Current 1s
Frequency
given

digital setting, keyboard potentiometer setting, analog
Voltage, given analog current reference pulse is given,
the serial port is given, multi-speed given, PLC is given,
the process PI D reference.
Other Functions
Traverse Control Function
PID Control Function
Simple PLC,Multi-Steps Speed Control Function: 16 steps speed can be set.
None-Stop when instantaneous power off.
Speed Trace Function: Smoothly start the running motor.
Automatic Voltage Regulation Functin (AVR):
Up to 23 fault protections over current, over voltage, under voltage, over temperature, phase failure, overload etc.
Man-machine Interface

LED Display

Can display setting frequency, output frequency, output voltage, output current etc.
Multi-function Key-press

The QUICK/JOG key-press can be used as multi-function key-press.
Environmental Constraint

Temperature

-10°C~+40°C
Humidity

5~95%, no condensation
Altitude

0~2000m
De-rate 1%for every 100m when the altitude is above 1000 meters
Vibration

Less than 5.9m/s2 (0.6g)
Storage
temperature		-20°C~+70°C
