Specifications
transmission input shaft1. ZF Technology
2. Match type:ZF gearbox for Howo,Benz, Mercedes Benz.
3. OEM parts
Specifications:

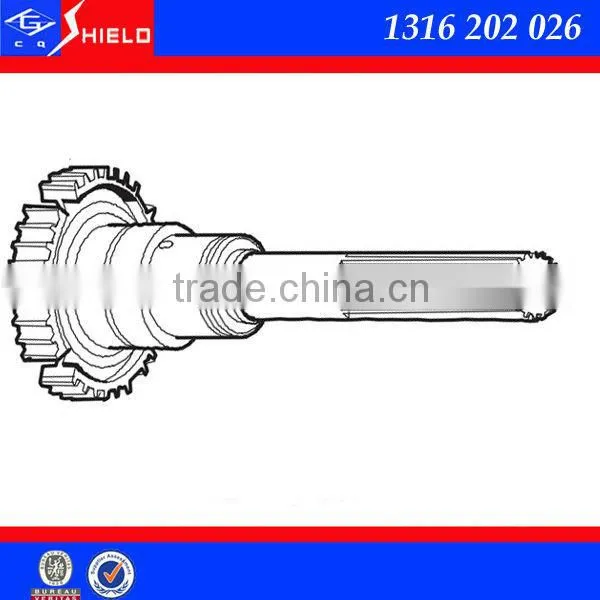

- Part Name: shaft
- Part No.: 1316 202 026
- Applicable gearbox: 16S-181, 16S-221
- Applicable vehicle: Yutong, Golden Dragon, Volvo bus, Mercedes-Benz
- Material: 20CrMnTi
Additional content:
20CrMnTi (carburized steel / carburizing steel) | ||||
C, % |
0.17~0.23 |
Tensile strength σb (Mpa) |
≥1080(110) |
|
Si, % |
0.17~0.37 |
Yield strength σs (Mpa) |
≥835(85) |
|
Mn, % |
0.80~1.10 |
Elongation δ5 (%) |
≥10 |
|
Cr, % |
1.00~1.30 |
Reduction of area ψ (%) |
≥45 |
|
S (allowable residue content ), % |
≤0.035 |
Impact toughness αkv (j/cm2) |
≥69(7) |
|
P (allowable residue content ), % |
≤0.035 |
Hardness HB
|
≤217 |
|
Cu (allowable residue content ), % |
≤0.030 |
Density kg/m3
|
7.8×103 |
|
This is good performance carburized steel, high harden-ability, After carburizing with a hard, wear resistant surface and a tough core part. Has a high low temperature impact toughness.
Products Show:
Packing details:
Normally, we packing our goods with wooden cases. If you have special requirements, please mention that in advance. Theree main packing methond:
- Domestic packing for Chinese market.
- Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets).
- Customized package.
Our field:
- 5 speed gearbox assembly & spare parts: S5-50, S5-60, S5-70, S5-80, S5-120
- 6 speed gearbox assembly & spare parts: S6-80, S6-90, AK6-90, S6-100, S6-120, S6-150, S6-160
- 9 speed gearbox assembly & spare parts: 5S-150GP, 5S-111GP
- 16 speed gearbox auto parts: 16S109, 16S150, 16S151, 16S181, 16S220, 16S221, 16S251
- Mercedes-Benz G60, G85 auto parts
You may not see me from outside; but i am always holding the speed!
Certificate:
View of our factory:

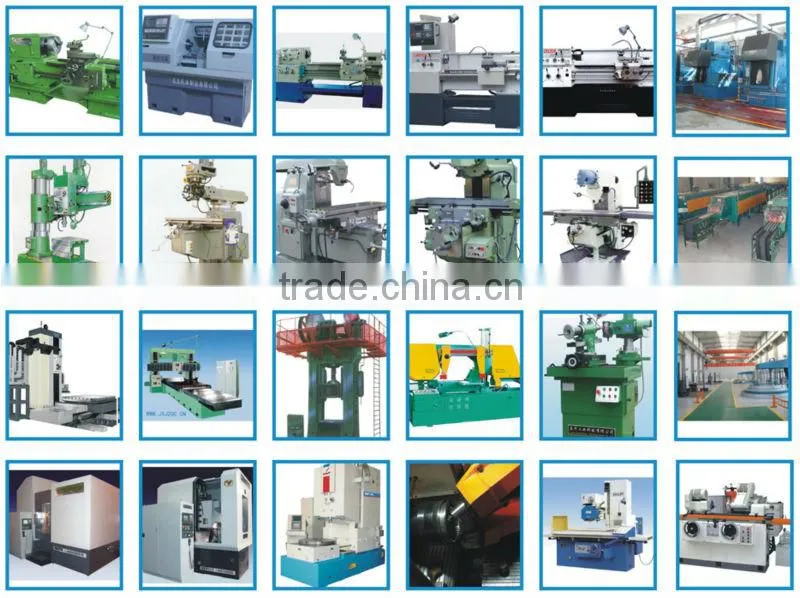

Machinery:
Questions&Reply:
lAre your products same as ZF?
Our products are equal to ZF. That's to say, our size, weight, function, structure, and use are all the same as ZF.
lDo you have other products except ZF?
yes, we also have some parts for Mercedes-bez truck transmission.
lAre your products only suitable for Chinese auto ?
Its function and applicability are same as ZF. Suitable for not only Chinese auto, but also European auto.
lCan you stamp my logo or number on the product?
yes, we can produce according to your requirement.
lCan you produce according to my sample or drawing?
yes, we can.
lCan you print any package according to my requirement?
yes, we can.
Trade Terms:
- Quotation term: FOB, CIF, C&F, EXW
- Port: any port in China
- Payment term: T/T (Telegraphic Transfer), L/C, D/A, D/P, Western Union, Money Gram, Paypal, Cash etc.
Company Chart:
