FTTH 1GE ONU
Description

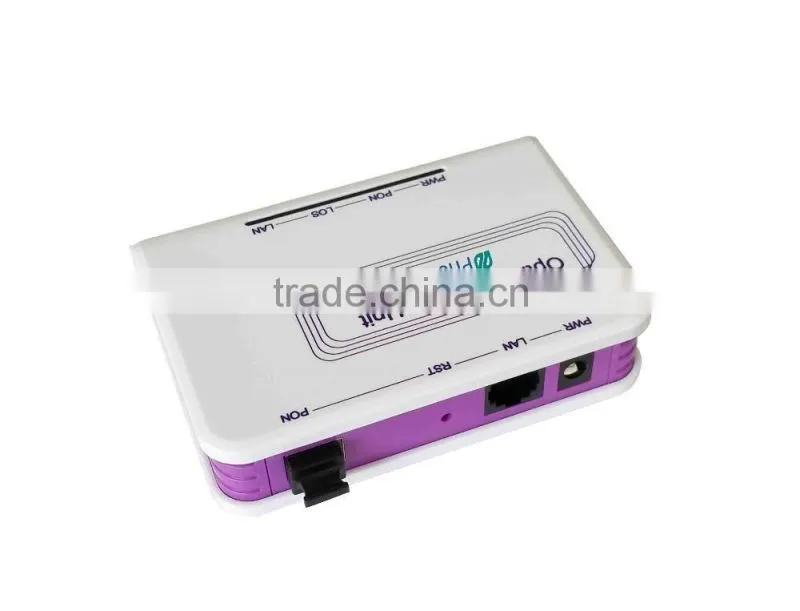

EPON ONU PTF1051 is a cost effective integrated device with one 10/100/1000Mbps PON port interface, specially designed for FTTH and FTTB solution. It support 1000Base-PX10/PX20 standard with 1:64 max- optical splitting ratio and 20km distance, and provide 1uplink GE PON port. PTF1051 ONU with OLT could realize flexible network structure and maintenance and provide total FTTx solutions. It adopts single fiber WDM technology with downlink wavelength 1490nm and uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.
Hardware interface
- 1 GEPON interface
- 1 Ethernet LAN port(10/100 /1000Base-Tauto-sensing)
- 1 Internal Console Interface.
- 1 Power Supply port
- LED
Ethernet Port
- Support port-based rate limitation and bandwidth control;
- In compliant with IEEE802.3ah Standard
- Up to 20KM transmission Distance
- Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery/Link detection/remote upgrade of software;
- Support VLAN division and user separation to avoid broadcast storm;
- Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.
- Support power-off alarm function ,easy for link problem detection
- Support broadcasting storm resistance function
- Support port isolation between different ports
- Support ACL and SNMP to configure data packet filter flexibly
- Support EMS management and on line upgrade
Physical Features
Dimension: 110mm(L) x 90mm(W) x 27mm (H)
Weight: 0.20KG
Working Temperature: -5℃~50℃;
Storage Temperature: -40℃~80℃;
Working Humidity: 10%~90%;
Power Supply: 220V or 110V AC,
Power Consumption :<3W
LED:Power LED,Reset LED,Register LED,PON LED,LINK LED
Operation temperature: -5℃~+45℃
Working humidity :10%~90%(no condensing)
