Help CenterGalvanized Steel Corrugated Plate/Color Coated Steel Corrugated Plate
Related Products
-
Weldments Unit Components, Bracket Axle, Drive Shaft Housing MachiningNegotiableMOQ: 1 Ton -
Geothermal Power Generation Weldments, Drive Shaft Housing Machining, Bracket AxleNegotiableMOQ: 1 Ton
-
Geothermal Power Generation, Drive System Base Bracket Axle WeldmentsNegotiableMOQ: 1 Ton
-
Cold Rolled Steel Plate/Coil/Strip/Sheet Carbon Steel/Alloy SteelNegotiableMOQ: 20 Tons
-
High Tensile Armour Applied for Sea Oil Flxible PipesNegotiableMOQ: 10 Metric Tons

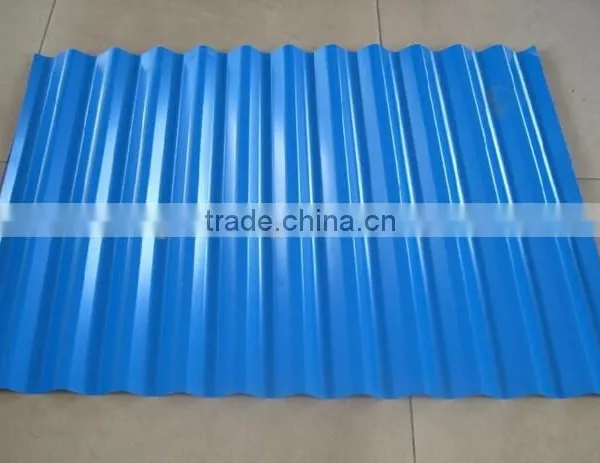

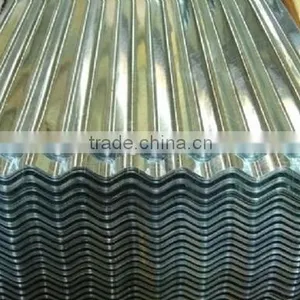

Corrugated plate in galvanized or collor coated,was produced though the cold formed process to be different shapes.it was widly applied in construction,wearhouse,etc.With the high strength and lightly weight.very suitatble to afbrication.
| Specification | |
| 1.Thickness 0.2-1.5mm | |
| 2.Width:600-1250mm | |
| 3.Zinc weight:40-275g/m2 |
| Galvanized corrugated sheets | ||
| 1 | Material | JIS G3302 SGCH(full hard);Zinc coating:60-120g/m2 |
| 2 | Physical properties | Tensile strength:220-550Mpa; |
| Yield strength:350Mpa; | ||
| Elongation: 10%-20%;Hardness>50 | ||
| 3 | Thickness | 0.13mm-0.8mm |
| 4 | Width after corrugated | 650mm-1150mm;Regular width:800mm, 840mm, 900mm |
| 5 | Length | 1600mm-4000mm or according to customers' requests |
| 6 | Wave | Wave height:18mm(+/-2)mm. |
| Wave distance:76.2mm (+/-3)mm. | ||
| 7 | Application | 1.Exterior decoration of buildings: Roof and wallboards of industrial, commercial,residential and public facilities. |
| 2.Interior decoration of buildings: Wallboards, ceiling boards,partition boards, fireproof doors | ||
| 3.Building accessories: Window panels, signboards. | ||
| 4.Home appliances: Oil/gas boilers, rice buckets, portable gas burners. | ||
| 8 | Advantages | according to customers'requirements. |
| 2.manufacture under complete quality control system--ISO9001. | ||
| 3.it is light,easy to be installed. | ||
| 4.many colors available,with elegant and noble looking.it is widely used in factories,hotels,exhibitions. | ||
| 5.eco-friendly material:can be uesd several times and can be recycled. | ||
| 6.shorter construction period,longer using times. | ||
Tianjin Lin Feng Trading Co.,Ltd. is a wholly-owned subsidiary Hengxing group, assume the Group cold-rolled zinc-coated plate and strips, hot-dip galvanized steel products’ international import and export trade, the company was founded in 2003, the registered capital of 21.5 million, was approved by the relevant departments of the State foreign trade enterprise with independent import and export rights.
Since the company was founded with a unique resource advantage, manufacturing and financial strength of the Group strong, dedicated to thousands of customers at home and abroad to provide procurement of raw materials, special-shaped steel structure production, processing one-stop service of hot-dip galvanizing. Company pin steel 90% above and ISO9002 standards of production according to the international advanced level and through third-party certification. The company has trade cooperation with more than 30 countries and regions in the world, with more than 200 number of direct supply of large and medium enterprises formed a close relationship, product quality and after-sales service enjoys a high reputation at home and abroad. Import and Export Company under the steel Marketing Department, equipment technology Department, the Department of transportation, the Department of management and other departments. In Tianjin, Shanghai, Guangzhou, we have our own warehouses and processing centers. In Egypt, Czech Republic, we have 2 overseas offices and warehouse processing center.
The company has developed into a domestic trade, import and export trade in one integrated modern economic and trade company, as one of the main channel of the group product marketing, our goal is the continuous improvement of production and management capacity through our group and development and optimize the upstream and downstream industry chain, reducing procurement costs, ultimately benefit the customers, achieve win-win, to create a better future.
Other Products We Do
l hot rolled coil/plate
l cold rolled coil/plate
l galvanized galvalume coil
l PPGI/PPGL
l Corrugated sheet (roof sheet, wall sheet, decking sheet )
l steel pipes ( galvanized, seamless, welded pipe )
l profiled bars (H beam/ I beam/ Angle/ Channel/)
l steel structure warehouse
l steel products processing
l hot dip galvanized brackets
l round irrigation equipment
l field master linear irrigation equipment
l side roll sprinkler
l reel sprinkling irrigation equipment
l sprinkling irrigation machinery
l fixed and transportable sprinkler
l drip irrigation micro-spray series
Our advantages:
1, System Advantage
Private nature, independent operating mechanism, international market distribution, decided to respond quickly to market and customer requirements, flexible and efficient.
2, Location Advantage
Company is located in the center of China's iron and steel industry, iron and steel resources around rich, air, land and sea transportation is convenient. The warehouse processing centers located in Shanghai, Guangzhou, Egypt, and Czech Republic are close to the market demand.
3, Capital Advantage
Hengxing group as China's top 500 enterprises in the manufacturing sector, output value reached more than 20 billion Yuan, the subordinate autonomous microcredit company, company of ample liquidity in good financial standing, full protection of flexible international trade settlement.
4, Resource Advantage
Autonomous manufacturing group cover iron and steel, machining, surface treatment of metals, equipment manufacturing, warehousing and logistics, finance, real estate resources, achieving one-stop resource for supply chain needs of customers.
5,We have our self-runned:
- welding factory-Vodar
- galvanized factory - Heng Xingtai
- forming factory - Jieao
1. Quotation:
We always provide the best price to our clients ASAP.
2. Samples:
When details are confirmed, we can express the samples to our clients without charges.
3. Meetings:
When clients come to China, we are glad to take them to visit our company and mill.
4. After-sales Service
To provide customers with the most satisfactory products and after-sales services.
