12hp Power Tiller, Hand Tractor, Walking Tractor With Rotary Cultivator

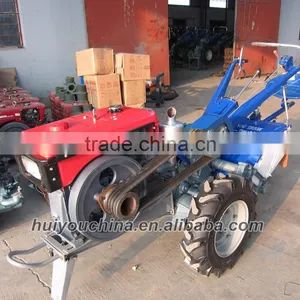

12hp Power Tiller, Hand Tractor, Walking Tractor With Rotary Cultivator thumbnail-1
12hp Power Tiller, Hand Tractor, Walking Tractor With Rotary Cultivator thumbnail-2
12hp Power Tiller, Hand Tractor, Walking Tractor With Rotary Cultivator thumbnail-3
12hp Power Tiller, Hand Tractor, Walking Tractor With Rotary Cultivator photo-1

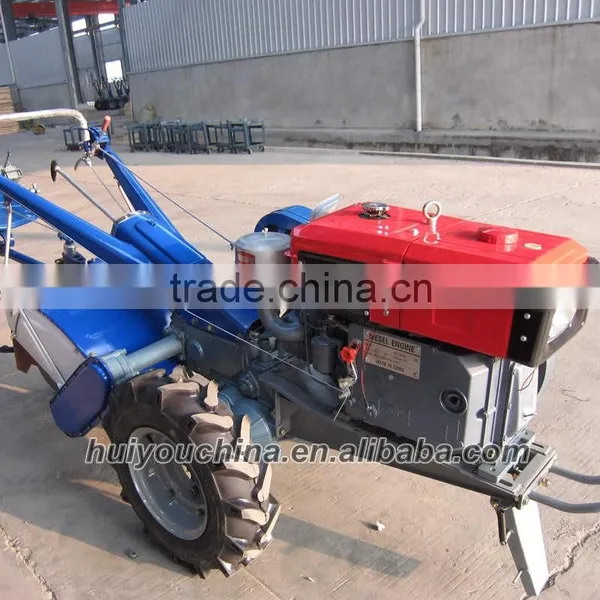

12hp Power Tiller, Hand Tractor, Walking Tractor With Rotary Cultivator photo-2

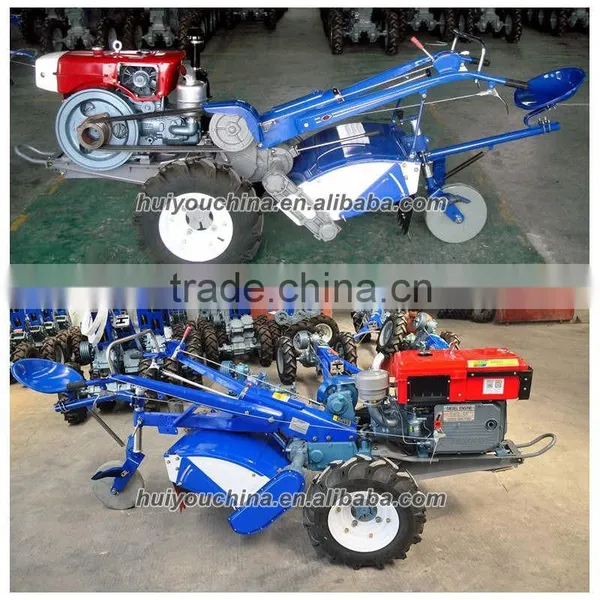

12hp Power Tiller, Hand Tractor, Walking Tractor With Rotary Cultivator photo-3
US$ 800 - 1,100 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Yancheng Dayang Farm Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 8.9kw
Certificate Other, SGS;ISO9002
Brand Name Huiyou or OEM
Model Number DF-12/12L
Place of Origin Jiangsu, China

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator



Dong Feng  Walking Tractor / Power Tiller

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator

12 hp / 15 hp / 18 hp / 20 hp

HUIYOU   Brand





Product Description

ABOUT US:



With 30 years manufacturing history and 10 years exporting history, we have become a seasoned manufacturer and trader. Our power tillers/walking tractors have best quality and performance.

Now our clients come from different countries all around the world. Due to different market environment, we have the ability to provide OEM production. No matter rainy climate or dry climate, paddy field or hard field, our power tiller/walking tractor can work very well.

Welcome you to join us and we will do our best to make you satisfied.

12hp power tiller, walking tractor, hand tractor

2. Main descriptions:

12hp / 15hp / 18hp / 20hp power tiller

Model:

DF-12

DF-12L

DF-15

DF-15L

DF-18

DF-18L

DF-20

DF-20L

Engine:

Model:

ZS195

ZS195NL

ZS1100

ZS1100NL

ZS1105

ZS1105NL

ZH1110

ZS1110NL

Type:

1-cylinder, Horizontal, 4-cycle

Combustion system:

Direct Inject

Bore × Stroke:

95×115mm

100×115mm

105×115mm

110×115mm

Rated output

12hp

15hp

18hp

20hp

Max. output

14hp

17hp

20hp

22hp

Cooling system:

Evaporative / Radiator (as your choice)

Starting method:

Hand crank / Electric start (as your choice)

Overall dimension:

2680×960×1250 mm

Wheel tread:

800, 740, 640, 580 mm

Tire:

6.00 – 12 rubber tire

Ground clearance:

182 mm

Clutch type:

Two-disc, constant-contact, friction

Gear &

Speed:

6 forward:

1.4 / 2.5 / 4.1 / 5.3 / 9.4 / 15.3 km/h

1.54 / 2.75 / 4.51 / 5.83 / 10.34 / 16.83 km/h

2 reverse:

1.1 / 3.8 km/h

1.2 / 4.18 km/h

Rotary Cultivator:

Model:

1GS9L-60

Tilling width:

600 mm

Blade number:

18 pcs

Net Weight:

500 kg

505 kg

515 kg

525 kg

Packing method:

Wooden case / Veneer case / Nude (ship by SKD)

Packing Size:

1.16×1.10×1.10 m

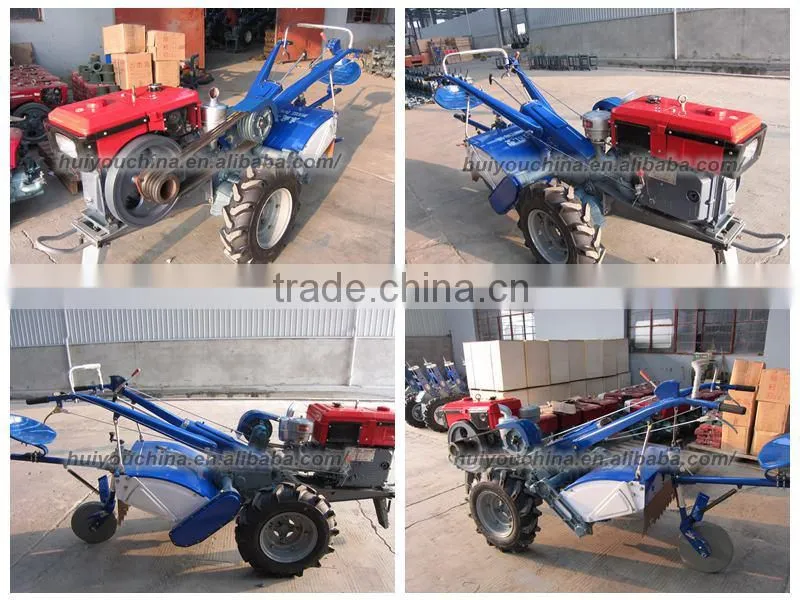

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator





Standard configuration (packing list):



1. Diesel engine and V-belt

2. DF type chassis

3. 1GS9L-60 Rotary Cultivator/Tiller with seat assembly



Optional implements: radiator cooling; motor start; different accessories



1. Evaporative cooling system (basic model)

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator

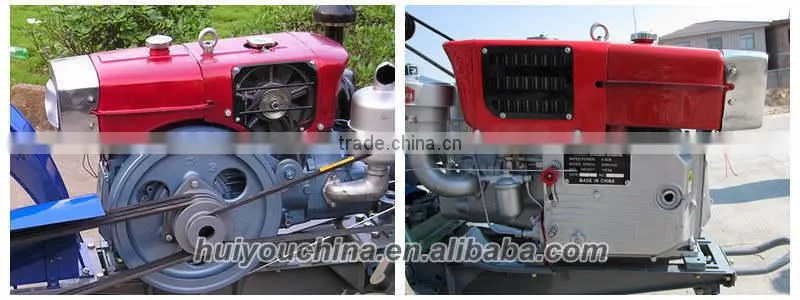

2. Radiator cooling system

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator

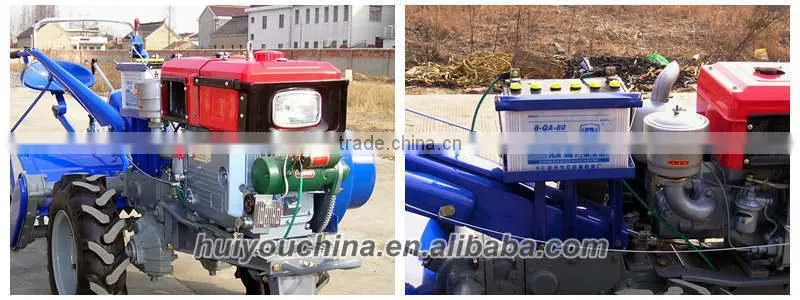

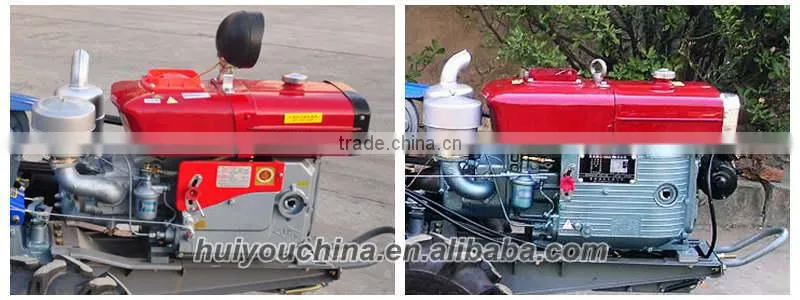

3. Electric start model (motor&battery):

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator

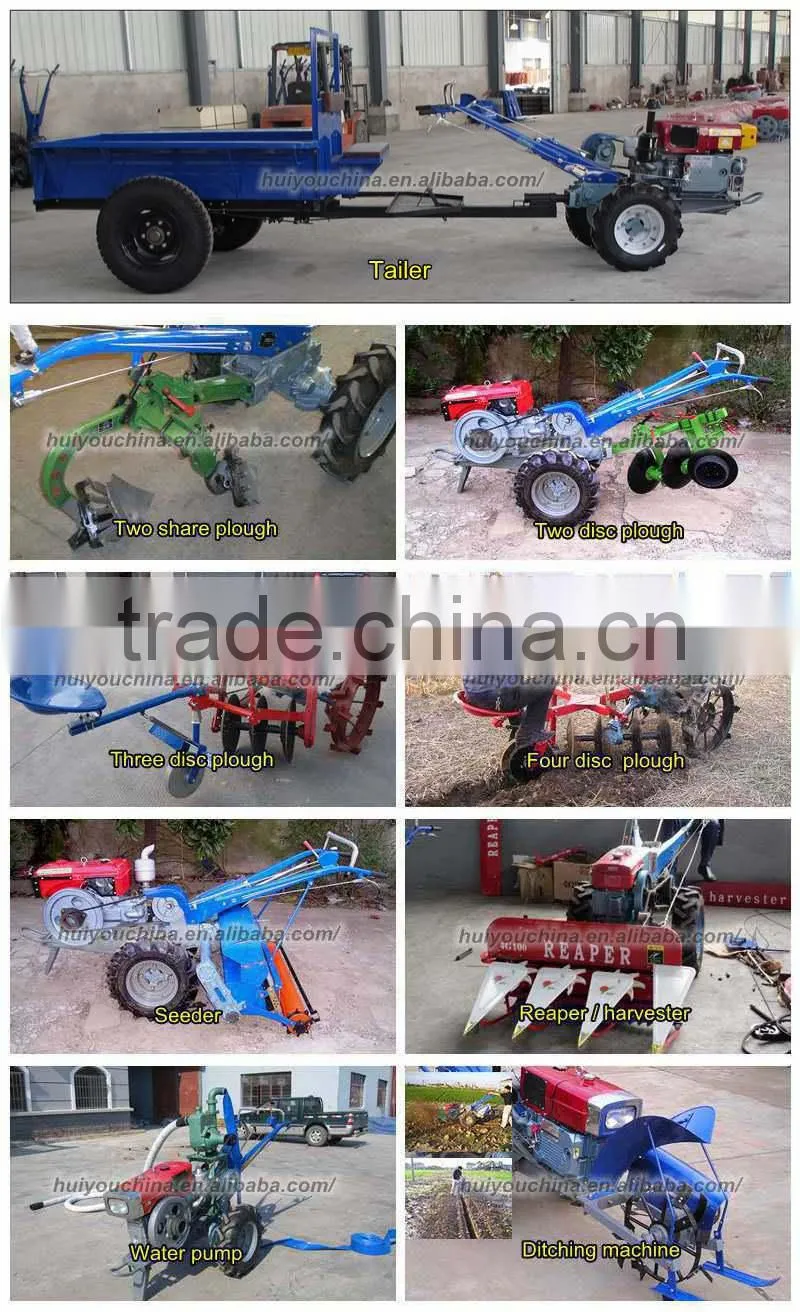

4.Optional Accessories of Tractor

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator

12hp power tiller, walking tractor, hand tractor

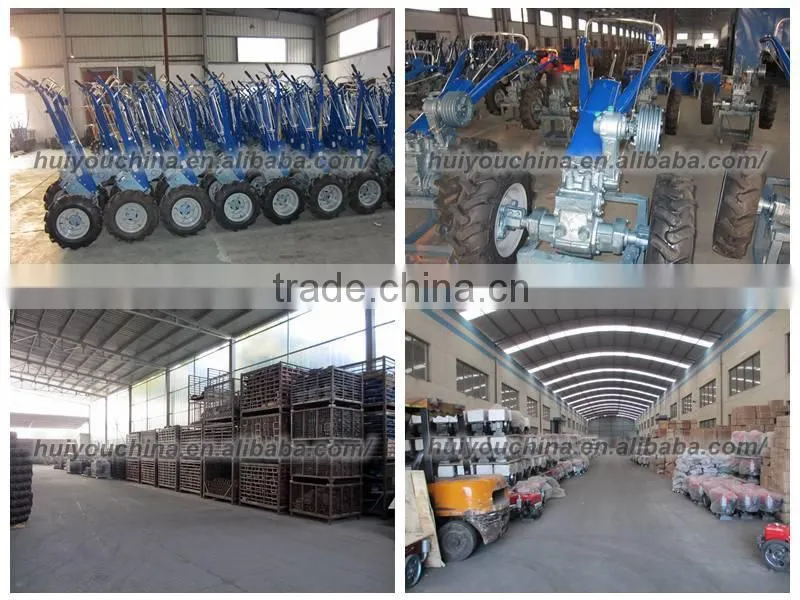

Company Information



12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator

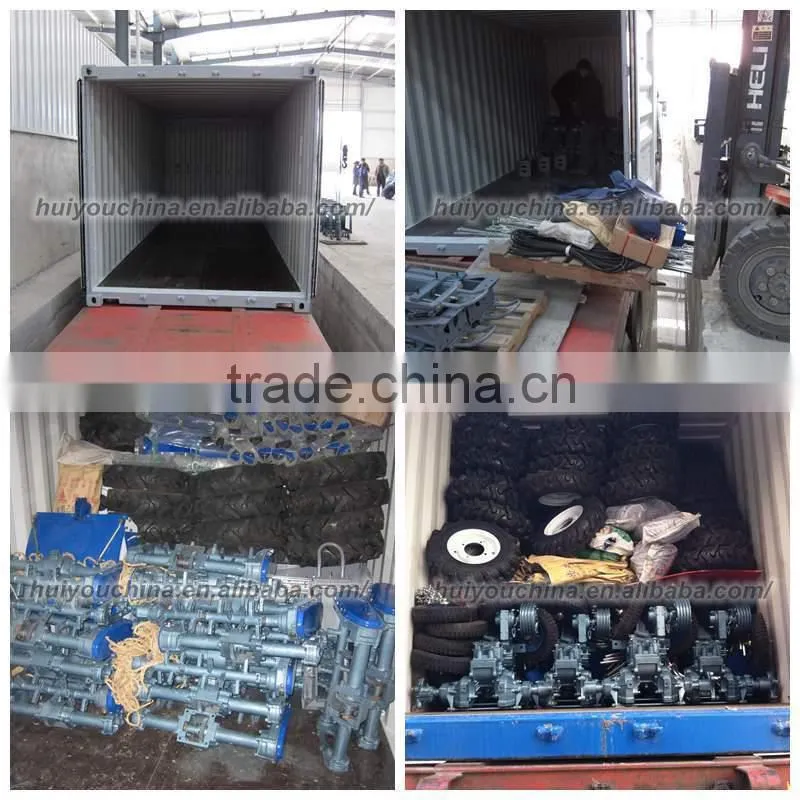

Packaging & Shipping

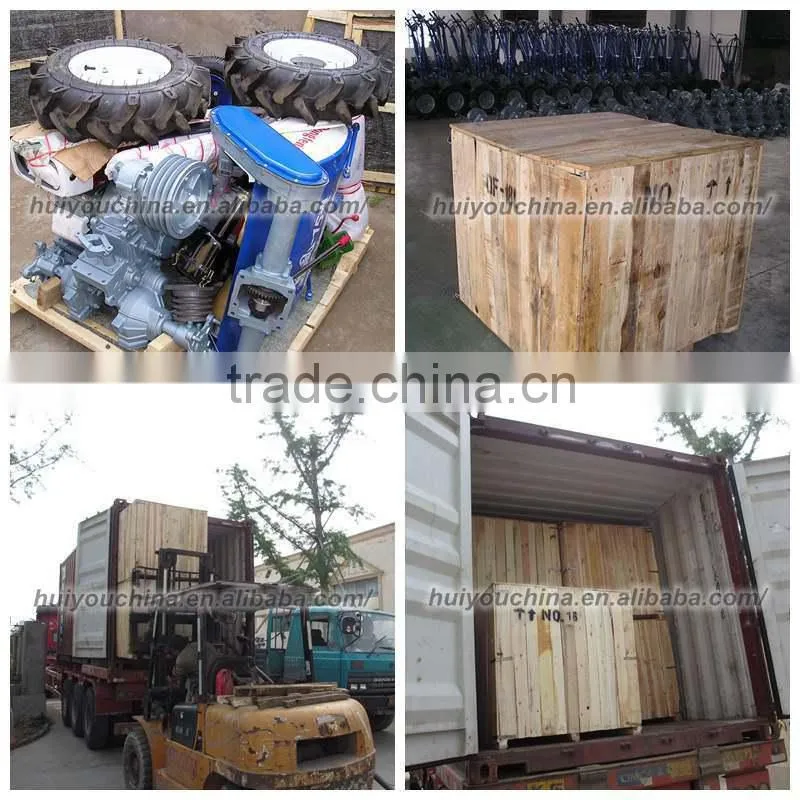

 Shipment of packed ( wooden case, veneer case, steel fram)12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator

Shipment of SKD (semi-knocked down)

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator



Certifications

12hp Power Tiller, Hand Tractor, Walking Tractor with Rotary Cultivator






FAQ

1. How to get an accurate quotation?
To get a quotation list, please send inquiry on Alibaba or send email to us directly. The email addresses are shown in the contact detail page.
As we have different models and different implements, please indicate following details in your inquiry email,



a) Output (how many HP) or Model No.
b) Cooling system (evapoative / radiator)
c) Starting method (hand crank / motor start)
d) Order quantity!



These are very important for providing you an accurate and favorable price.

2. What is the minimum order quantity?
Our minimum order quantity is 2 sets in an order, please be sure that your order quantity is at least 2 sets.

3. About the shipment

Usually if you didn't indicate the shipping requirement in the inquiry email, we will quote on FOB price which does't include shipping cost.

If you need us ship the machine to your country, please also tell us the destination port.


Thank you!

Best wishes.
