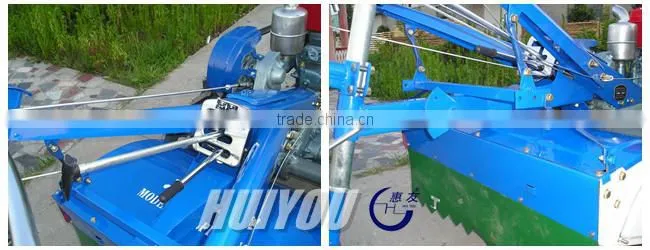

(Independent Seat) 15HP Power Tiller / Walking Tractor

Model

DF-151

GN-151

DF-151L

GN-151L

Diesel engine:

ZS 1100

ZS 1100NL

Type:

1 cylinder, 4stroke, horizontal,

hopper water cooled diesel

1 cylinder, 4stroke, horizontal, hopper water by diesel condenser

Rated power:

11 KW / 15 HP

Rated speed:

2200 rpm

Cooling system:

Evaporative

Radiator

Overall dimension (L×W×H):

2680 × 960 ×1250 mm

Wheel tread:

800, 740 , 640 , 580 mm

Tyre:

6.00 - 12

Ground clearance:

182 mm

Clutch type:

Two-disc, constant-contact, friction

Construction weight:

350 kg

Forward (km/h):

1.54 2.75 4.51 5.83 10.34 16.83

Reverse (km/h):

1.20 4.18

Optional implements:

1. 1LS-220C Two share plough

2. 1LS-220Y Two disc plough

3. 7C-1.5 Trailer

4. 65BP-55 Water pump

5. 4GL-120 Reaper

6. 4GL-150 Reaper

7. 1KS-30 Ditching machine

8. PY series Sprinkler

9. 1LYQ-320 Three disc plough

10.1LYQ-420 Four disc plough

11. 2BG-5A Rotary seed drill

12. 2BG-6A Rotary seed drill

13. 100-640 Anti-skid iron wheel
