12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD Tractor, Rotary Tiller

12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD Tractor, Rotary Tiller thumbnail-1
12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD Tractor, Rotary Tiller thumbnail-2
12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD Tractor, Rotary Tiller thumbnail-3
12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD Tractor, Rotary Tiller photo-1
12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD Tractor, Rotary Tiller photo-2
12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD Tractor, Rotary Tiller photo-3
US$ 900 - 1,100 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Yancheng Dayang Farm Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 13.24kw
Certificate Other
Brand Name Huiyou
Model Number DF-12/12L; DF-15/15L; DF-18/18L; DF-20/20L
Place of Origin Jiangsu, China

Specifications

Hand tractor
Big output diesel engine
Low fuel consumption
Top rank quality
Suitable for various accessories

12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD tractor, Rotary Tiller

 Dong Feng  Hand Tractor, 2WD tractor, Rotary Tiller

12 hp / 15 hp / 18 hp / 20 hp





1.Instruction of the walking tractor

The tractor is featured by its simple and compact construction , reliability , long service life ,easy operation , ample output , light weight and high versatility This tractor is very suitable for use in paddy field , small dry field , orchards , vegetable gardens of hilly land with small inclination . It can be used for ploughing , rotary cultivating , harrowing in paddy field , harvesting , transportation ,etc .if suitable implements or accessories are attached . In addition , the tractor can be extensively used as a stationary power station for small scale drainage and irrigation , spraying , grain threshing , cottons ginning , flour milling , fodder cutting , etc.



2.Main specifications

Model

            DF-18

DF-18L

Diesel engine

ZH/ZS 1100

ZH/ZS 1100NL

Type

1-cylinder, 4stroke, horizontal, hopper water cooled diesel

1-cylinder, 4stroke, horizontal, hopper water by diesel condenser

Rated power (kW/hp)

13.24 / 18

Rated speed (rpm)

2200

Cooled system

Evaporative

Radiator

Overall dimension
(LXWXH)  (mm)

2680x 960x1250

Wheel tread (mm)

800, 740 , 640 , 580

Tyre

6.00 - 12

Ground clearance (mm)

182

Clutch type

Two-disc, constant-contact, friction

Construction  weight (kg)

350

Forward (km/hr)

1.54     2.75   4.51   5.83   10.34  16.83

Reverse (km/hr)

1.20     4.18

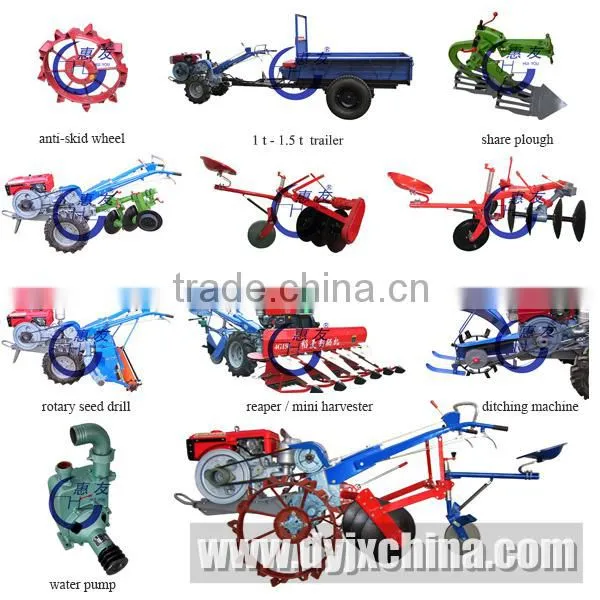

Optional implement

1. 1LS-220C Two share plough                      9.  1LYQ-320 Three disc plough

2. 1LS-220Y Two disc plough                         10.1LYQ-420 Four disc plough

3. 7C-1.5 Trailer                                                 11. 2BG-5A Rotary seed drill

4. 65BP-55 Water pump                                  12. 2BG-6A Rotary seed drill

5. 4GL-120 Reaper                                            13. 100-640 Anti-skid iron wheel

6. 4GL-150 Reaper

7. 1KS-30 Ditching machine

8. PY series Sprinkler

About the detail of implement , please visit our website:



12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD tractor, Rotary Tiller12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD tractor, Rotary Tiller

Accessories of Tractor12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD tractor, Rotary Tiller



Packages

12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD tractor, Rotary Tiller12hp, 15hp, 18hp, 20hp Hand Tractor, 2WD tractor, Rotary Tiller

Brand Iron Board
