Specifications
1.Scan Element Type:Laser2.Scan Speed:100times/sec
3.Place of Origin: Guangdong China (Mainland)
4. Good performance
DKT 7309 Handheld barcode scanner
Specifications
1) Water & dust proof
(2) Competiitve price
(3) Fast delivery
(4) Good performance
(5) CE&ROHS certificated
Performance parameters
Laser Barcode Scanner DKT 7308 | |
Functionality Item | Performance Parameter |
Type of illuminant | 650nm laser |
Use type | Hand-held or bracket-held installation |
Bit error rate (BER) | 1/5 million |
Safety performance | Meet the Grade II National Criteria for Laser Safety |
Barcode types | EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc. |
Supported interfaces | RS232, PC2 keyboard, USB, etc. |
Scanning method | Automatic |
Transmission rate | RS232 Baudeate:2400-38400 |
Resolution (pcs0.9) | 0.10mm(4mil) |
Depth of field | 10-420mm (pos09 density 0.25) |
Reading speed | 100 times/second |
Reading preciseness | 0.40-0.825mm |
Reading distance | 10-520mm |
Reading angle of elevation | 60° |
Reading angle of dip | 45° |
Operating temperature | -20°C-45°C |
Storage temperature | 20°C-45°C |
Operating humidity | 5%-85% |
Storage humidity | 5%-85% |
Power voltage | 5V |
Working current | 57mA |
Static current | 36mA |
Fall test | 100 times/1.5m |
Light intensity | Daylight, 4000Lux |
Electromagnetic interference | Complying with en50081, par1 criteria |
External electromagnetic interference resistance | Complying with en50081, par1criteria |
Dustproofing and waterproofing | Complying with en50081, par1 criteria |
Materials | ABS+PC |

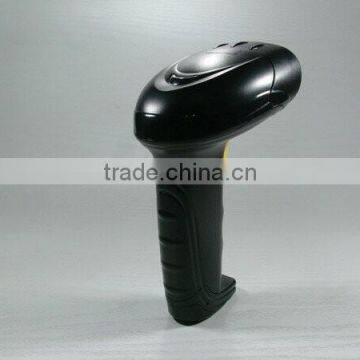

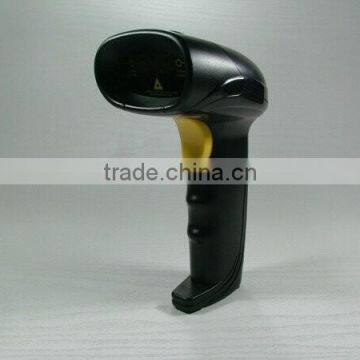

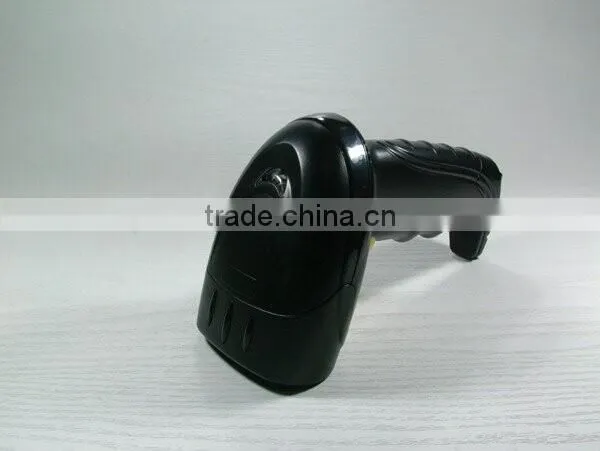

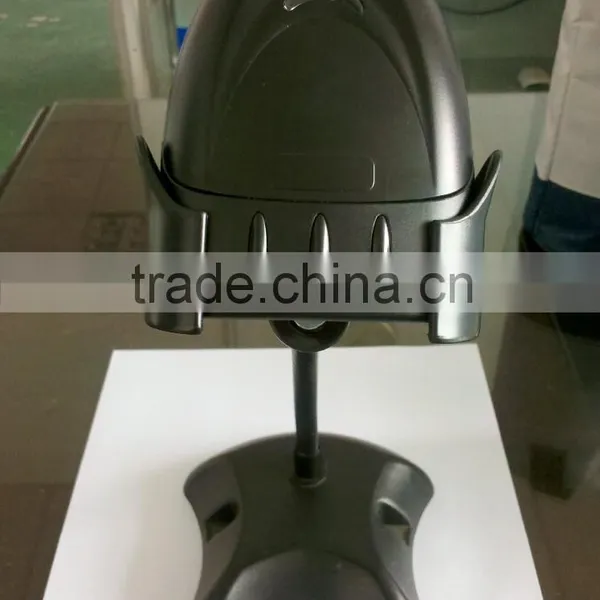

PHOTOS:
Advantages:
Stylish, delicate and elegant appearance
Multi I/O Interfaces
Agency Approvals: CCC, CE, FCC, CB, ROHS,ISO
Multiple Language
