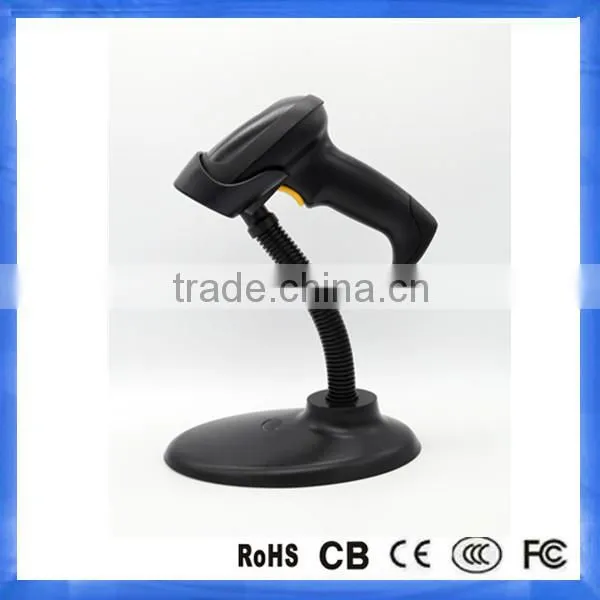

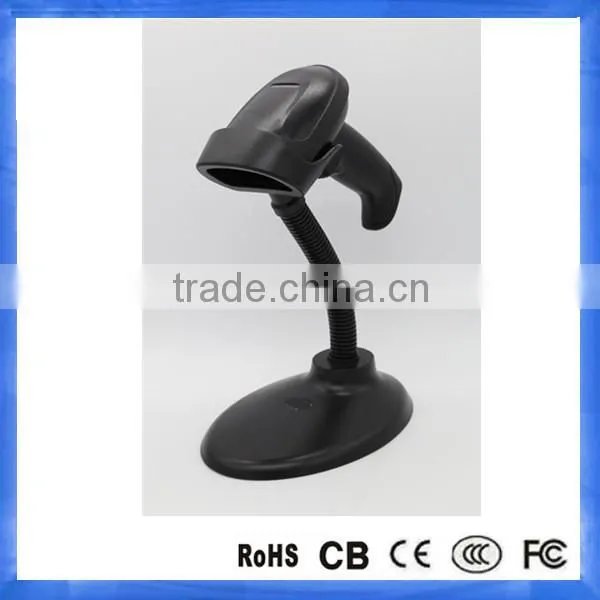

Handheld USB Interface Laser Barcode Scanner

US$ 1 - 50 MOQ: 10 Pieces

Key Specifications

Products Status:

Stock

Type:

Other

Style:

Other

Guangzhou Xprinter Electronic Industrial Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Other

Style Other

Use Other

Interface Type Other, TTL-232, USB

Brand Name DKT

Model Number DKT-8600

Place of Origin Guangdong, China

Product Description

Features

*2D Barcode Decoder Chip

The engine armed with the state-of-the-are 2D barcode decoder chip demonstrates unprecedented reading performance.

*High Performance & Ultra-Low Power Consumption

The scanner can read 1D and 2D bar codes with a power consumption only one fourth that of a traditional scanner.

*All-Round Scanning Capability

It can read barcodes on virtually and medium-paper, plastic cards, mobile phones and LCD displays.

Specification

Performance
Image Sensor				752x480 CMOS
Illumination				Red LED 625±10nm
Symbologies	2D			PDF 417,Data Matrix(ECC200,ECC000,050,080,100,
				140),QR Code
	1D			Code 128, EAN-13, EAN-8, Code 39, UPC-A,UPC-E,
				Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN,
				Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,
				Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey,
				MSI-Plessey,etc.
Reading Precision				≥5mil
Depth of Field	EAN 13(13mil)			55mm-320mm
	PDF 417(6.67mil)			70mm-155mm
	Data Matrix(10mil) (10mil)Matrix(10mil)			55mm-175mm
	QR Code(15mil)			40mm-160mm
Symbol Contrast				≥30% reflectance difference
Scan Angle				Roll:360°, Pitch:±55°, Skew:±55°
Field of View				Horizontal 36°, Vertical 23°
Mechanical/Electrical
Interface			TTL-232, USB
			5 VDC±10%
Operating Voltage			303±10% VDC
Current @5 VDC		Rated Power Consumption	160mA
		Standby Current	35mA
Environmental
Operating Temperature			-20℃~+60℃
Storage Temperature			-40℃~+80℃
Humidity			5%~95%(non-condensing)
Ambient Light			0~100000 lux(natural light)
Accessories:			Scanner, Manual, Cable, Neutral Packing Box
