Supermarket Barcode Scanner use in Supermarket

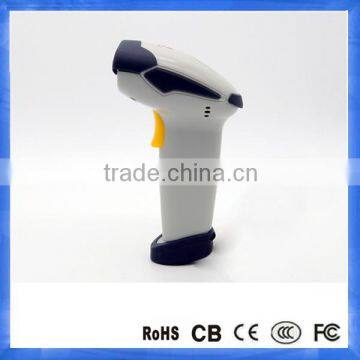

Laser Barcode Scanner DKT 7208

Functionality Item

Performance Parameter

Type of illuminant

650nm laser

Use type

Hand-held or bracket-held installation

Bit error rate (BER)

1/5 million

Safety performance

Meet the Grade II National Criteria for Laser Safety

Barcode types

EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI, Chinese postcode etc.

Supported interfaces

RS232, PC2 keyboard, USB, etc.

Scanning method

Automatic

Transmission rate

RS232 Baudeate:2400-38400

Resolution (pcs0.9)

0.10mm(4mil)

Depth of field

10-420mm (pos09 density 0.25)

Reading speed

100 times/second

Reading preciseness

0.40-0.825mm

Reading distance

10-520mm

Reading angle of elevation

60°

Reading angle of dip

45°

Operating temperature

-20°C-45°C

Storage temperature

20°C-45°C

Operating humidity

5%-85%

Storage humidity

5%-85%

Power voltage

5V

Working current

57mA

Static current

36mA

Fall test

100 times/1.5m

Light intensity

Daylight, 4000Lux

Electromagnetic interference

Complying with en50081, par1 criteria

External electromagnetic interference resistance

Complying with en50081, par1criteria

Dustproofing and waterproofing

Complying with en50081, par1 criteria

Materials

ABS+PC
