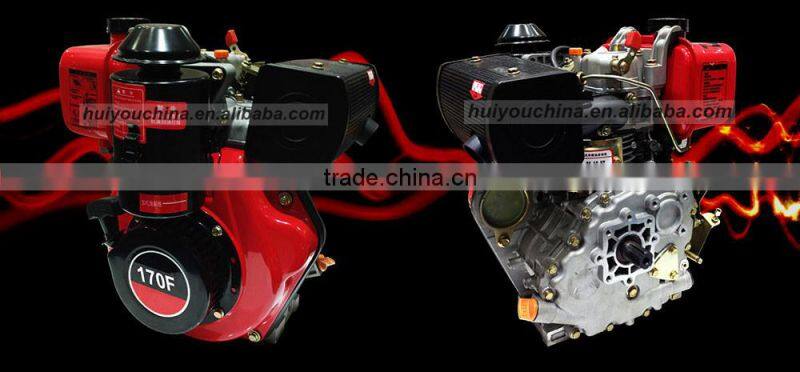

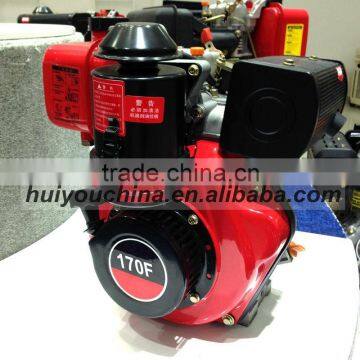

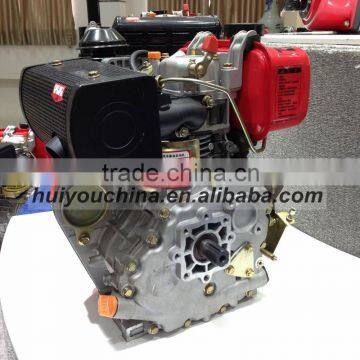

170F Air Cooled Diesel Engine, 211cc, 3.4HP/3000rpm, 3.8HP/3600rpm

US$ 120 - 150 MOQ: 10 Sets

Key Specifications

Condition:

New

Usage:

Other, Generator, Boat, Water pump, Power tiller, etc.

Fuel:

Diesel

Yancheng Dayang Farm Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Generator, Boat, Water pump, Power tiller, etc.

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Other, Recoil start/Electric start

Place of Origin Jiangsu, China

Brand Name OEM

Model Number 170F

Dimension(L*W*H) 420x380x470

Weight 28kg

Certification CE,ISO9001,EPA,LVD

Warranty One year

170F Air Cooled Diesel Engine, 211cc, 3.4HP/3000rpm, 3.8HP/3600rpm

Air Cooled Diesel Engine, 3.8hp, 211cc

Model	170F		178F		186F
Type:	1 Cylinder, Vertical, 4 Stroke, Direct Injection
Bore×Stroke(mm)	70×55		78×62		86×70
Displacement(cc)	211		296		406
Rated speed(rpm)	3000	3600	3000	3600	3000	3600
Rated power(kw)	2.5	2.8	3.7	4.0	5.7	6.3
Rated power(HP)	3.4	3.8	5.0	5.4	7.8	8.5
Piston running speed(m/s)	5.5	6.6	6.2	7.44	7.0	8.4
Fuel consumption(g/kw·h)	280	288	276	285	275	281
Fuel tank capacity(L)	2.5		3.5		5.5
Lube oil capacity(L)	0.75		1.1		1.65
Rotation direction	Flywheel Clockwise
Compression ratio	20:1		20:1		19:1
Cooling type	Air Cooled
Lubricating system	Pressure Splashed
Net weight(kg)	28		33		52
Gross weight(kg)	30		35		54
Overall dimension(mm)	420×380×470		480×460×520		500×475×555
