Help CenterSublimation Printer , Transfer Paper Printer With DX5 / DX7 , 1.8M / 59 Feet
Related Products
-
Flag Banner Printer , Textile Printer With DX5 / DX7US$ 9,800 - 10,800MOQ: 1 Set -
Large Format Textile Dye Sublimation PrinterUS$ 11,100 - 11,200MOQ: 1 Set
-
Large Format Direct to Textile Dye Sublimation Printer, PigmentUS$ 13,100 - 13,200MOQ: 1 Set
-
Large Format Direct to Textile Dye Sublimation Printer, Transfer Paper PrintingUS$ 23,960 - 23,970MOQ: 1 Set
-
Large Format Printer, Textile Dye Sublimation Printer, Transfer Paper PrintingUS$ 23,000 - 23,100MOQ: 1 Set
9 years, from 2008 to 2016, experience on providing solution for client's case.
24 Hours After Sale on Youtube Channel
3 international engineers owns 6/7 years for serving A-Starjet and A-StarCut
We don't use fancy advertising, Never cheat client to make any sale.
| 1. Minor Details Result Significant Performance on Sulimation Printer |
A-Starjet series printer was designed for flex banner. As time goes on, different user will have different usage for printer. And printers evolves.

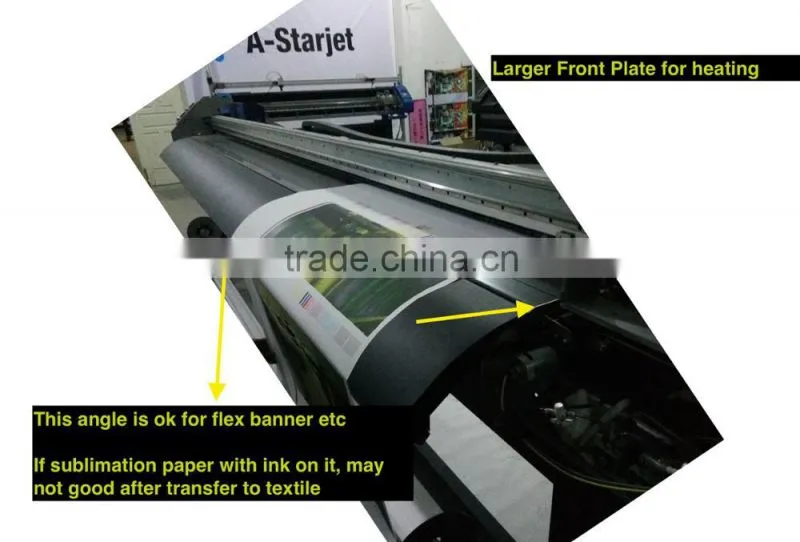

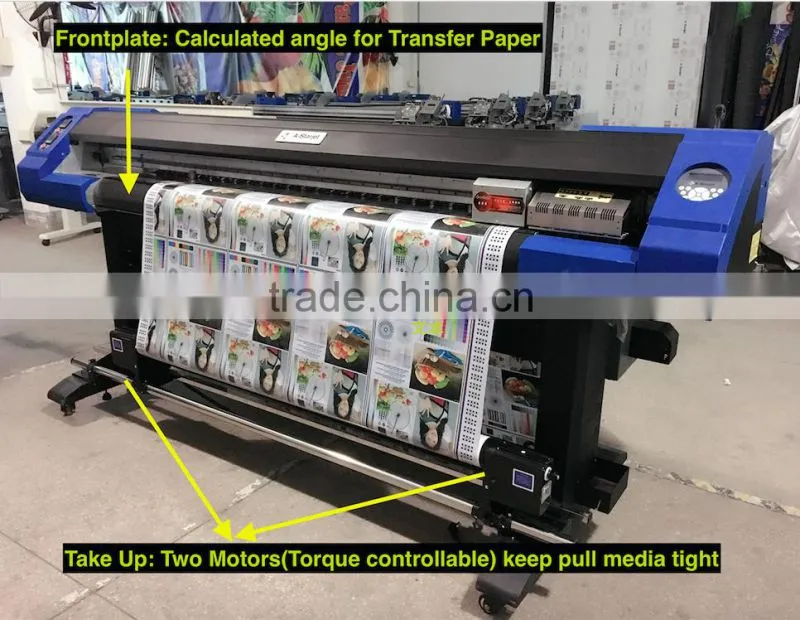

a. Front Plate, special angle for smooth movement.(Left printer uses small plate for transfer paper)
b. Take up, each side has one motor and it's torque can be controlled.
| 2. Advantages of DX7 / F189000 Print Head Used on Large Format Printer |
Heads:
DX5 and DX7 are acceptable.
Print Speed
DX7 is 10% faster than DX5 under same circumstance.
Cause DX7 print head can take high voltage, which means the disform of ceramic can be larger create faster
injection and smaller inkdrop.
| 3. Specification of A-Starjet 7702, A-Starjet 7703 Sublimation Printer |
| Item | A-Starjet 7702 | A-Starjet 7703 | |||
| Print Head | Two DX7/DX5 | Three DX7 | |||
| Color | 4 Color: CMYK (8 Color Optional) | ||||
| Resolution | 1440Dpi(Max) | ||||
| Height of Head | 2-5mm | ||||
| Size of Ink Droplet | 1.5-21pl | ||||
| Printing Width | 1800mm | 1800mm | |||
| Media Width | 1900mm | 1900mm | |||
| Speed | 3 pass | 34.5m²/hour | 50m²/hour | ||
| 4 pass | 26.5m²/hour | 38.6m²/hour | |||
| 6 pass | 17m²/hour | 28m²/hour | |||
| 8 pass | 13m²/hour | 19m²/hour | |||
| Feeder/Take up | Equipped | ||||
| Payload | 70kgs | 70kgs | |||
| Heating system | Pre heater and Post heater with PID temperature control | ||||
| Ink | Eco Solvent/Water Base | ||||
| Ink Cartridge | 8× 350ml Ink Cartridges | 12× 350ml Ink Cartridges | |||
| RIP Software | Iprint 3.8.2/Optional Photoprint, Wasatch, Onyx, SDK available | ||||
| PC System | Win XP & Win 7 | ||||
| Power Voltage | AC220-24V 50-60Hz or AC110-120V 50-60Hz | ||||
| Environment | Temperature:20-50℃, Humidity:40-60% | ||||
| Printer Dimension | W2840× D900× H1250 mm | ||||
| Packing Dimension | W2940× D980× H700 mm | ||||
| Net/Gross weight | 220Kgs/360Kgs | ||||

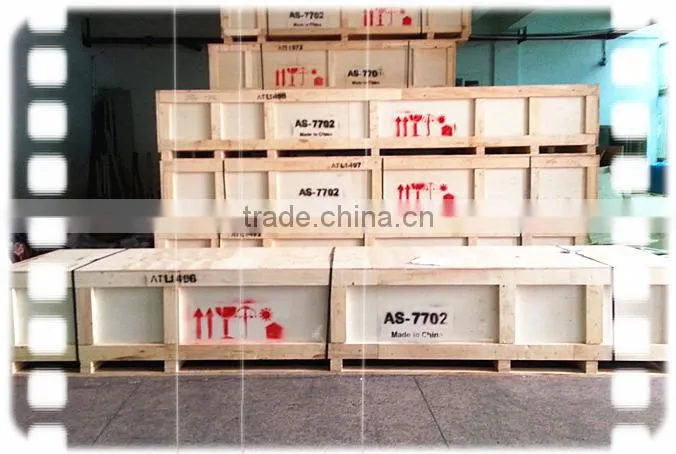

| 4. Packing of A-Starjet 7702, A-Starjet 7703 Transfer Paper Printer |
a. Videos, pictures are provided for examination
b. High quality Fumigation-free wooden pallet can bear 1200kgs
c. Load container service are provided
Sequence of ordering
1. Experienced Internation sales in Genex Digital Co., Ltd will assist clients find the large format printer they need.
2. Provide PI including printers, spare parts, inks etc. Collect clients' consignee info, documents needed.
3. Receive deposit, prepare large format printers.
4. Sale and engineer will exam large format printer, take pictures, videos for client.
5. Rest payment be made, send large format printer to sea port and send to clients.
6. Before large sublimation printer be recieved, engineers may assist clients to prepare the training.
7. After sublimation printer received, we are available to assist client as long as we are online. 24 hours Youtube serive is provided.
You have paid for the service. No matter where, when you get the A-Starjet. You are a member of A-Starjet's community. Life-time free service is provided.
| 3. Company Information |
Terminator Image(Changzhou) Tech. Co., Ltd was a software developer founded in 2006. A-Starjet's major R&D developers have already engaged in cutting, printing industry since 1998. After two years innovation,
in 2008 we built our own factory and launched the first eco solvent printer with Micro Piezo Print Head. The
A-Starjet 5.5. A legend begins...
OUR ACHIEVEMENT
| ||
|
8.2008 A-Starjet 5.5 The first eco-solvent printer in China. |
2010 A-Starjet 5.5L/5L The first 3.2M eco-solvent printer in the world. |
Early 2011 A-Starjet NEO The lowest cost printer uses DX5 head. |
| ||
|
July 2012 A-Starjet 77802/77802L The first double sided printer with auto-calibration in the world. |
March 2013 A-StarCut RTR The first roll to roll label finisher |
March 2014 A-Starcut sheet |
On July, 2013, we built the GENEX Digital Co., Ltd, a sale company owned by Terminator Image(Changzhou) Tech. Co., Ltd.
| 4. A-Starjet is Guarantted to Be the Best Deal You Want to Get |
Reasonable Price
- Directly cooperate with R&D factory.
Comprehensive Guatantee Term
- Print heads are guaranteed when A-Starjet ink being used
- Motors are guaranteed for 6 months
- Printer's boards are guranteed for 15 months
- Counting from the day printer leaves factory
- Within guaratee time, send spare parts in advance and we'll cover all the freight
- After guarantee time, repair fee will be charged
Comfortable After-Sale Service
We are a highly efficient and experienced team.
- Online support Skype, Whats app, TeamView, Youtube, etc.
-
Official Service time from Monday to Saturday:
8:30am to 5:30pm(GMT +8), by experienced Engineers/Sale - 24 hours self-service available by Arthur's Youtube channel.
- All printer, parts in stock, able to ship out on any workday.
- Life-time free technical support from A-Starjet factory by engineers who have worked for A-Starjet for 6-7 years.
- Onsite Service is acceptable
