A-Starcut Digital Label Cutter, Roll to Roll Version Label Cutter, Label Finisher
US$ 2,500 - 2,750
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, digital label cutter
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Zhuhai Ningbo etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC100-220v Automatic Digital Label Cutter With A4 Size Paper StickerUS$ 2,000 - 2,200MOQ: 1 Set -
A-Starcut Digital Label Cutting Machine, Auto Sheet Fed, Label Finisher, Paper Sticker Cutting MachineUS$ 2,600 - 2,610MOQ: 1 Set
-
A-Starcut A3+ Label Cutter Digital Label Finisher, Paper Sticker Cutting MachineUS$ 2,700 - 2,710MOQ: 1 Set
-
Digital Die Cutter , Label Cutter , A4 SizeUS$ 1,559 - 1,560MOQ: 1 Set
-
Digital Die Cutter , 110V / 220V , Customized , Cut Any ShapeUS$ 2,600 - 2,601MOQ: 1 Set
Condition
New
Plate Type
Other, digital label cutter
Place of Origin
Jiangsu, China
Brand Name
A-StarCut Digital Label Cutter
Model Number
A-StarCut Roll to Roll Digital Label Cutter
Usage
Other, label cutter
Automatic Grade
Other, Digital label cutter
Voltage
110V/220V
Gross Power
200W
Dimensions(L*W*H)
W 900*D 950*H 700(mm)
Weight
56kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Best Innovation Of the Year

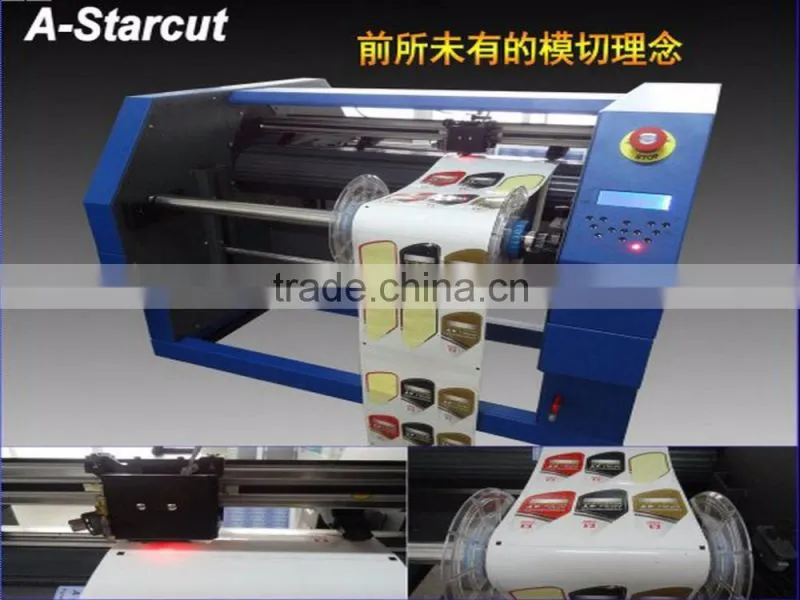

A-Starcut Digital Label Cutter, Roll to Roll
Labels finisher is designed to cut labels on single sheet or roll media without human intervene. The most difficult part for roll media cutting is that media gets slightly inclined. With two crop mark automatically tracking system, A-Starcut is able to handle it.
Printed by any other device with two Crop Mark.(Marks for auto tracking).
Load media on A-Starcut.
1. Edit file need be print, add Marks.
2. Load Print File into Coredraw, create path need to be cut.
This can be done easier cause the image can be seen during editing.
3. Export Edited file to USB device.
4. Select file and copies, press ok.
5. A-StarCut will trace two crop mark and do cutting.
6. After finished one page, it will trace next page's two crop mark.
No matter how long the media will be, there'll be no accumulated error.
When cut roll-to-roll media, the maximum distance(Y-direction) between Crop Marks should within 350mm.
Consumable Part:
Knife: USD20-60.
Different knives for different material.
Layer: USD10/pc (Protect knife from contacting platform)
- Die-board free, off line

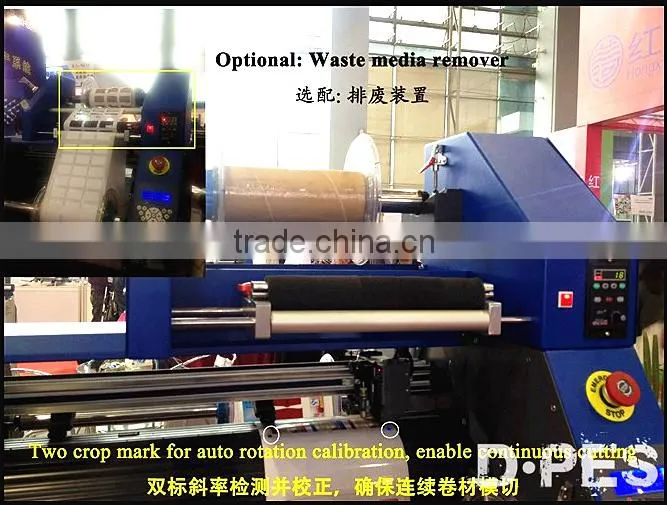

- Two crop mark for rotation calibration. Enables roll-to-roll cutting.
- Ratio calibration, different media has different friction
- Smart cutting path, starting point autosetting, saves time.
- Angle compensation, better detail
- End to end compensation, cutting precisely.
Comparison with Die Cutting
The traditional die cutting process is long and complex. The entire process from
1. package design
2. production of the die
3. transport back to the converter,
4. setting up and installing the die,
5. adjusting the plate on the die cutting machine
which is lengthy, highly skilled and expensive.
The A-StarCut is revolutionary in that it separates the two processes of creating and packing.
The entire process is digital, changes can be made easily, inexpensively and immediately.
Because there is no need for a conventional die, that has to be transported to the converter’s site and no use made of the wood, rubber, and metal, not to mention the storage of the dies.
Digital cutting benefits:
- Files can be reused, edited, stored on your computer.
- Versions can be changed, online, immediately.
- Furthermore, conventional die-cutting is a highly skilled, and labor-intensive process. Digital die-cutting on the Highcon Euclid is intuitive and simple to operate.
- Setup is measured in minutes rather than few hours.
A-Starcut is a digital cutting and creasing machine, which digitizes both the cutting and creasing processes. Unlike traditional die cutting, A-StarCut allows on demand adjustments and changes, the set up and preparation process is much shorter, and it is all digital, so no warehouses are required and manpower costs are much lower.
