Specifications
welded wire mesh panel type .1.guage: bwg12-bwg24
2.hole size:1/4"-2"
3.Material:low carbon steel wire

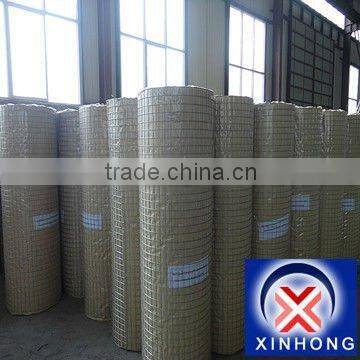

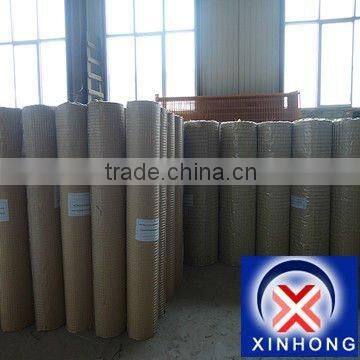

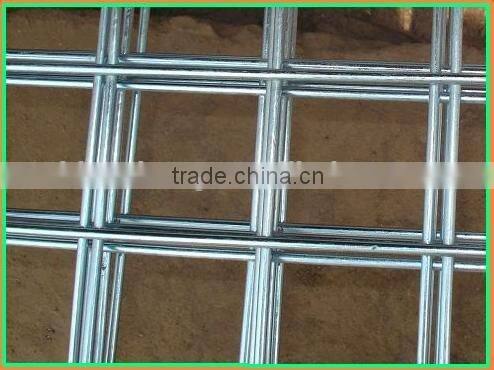

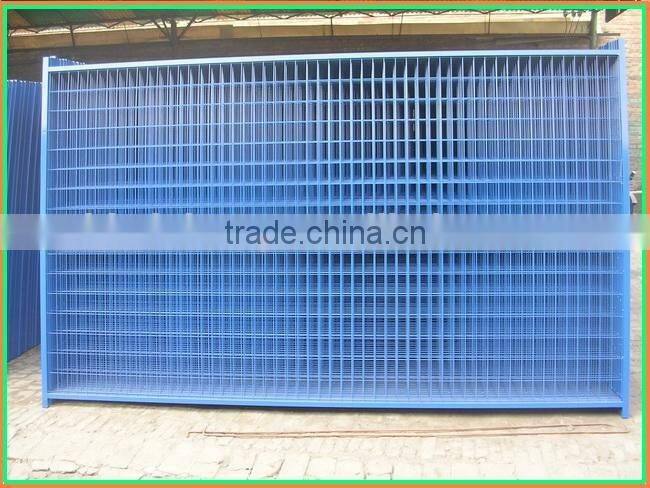

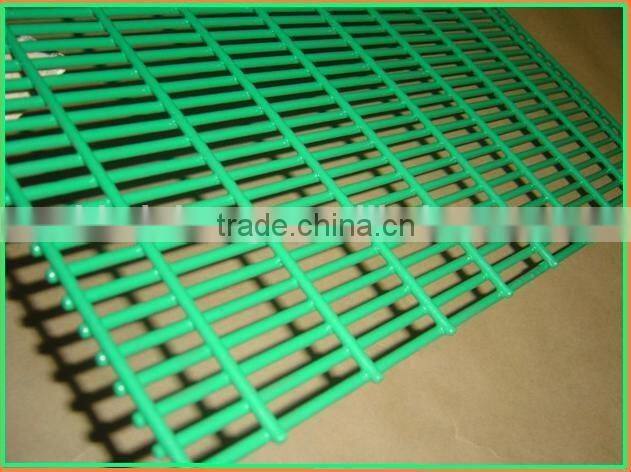

welded wire mesh panel(manufacturer)
welded wire mesh is welded form superior low carbon steel wire and then galvanized and PVC coated.It features smooth surface,uniform mesh,highstability and great corrosion resistance.
1-Electro galvanized mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized mesh(welded before galvanized, welded after galvanized)
3-PVC coated mesh(wire dia. of PVC is about 0.4mm)
4.Stainless steel welded wire mesh (304 316L etc.)
Galvanized welded mesh has a good resistance to corrosion. Zinc coating can reach 200g/m2.
We offer heavy type welded wire mesh
The specifications
| Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
|
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Applications: welded wire mesh is widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body
Features:
· Solid construction
· Easy handling
· Wires resist movement
· Flush edge trim available
· PVC (vinyl) coating
· Wire is galvanized before vinyl coated

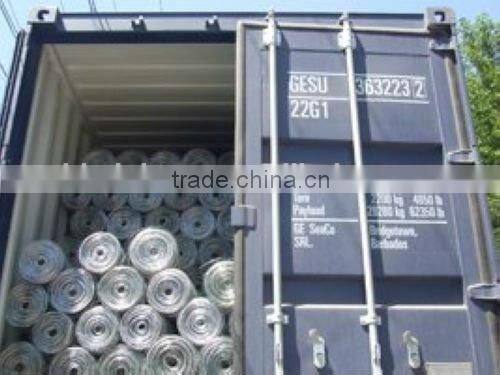

Package |
Safety package or naked |
Delivery |
Within 15-20 days after receiving the deposit |
Payment terms |
EXW: 100% T/T FOB: T/T, 30% deposit, 70% balance payment before shipping. CIF: T/T, 30% deposit, 70% balance payment at the sight of copy of B/L. |
weldome to inquiry.
Anping Xinhong wire Mesh Co.,Ltd
