Radial lead 250V resettable PPTC fuses:
This product line provides protection from induced AC power currents, direct power contact and natural lightning strikes. These devices range in hold currents from 0.08A to 0.18A, under a max operating voltage of 60Vdc and an interruption voltage of 250Vac.
The HVR 250 product line is widely used in the telecommunications and networking fields, and in ISDN and XSDN equipment. It also helps networking manufacturers pass the ITU K20, K21 and Telcordia requirements
| Part Number | I hold (A) | Itrip(A) | Vmax(Vac) Vint /Vop | I max(A) | Pd max. (W) | Maximum Time To Trip | Resistance | Agency Approval | |||
| Current(A) | Time (Sec.) | R min(Ω) | R max(Ω) | R 1max(Ω) | |||||||
| HVR250P080CFT | 0.08 | 0.16 | 250/60 | 3 | 1 | 0.35 | 3 | 15 | 22 | 33 | UL,CSA,TUV |
| HVR250P080CF | 0.08 | 0.16 | 250/60 | 3 | 1 | 0.35 | 3 | 14 | 22 | 33 | UL,CSA,TUV |
| HVR250P120CF | 0.12 | 0.24 | 250/60 | 3 | 1 | 1 | 1.5 | 4 | 8 | 16 | UL,CSA,TUV |
| HVR250P120CF-RA | 0.12 | 0.24 | 250/60 | 3 | 1 | 1 | 1.0 | 7 | 9 | 16 | UL,CSA,TUV |
| HVR250P120CF-RC | 0.12 | 0.24 | 250/60 | 3 | 1 | 1 | 0.85 | 5.4 | 7.5 | 14 | UL,CSA,TUV |
| HVR250P120CF-RF | 0.12 | 0.24 | 250/60 | 3 | 1 | 1 | 0.9 | 6 | 10.5 | 16 | UL,CSA,TUV |
| HVR250P120CF-R1 | 0.12 | 0.24 | 250/60 | 3 | 1 | 1 | 0.8 | 6 | 9 | 16 | UL,CSA,TUV |
| HVR250P120CF-R2 | 0.12 | 0.24 | 250/60 | 3 | 1 | 1 | 0.7 | 8 | 10.5 | 16 | UL,CSA,TUV |
| HVR250P120CF-R3 | 0.12 | 0.24 | 250/60 | 3 | 1 | 1 | 1 | 8 | 10 | 16 | UL,CSA,TUV |
| HVR250P120CFT | 0.12 | 0.24 | 250/60 | 3 | 1 | 1 | 1.2 | 7 | 12 | 16 | UL,CSA,TUV |
| HVR250P145CF | 0.145 | 0.29 | 250/60 | 3 | 1 | 1 | 2.5 | 3 | 6 | 14 | UL,CSA,TUV |
| HVR250P145CF-RA | 0.145 | 0.29 | 250/60 | 3 | 1 | 1 | 5 | 3 | 5.5 | 12 | UL,CSA,TUV |
| HVR250P145CF-RB | 0.145 | 0.29 | 250/60 | 3 | 1 | 1 | 2.5 | 4.5 | 6 | 14 | UL,CSA,TUV |
| HVR250P145CFT | 0.145 | 0.29 | 250/60 | 3 | 1 | 1 | 2.0 | 5.4 | 7.5 | 14 | UL,CSA,TUV |
| HVR250P180CF | 0.18 | 0.65 | 250/60 | 10 | 1.8 | 1 | 21 | 0.8 | 2.2 | 4 | UL,CSA,TUV |
| HVR250P180CFT | 0.18 | 0.65 | 250/60 | 10 | 1.8 | 1 | 20 | 1.4 | 3.9 | 4.5 | UL,CSA,TUV |

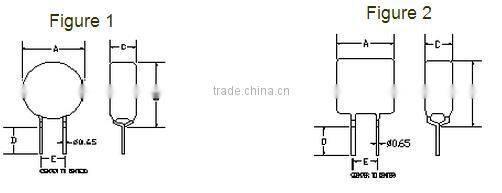

250V PPTC resettable fuse PHYSICAL DIMENSIONS (mm)
Part Number | Figure | A | B | C | D | E | Physical Characteristics | |
(max.) | (max.) | (max.) | (min.) |
| Lead | Material | ||
| HVR250P080CF | 1 | 5.8 | 9.9 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P080CFT | 1 | 5.8 | 9.9 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P120CF | 2 | 6.5 | 11.0 | 3.8 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P120CF-RA | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P120CF-RC | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P120CF-RF | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P120CF-R1 | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P120CF-R2 | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P120CF-R3 | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P120CFT | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P145CF | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P145CF-RA | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P145CF-RB | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P145CFT | 2 | 6.5 | 11.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P180CF | 1 | 9.5 | 12.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
| HVR250P180CFT | 1 | 9.5 | 12.0 | 4.6 | 4.7 | 5.1±0.7 | 0.65 dia | Sn/Cu |
