Resettable PPTC Fuse 30V 8A

Resettable PPTC Fuse 30V 8A thumbnail-1
Resettable PPTC Fuse 30V 8A photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Tianrui
Model Number:
RLD
Contact Supplier Request Quote Chat Now
Dongguan Tianrui Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Tianrui
Model Number RLD
Usage Resettable
Breaking Capacity Low
Safety Standards Other, UL/CSA/TUV, UL/CSA/TUV
Product Description

Main products include glass / ceramic tube fuses, thermal cutoffs, thermostats, automotive fuses, miniature fuses, SMD fuses, PPTC resettable fuses, fuse blocks, holders & clips.



30V resettable PPTC fuses:

These RLDs can be used to protect almost any load powered by a low voltage (≤30Vdc) supply, including general electronics, computers and their peripheral equipment, and automotive electronics.



Part NumberI hold(A)Itrip(A)Vmax(Vdc)I max(A)Pd max. (W)Maximum Time To TripResistance

Agency

Approval*

Current(A)Time (Sec.)R min(Ω)R 1max(Ω)
RLD30P090UF0.901.8030400.604.505.900.0700.220UL/CSA/TUV
RLD30P110UF1.102.2030400.705.506.600.0500.170UL/ CSA/ TUV
RLD30P135UF1.352.7030400.806.757.300.0400.130UL/ CSA/ TUV
RLD30P160UF1.603.2030400.908.008.000.0300.110UL/ CSA/ TUV
RLD30P185UF1.853.7030401.009.258.700.0300.090UL/ CSA/ TUV
RLD30P250UF2.505.0030401.2012.5010.300.0200.070UL/ CSA/ TUV
RLD30P300UF3.006.0030402.0015.0010.800.0200.080UL/ CSA/ TUV
RLD30P400UF4.008.0030402.5020.0012.700.0100.050UL/ CSA/ TUV
RLD30P500UF5.0010.0030403.0025.0014.500.0100.050UL/ CSA/ TUV
RLD30P600UF6.0012.0030403.5030.0016.000.0050.040UL/ CSA/ TUV
RLD30P700UF7.0014.0030403.8035.0017.500.0050.030UL/ CSA/ TUV
RLD30P800UF8.0016.0030404.0040.0018.800.0050.020UL/ CSA/ TUV
RLD30P900UF9.0018.0030404.2040.0020.000.0050.020UL/ CSA/ TUV



30V PPTC resettable fuse PHYSICAL DIMENSIONS (mm)



Part Number

ABCDEPhysical Characteristics
(max.)(max.) (min.)(max.)LeadMaterial
RLD30P090UF7.412.25.1±0.77.63.00.51 diaSn/CuFe
RLD30P110UF7.414.25.1±0.77.63.00.51 diaSn/CuFe
RLD30P135UF8.913.55.1±0.77.63.00.51 diaSn/CuFe
RLD30P160UF8.915.25.1±0.77.63.00.51 diaSn/CuFe
RLD30P185UF10.215.75.1±0.77.63.00.51 diaSn/CuFe
RLD30P250UF11.418.35.1±0.77.63.00.51 diaSn/Cu
RLD30P300UF11.416.55.1±0.77.63.00.81 diaSn/Cu
RLD30P400UF14.021.35.1±0.77.63.00.81 diaSn/Cu
RLD30P500UF14.025.610.2±1.07.63.00.81 diaSn/Cu
RLD30P600UF16.526.210.2±1.07.63.00.81 diaSn/Cu
RLD30P700UF19.127.710.2±1.07.63.00.81 diaSn/Cu
RLD30P800UF21.630.210.2±1.07.63.00.81 diaSn/Cu
RLD30P900UF24.131.010.2±1.07.63.00.81 dia

Sn/Cu

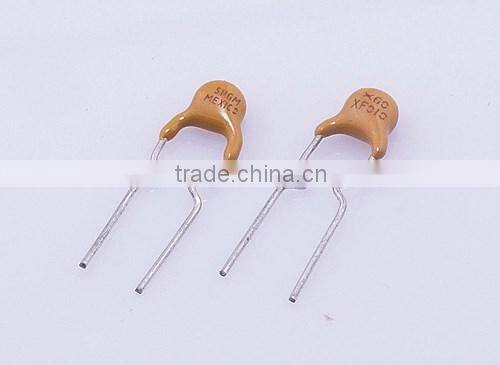

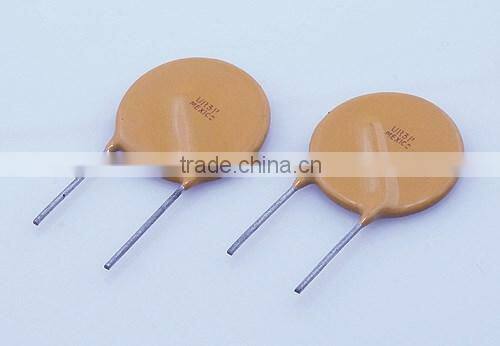

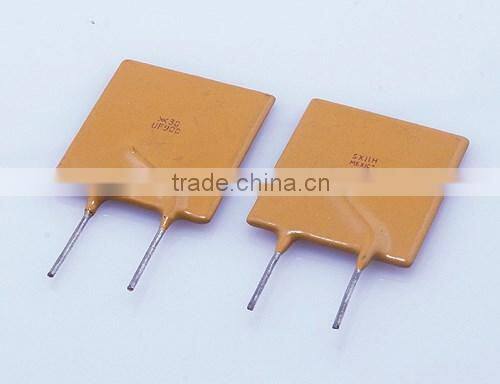

Pictures of pptc resettable fuses radial leads



Resettable PPTC fuse 30V 8A

Resettable PPTC fuse 30V 8A

Resettable PPTC fuse 30V 8A

Resettable PPTC fuse 30V 8A

Company Information

Factory View



Product Gallery





Packaging & Shipping

  • Sample shipment: International express to be collected, or freight prepaid through Paypal

    Goods shipment: International express, airport to airport, sea

CONTACT ME FOR MORE ABOUT the radial lead PPTC resettable fuse 30V
