Help CenterElectrical Galvanized Razor Wire
Related Products
Specifications
electrical galvanized razor wire1. Corrosion Resistance
2. Anti-aging
3. Reverse Twisted
4. Continuous Twisted

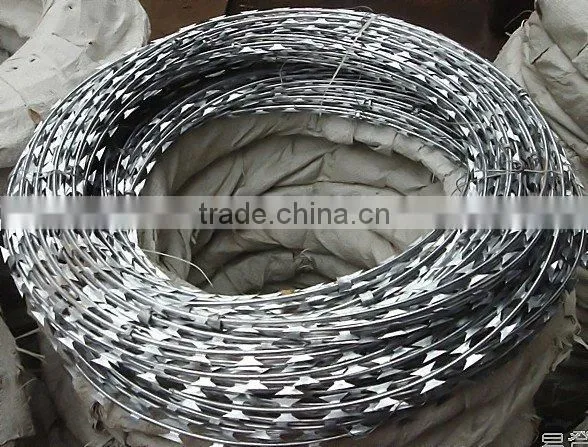

electrical galvanized razor wire
Advantages
1. Quality Certification:ISO9000-2001, High-qulity products
2. Enterprise Corporation, Low-cost due to Low price
3. 25-years history of producing, Reliability is our strong point
Material: Fabricated with razor-sharp steel blade and high-tensile wire.
Technology: Wire as the core wire, the blade wrapped in a good punch on the core wire, once made
Character:strong protection and excellent intimidation ability ,easy to install , long life
shape:Linear, cross-type, linear coil-type, cross-coil type
Usages: To border quarantine, military facilities, prisons, villa area, military bases, airports .etc
Packing:Weaving bag, then using pallet, or according to customers’ requirement.
Specifications:
Blade Specification |
Blade Thickness |
Core Wire Dia. |
Blade Length |
Blade Width |
Blade Space |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Specification of Razor Wire | ||||
Outer Dia |
Number Account |
Length |
Razor |
Others |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
960mm |
52 |
9M |
BTO-10.15.22 |
|
Other Products:
Brass wire Bronze wire Iron wire
Barbed wire PVC coated barbed wire Welded wire mesh
Stainless steel wire mesh Chain Link Fence Expanded metal
sheet Perforated Metal Sheet Steel bar welded wire mesh panel
Anping Xinhong Wire Mesh Co.,Ltd.
Tel:86-311-66686606
Fax:86-311-66686606
MB: 86-15227171491
Contact Person:Mr Kevin Feng
Send Inquiry to This Supplier
