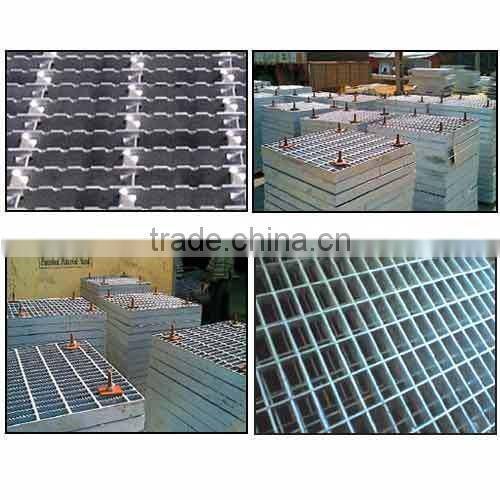

Welded Bar Grating

Name: Welded Bar Grating
Brand: xinhongwiremesh
SKU: 131974033
Availability: InStock

Anping Xinhong Wire Mesh Co., Ltd.

Negotiable MOQ: 20 Tons (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

xinhongwiremesh

Model Number:

various sorts

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN XINGANG CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name xinhongwiremesh

Model Number various sorts

Material Other, Stainless Steel, low carbon steel wire ,stainless steel wire ,aluminum alloy wire

Specifications

welded bar grating
1. Pressure welding
2. Competitive price
3. Shippment on time
4. ISO9001

welded bar grating

Material: Mid steel ,stainless steel 304 or 316

Martering bar specification : 20mm*3mm to 90mm*7

Bearing bar pith: 12.5mm ,25mm,30mm,33.5mm,37.5mm,40mm,50mm,60mm

Cross bar specification : 5mm*5mm 6mm*6mm 8mm*8mm

Cross bar pith: 25,38,50,50,8,76,100,101.6

Maximun length: 6,100mm

Surface treatment: untreated paint or hot-dip galvanized .

Standard

China: YB/T4001-1998

USA: ANSI/NAAMM(MBG531-88)

UK: BS4592-1987

Australia: AS1657-1985

Japan: JJS

Series	striate-bar pitch	Cross-bar Pitch	Specification of bearing bar load(width×thickness)
1	30	100	20×3	25×3	32×3	40×3	20×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100
		50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100
		50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50

Series	striate-bar pitch	Cross-bar Pitch	Specification of bearing bar load(width×thickness)
1	30		32×5	40×5	45×5	50×5	55×5
1	30	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
		G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
		G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50
