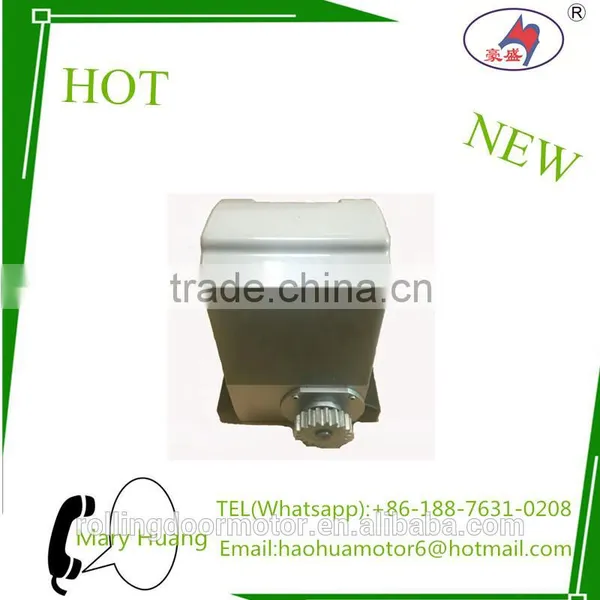

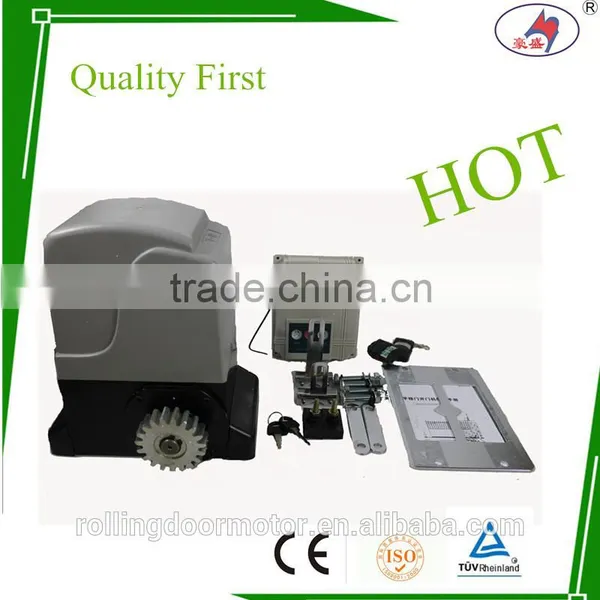

*Sliding gate operator is our new developed product Integrated mechanical and electrical, ie, with PCB inside.
*Can be connected with alarm and sensor and button switch and loop detector.
*Mechanical limit switch (spring limit switch) or magnetic limit switch is optional.
*Release key for power failure.
*Optional line control or remote control.
*Waterproof motor.
*Self-locking in closed position.
*Quiet and stable operation.
*Remote distance up to 70 meter.
*Color of base: Sliver white or Black.
:
| Model | LW550 | LW400 | LW370 |
| Max.Gate Weight | 1500kg | 800kg | 500kg |
| Power Supply | 220V±10% or 110V ±10% | ||
| Gate Speed | 12m/min | ||
| Environment Temp. | -45 ℃ ~ +55 ℃ | ||
| Limit Swith | Spring Linit Or Magnetic Limit Swith | ||
*****Packing Detail:Gate Operators with foam in Cartoon
Zhangzhou Haohua Electrical Co.,Ltd. locatde in the Golden Triangle Economic Zone of southern Fujian, integrates produt R&D, manufactue, sale and service.We are specalized in rolling door motors ,fireproof door motors and other related tubular motor for 14 years.Haohua now has advanced technology and a complete quality control system. our products are safe,small and easy to maintain,and feature light weight,low noise and elegant design,and widely used in public places.
Welcome to visit our webisite:Click here~Http://
Q:The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
Q:The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
Q:The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
Q: Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
Q;When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
Q:The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
