Help CenterAutomatic Roller Side Shutter Motor With 24V UPS
Related Products
-
DC Rolling Shutter Door Motor,side Motor and Rolling Door MotorNegotiableMOQ: 20 Sets -
dc Rolling Door Motor With CE and Storage BatteryNegotiableMOQ: 20 Sets
-
DC 800Kg Electric Motor/rolling Shutter Motor/ Motor DC 24V With Learning Code UPSNegotiableMOQ: 20 Sets
-
JMJ168/4.9-DC-(300Kg) 200 Watts MotorNegotiableMOQ: 20 Sets
-
JMJ168/4.9-DC-(300Kg) dc Roller Shutter Motor CE StandardNegotiableMOQ: 20 Sets

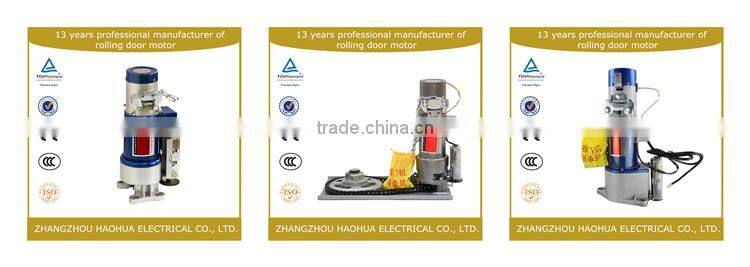

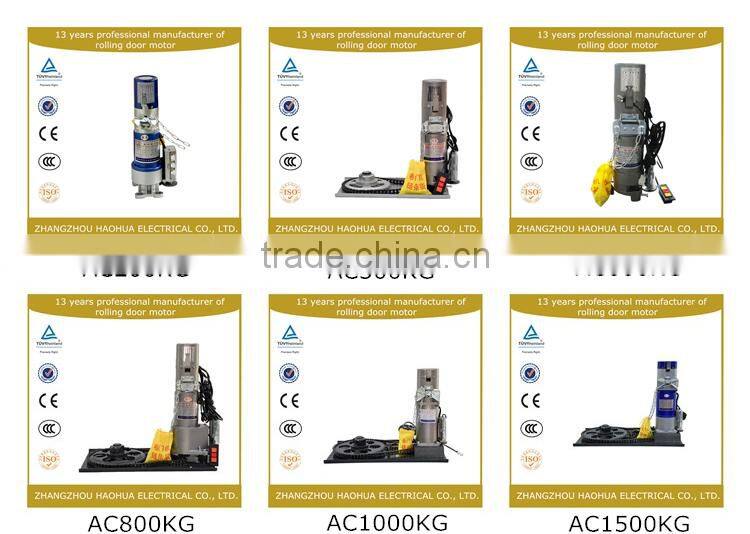

AC ROLLING DOOR MOTOR
-------------------------------------------------------------------------------------------------------------------------
DC ROLLING DOOR MOTOR
200KG 600KG 800KG
ROLLING DOOR MOTOR ROLLING DOOR MOTOR ROLLING DOOR MOTOR
--------------------------------------------------------------------------------------------------------------------------

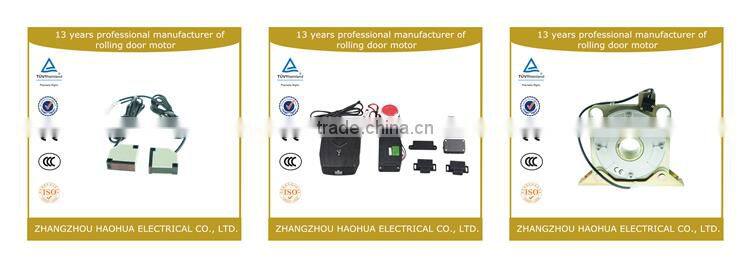

OPTIONAL ACCESSORIES

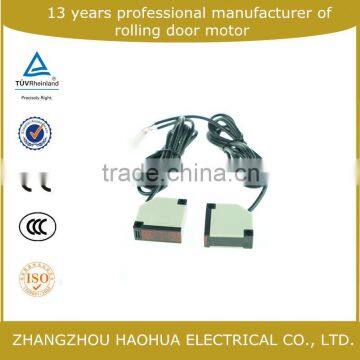

PHOTOCELL TOUCH SENSOR BRAKE SYSTERM
|

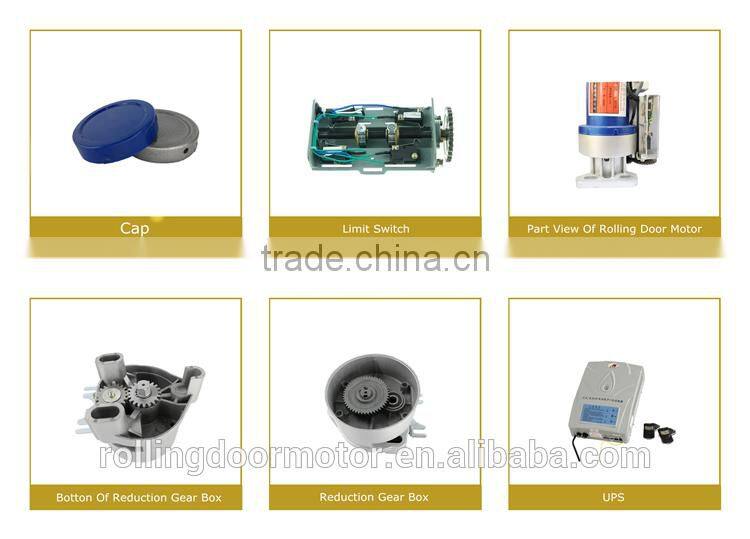

ROLLING DOOR MOTOR
|
Type |
Adaptable Voltage |
Rated Power(W) |
Ratedload |
Standard Barrel Dim(Inch) |
Sproket Motor/Barrel |
||
|
Lifting Force(Kg) |
Max Height( m) |
Output Speed(r/m) |
||||||
|
DC rolling door motor |
JMJ168/3.7-DC-I(300Kg) | DC24V |
150 | 300 |
4 | 3.7 | 4 | 9T/45T |
| JMJ168/4.9-DC-(300Kg) | 200 | 300 | 5 | 4.9 | 5 | 9T/47T | ||
| JMJ168/4.6-DC-(500Kg) | 240 | 500 | 5 | 4.6 | 5 | 9T/47T | ||
| JMJ168/4.2-DC-(600Kg) | 240 | 600 | 5 | 4.2 | 5 | 9T/54T | ||
| JMJ168/3.9-DC-(800Kg) | 380 | 800 | 5 | 3.9 | 5 | 9T/54T | ||
|
AC rolling door motor |
JMJ168/5.2-1P-I(300Kg) |
220V 50Hz |
180 | 300 | 6 | 5.2 | 4 | 9T/55T |
| JMJ168/5.5-1P-(300Kg) | 250 | 300 | 6 | 5.2 | 4 | 9T/55T | ||
| JMJ168/5.9-3P(300Kg) | 180 | 300 | 6 | 5.2 | 4 | 9T/55T | ||
| JMJ345/6.2-1P-(500Kg) | 370 | 500 | 7 | 6.2 | 5 | 9T/47T | ||
| JMJ345/6.2-3P-(500KG) | 250 | 500 | 7 | 6.2 | 5 | 9T/47T | ||
| JMJ412/5.2-1P-(600KG) | 370 | 600 | 6 | 5.2 | 5 | 9T/54T | ||
| JMJ412/5.2-3P-(600KG) | 250 | 600 | 6 | 5.2 | 5 | 9T/54T | ||
| JMJ650/3.4-1P-(800KG) | 400 | 800 | 10 | 3.4 | 6 | 9T/54T | ||
| JMJ650/3.4-3P-(800KG) | 300 | 800 | 10 | 3.4 | 6 | 9T/54T | ||
| JMJ810/4.2-1P(1000KG) | 800 | 1000 | 10 | 4.2 | 6 | 9T/50T | ||
| JMJ810/4.2-3P(1000KG) | 400 | 1000 | 10 | 4.2 | 6 | 9T/50T | ||
| JMJ1050/4.2-3P(1300KG) | 600 | 1300 | 13 | 4.2 | 6 | 9T/50T | ||
| JMJ1220/3.8-1P(1500KG) | 1200 | 1500 | 13 | 3.8 | 6 | 9T/57T | ||
| JMJ1220/3.6-3P(1500KG) | 800 | 1500 | 13 | 3.8 | 6 | 9T/57T | ||
| JMJ2450/3.8-3P(2000KG) | 1200 | 2000 | 13 | 3.6 | 8 | 8T/51T | ||
This kind of rolling door motor / rolling shutter motor / roller door motor / roller shutter motor use optional power , that in normal power supply sistuation , motor drive with power by utility . If have power off for its electrical automatic power reserves, and can ensure door motor run out 20 times in normal.
- Attractive appearance , advanced structure , horsepower strong ;
- Configuration high- power low koss ring transformer, utility can direct drive motor;
- Low noise , small vibration , low consumption;
- Light weight , small size , convenient installation , long life and reliable performance ;
- With convenient , stabke function of remote control , can distance remote operation;

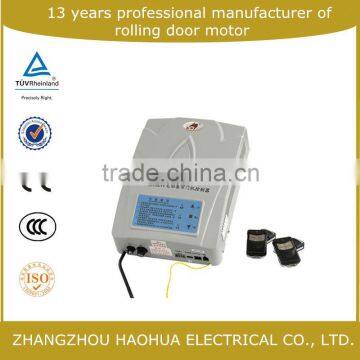

- Reserve power supply on the market used batteries for universal product (4.5Ah / 24 V);
- Controller of energy conservation and environmental protection lighting , delay cabin 3 minutes .
Insert the host machine into the side sheet , no more drive chain needs , so it saves time and power . The electric control panel is designed of inserting style , so it is easy to change the components.
It is always available to drive doors of garages , shops , malls , museums , factories , warehouses and so on .
ZHANGZHOU HAOHUA ELECTRICAL CO., LTD.,established in 2003,is a professional manufacturer engaged in the research,development,production,sale and service of AC ROLLING DOOR MOTOR,AC&DC ROLLING DOOR MOTOR,FIREPROOF ROLLING DOOR MOTOR,TUBULAR MOTOR,SHUTTER FORMING MACHINE.We are located in ZHANGZHOU CITY,FUJIAN PROVINCE with convenient transportation access.Dedicated to strict quality control and thoughtful customer service,our experienced staff members are always available to discuss your requirements and ensure full customer satifaction.In recent years,our company has introduced a series of advanced equipment including Multi-function generator,test instrument,aging equipment.In addition,we have obtainedISO9001:2008,CE,CCC certificates.Selling well in all cities and provinces around China,our products are also exported to clients in such countries and regions as Middle East,South America,South Africa,Southeast Asia,East Asia.
We also welcome OEM and ODM orders.Whether selecting a current product from our catalog or seeking engineering assistance for your application,you can talk to our customer service center about your sourcing requirements.We warmly welcome customers from at home and aboroad to estabilsh cooperation and create a bright future with us together.
Company Event
1.2014 Bejing Exhibition
2.2014 Guangzhou Exhibition
3.2010 Italy Exhibition
4.Cooperate with Taiwan J&G company
5.Germany leading company 'Lift Master'
6. DOOYA's rolling shutter side motor OEM
| CERTIFICATIONS | CE , ISO9001:2008 , TUV , CCC |
| OEM,ODM | YES |
| WARRANTY | 1 YEAR |
| AC MOTOR INCLUDE | MOTOR,MANUAL BUTTON,LOCK BOX,BRACKET SYSTEM |
| AC MOTOR OPTIONAL | REMOTE CONTROL SYSTEM FOR DIFFERENT FUNCTION |
| AC&DC MOTOR INCLUDE | MOTOR,CONTROLLER SYSTEM,BACKUP BATTERY, BRACKET SYSTEM |
| AC&DC MOTOR OPTIONAL | MANUAL BUTTON,LOCK BOX, INFRARED SENSOR, ALARM SYSTEM. |
| AC&DC MOTOR LOAD CAPACITY |
600 SETS AC ROLLING DOOR MOTOR FOR ONE 20GP CONTAINER. 540 SETS DC ROLLING DOOR MOTOR FOR ONE 20GP CONTAINER. |
| MOTOR PACKAGE |
1.TWO CARTONS, ONE FOR MOTOR AND REMORE, ONE FOR BRACKET 2.THREE CARTONS,ONE FOR MOTOR,ONE FOR REMOTE AND THE OTHER FOR BRACKET. |
How can we make suitable products to you ?
- All the design of AC rolling door motor / AC & DC rolling door motor /Fireproof rolling door motor / Tubular motor can make according to your request.
- AC motor : 300kg-2000kg, DC motor: 200kg-800kg
- 110V/220V/380V and other voltage are ok for our rolling door motor/roller shutter motor/rolling shutter motor/door opener/door closer
- with 2-4relays inside the motor to make sure the safe
- 100% copper material inside the motor, so it has good quality
- Anti-drop bracket system make it safely to be used
- Good quality, competitive price can help you open a new market of rolling door motor/rolling shutter motor/roller shutter door motor
Way 1
Carton 1 : Rolling Door motor
Carton 2: Remote Control
Carton 3: Bracket Syesterm
Way 2
Carton 1: Rolling Door Motor and Remote Control
Carton 2: Bracket Syesterm
| Troubles | Causes | Deal With |
| Undervoltage alam(The storage power user) | After installed , at first use, apear undervoltage alarm. | Charging |
| The AC power cut out for more than two days , when you use appear undervoltage alarm. | Charging | |
| After 10 hours of charging, when you use appear undervoltage alarm. | Replace Battery | |
| When reaching above or below, but does not stop | Motor phase sequence is wrong , up , down position limit failure. |
Cut off the power, check and adjust the phase sequence |
| Don't run | Push-button contact poor contact , limit switch is stuck, circuits are not working. | Adjust or replace of button , exam the wiring , restore . |
| Constantly running | Relay contact fusion , limit switch failture. |
Repair or replace of the relay, slight move switch. |
| Have sound , but no work | Clamping stagnation , input voltage is below 190V. | Deal with the clamping stagnation , charging.(the storage power user) |
| After the brake , doors continue to decline | Axial brake pads is excessive wear. | Check compression spring ,increase the adjusting washer |
Why Choose US?
| 1.Good brand image |
|
2.Fast delivery time. We are 13 years factory , we produce the rolling door motor/rolling shutter motor/roller door motor/roller shutter motor and bracket by ourself,so we can reduce the delivery time, normally 7- 15 working days. |
|
3.Strict quality control systerm Make sure all the rolling door motor/rolling shutter motor/roller door motor/roller shutter motor we produced are alll in good quality. |
|
4.Good customer service. 24 hours online waiting |
|
5.Rich Experience in rolling door motor/rolling shutter motor/roller door motor/roller shutter motor We sepcialized in rolling door motor/rolling shutter motor/roller door motor/roller shutter motor for 13 years. |
If you wanna konw more about our products , contact me whenever you feel free.
Name : Zoey
Tel : 0086 153 0596 6441(Whats APP & Viver ID)
Email : haohuamotor2 (at)
Skype : haohuamotor2
