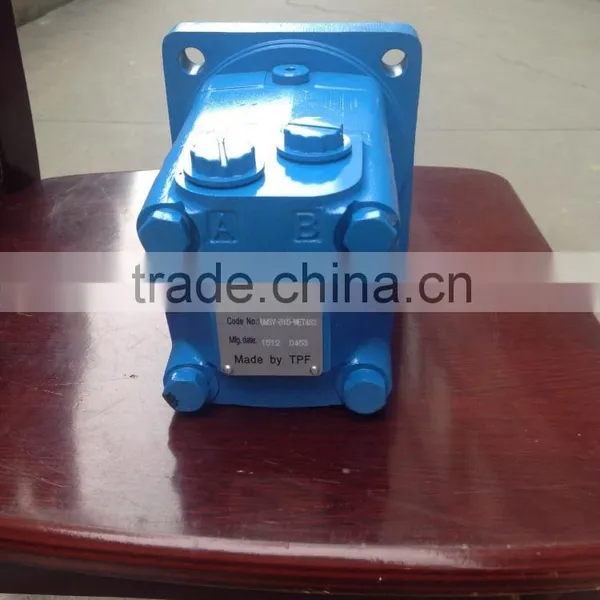

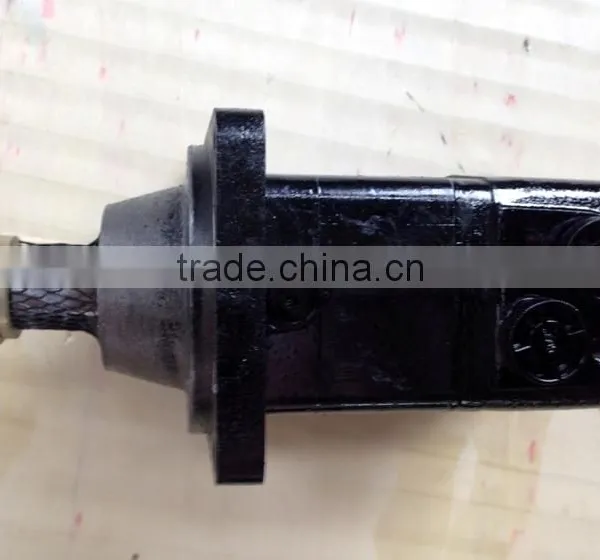

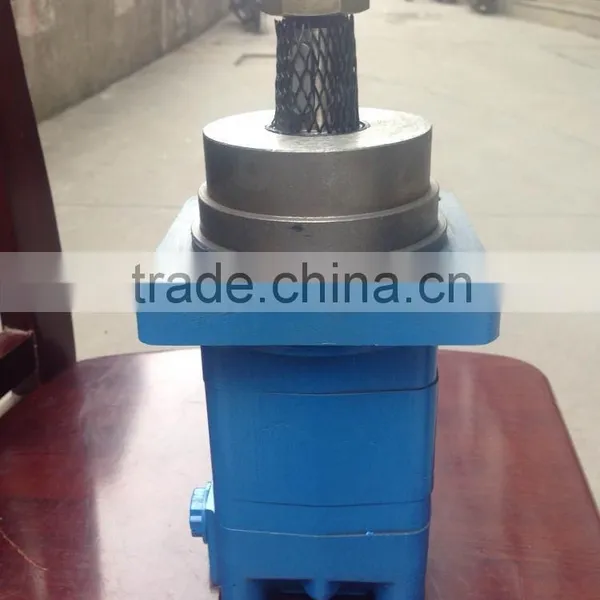

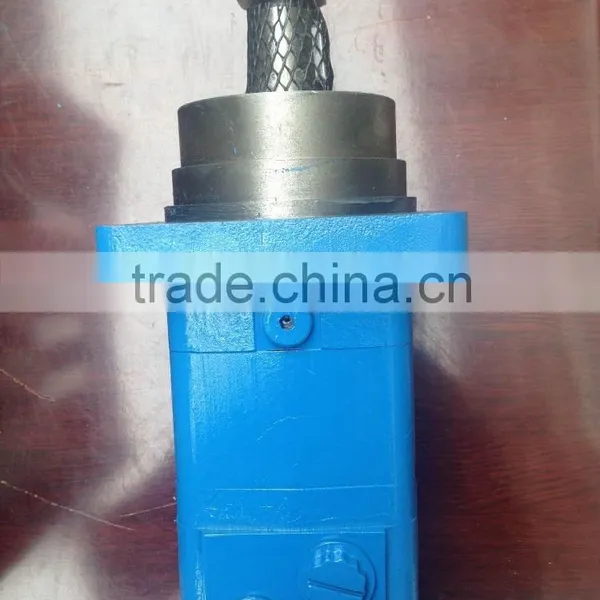

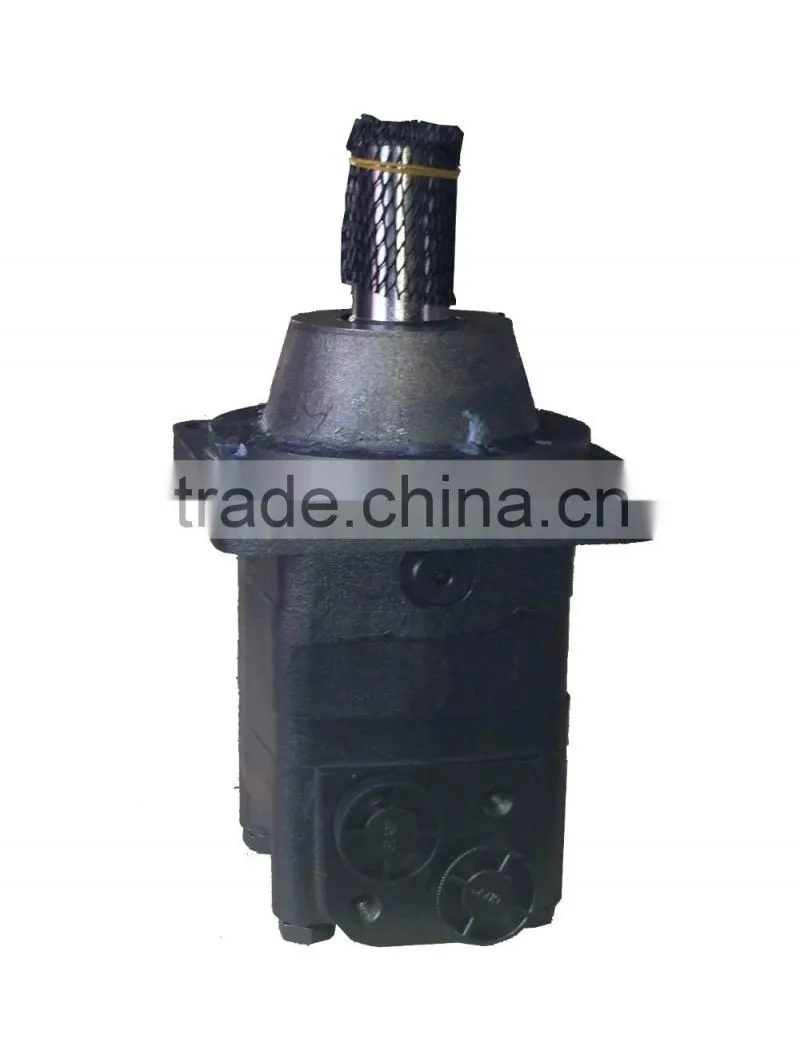

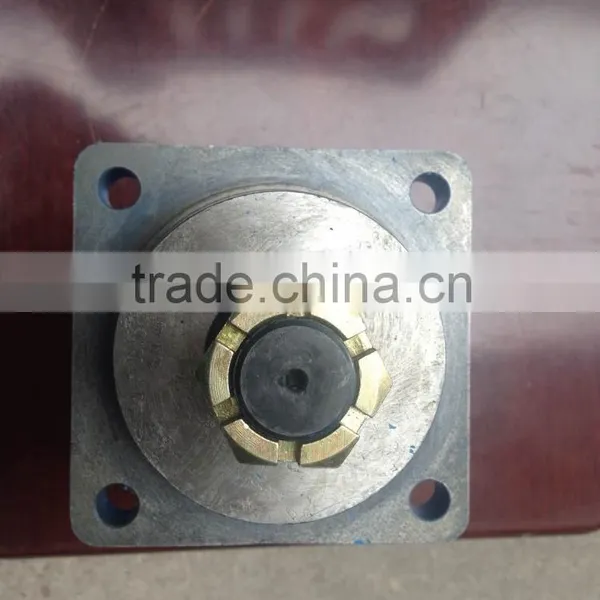

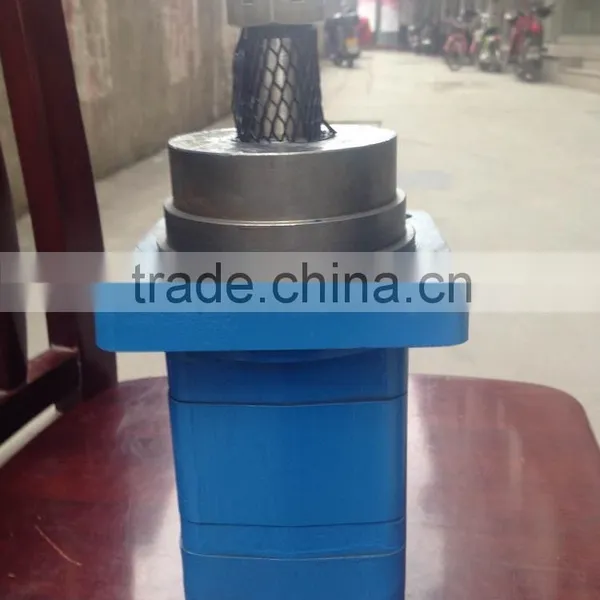

BMSY-W Series low speed high turque hydraulic drive wheel motor
One type of LSHT wheel motor ,which is located near the center of the motor which permits part or all of the motor to be located inside the wheel or roller hub. This wheel motor mounting flange provides design flexibility in many applications.
| Type | BMSY-w | BMSY-w | BMSY-w | BMSY-w | BMSY-w | BMSY-w | BMSY-w | BMSY-w | BMSY-w | |
| 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Displacement (cm3/rev.) | 80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | |
| Max. speed (rpm) | rated | 675 | 540 | 432 | 337 | 270 | 216 | 171 | 135 | 110 |
| cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 | |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
|
Max. torque (N•m) |
rated | 175 | 220 | 273 | 445 | 505 | 620 | 700 | 765 | 780 |
| cont. | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 | |
| int. | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | |
| Max. output (kW) | cont. | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 |
| int. | 20 | 22 | 23 | 25 | 24 | 23.8 | 20.2 | 12 | 11 | |
| ure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 |
| int. | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | |
| peak | 29.5 | 29.5 | 29.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max.inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | |
| Options | Application: | |
| - Model - Disc valve, roll-gerotor; | • Skid-steer attachments | |
| - Flange and wheel mount; | • Swing motors | |
| - Shafts - straight, splined and tapered; | • Brush cutters & Mowers | |
| - Metric/UNC and BSPP ports; | • Harvesting equipment | |
| -Side and rear ports | • Directional boring | |
| - Motor with BK2 Brake; | • Winch | |
| -Motor with Drum Brake | • Auger | |
| - Color-Blue, grey ,black ,yellow ; |
Characteristic featutres:
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and
reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers
capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
* The new series motor is suitable for vehicles with greater loads and pressure drop.
