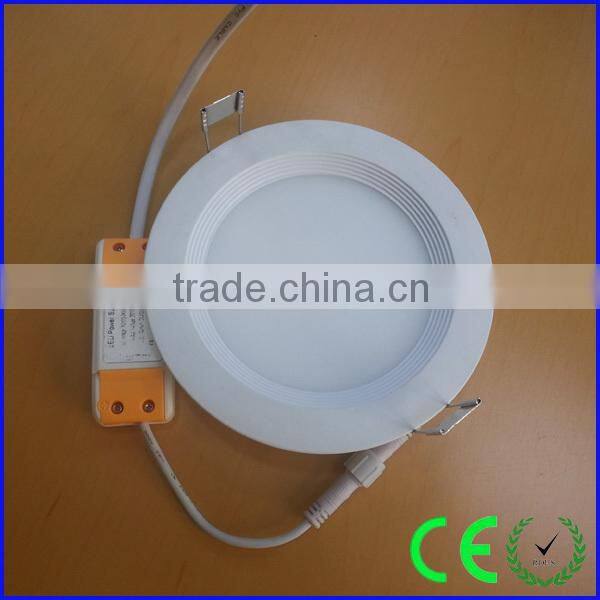

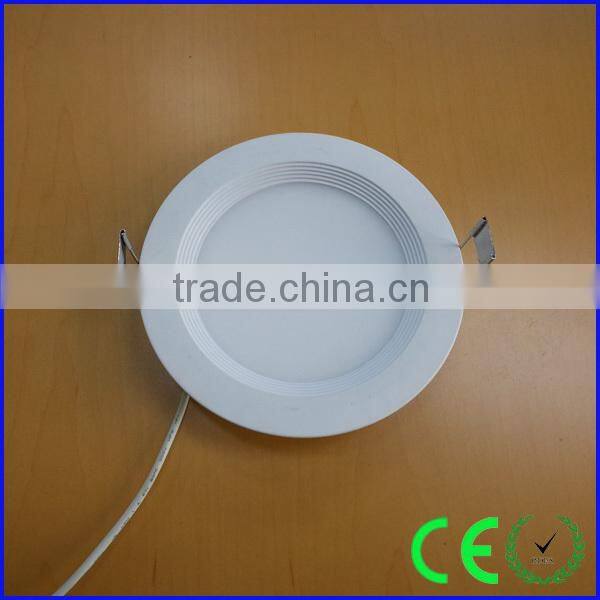

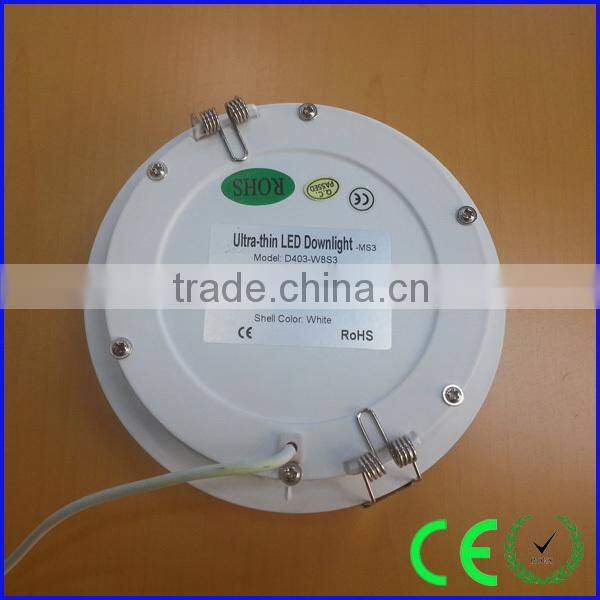

high quality aluminum alloy 4 inch 8w shenzhen led panel light

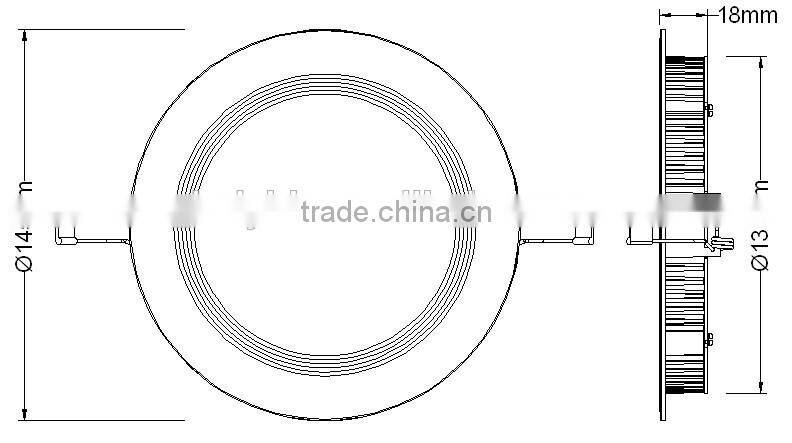

Specifications
| Size | Model NO. | Watt | Luminous Flux | Dimension | Cutout Size |
| 4 inch | YHH-D403-W8S3 | 8W | 640LM | φ145*H18MM | φ130MM |
| 5 inch | YHH-D503-W12S3 | 12W | 960LM | φ180MM*H18MM | φ160MM |
| 8 inch | YHH-D803-W15S3 | 15W | 1200LM | φ240MM*H18MM | φ220MM |
| 12 inch | YHH-1203-W20S3 | 20W | 1600LM | φ300MM*H18MM | φ280MM |
Parameters
| Material | Aluminous alloy |
| Input voltage | AC90-265V, 50/60Hz |
| LED chip | SMD LED |
| Color temperature |
Warm White(2800-3500k); Pure White(4000-4500k); Cool White(5500-6500k) |
| Beam angle | 120 degrees |
| Efficiency | Energy-saving efficiency>90%; CRI>80; PF>0.90 |
| Color of housing | White |
| Working temperature | -25℃~55℃ |
| Life span | >50000 hours |
| Lumin drop |
1000hrs under 2%, 10000hrs under 10%, 40000hrs under 30%, While average using under 12hrs per day |
| Warranty | 3 years |
| Certificate | CE, RoHS |
| Application |
Products are widely used as indoor illumination lighting in specialty stores, hotel kitchen, shopping malls, offices, factories, supermarkets, exhibitionss, etc. |
Features and Advantages
1) Green Illumination
No strobing during working, fast response(no delay), no damage with frequency switching and energy saving 90% than conventional panel lights.
2) Circuit Design
Constant current isolated circuit design with wide voltage range and wide frequency.Itis not only safe, but also small measurement with high efficiency and high power factor.
3) Long lifespan
Introduce the advanced thermal management technology of LED from Japan. The light decay of products is very low and the lifespan is above 50,000 hours.
Porduct show
Office and Factory
Packaging Details
| Quantities /box |
Packing size each piece |
Packing size each box |
Net weight | Gross weight |
| 40PCS | 255*195*45MM | 525*485*405MM | 310g/PCS | 17.0KG/Carton |
Instruction before installation.
1) This product is used indoor lighting, without waterproof function; It is forbidden in application environment of outdoor, humidity, high temperature, whole sealing or Flammable & explosive.
2) CE passed products; Installation should be carried out by the professional electrician according to our provided wiring diagram strictly.
3) Keep the products in the environment of dry, shady and clean if do not used for a long period.
4) Make sure the input voltage match the led tubes'input voltage.
5) Non dimmable, do not operate with a dimmer.
6) For protecting your rights, please do not disassemble the led tubes or replace its component before get our agreements when led tubes can't work.
7) Above parameters will be changed by updating, it is for your reference
