Home > Products > CL- Winding Machine > Cone yarn winding machine (CL-2A) bobbin winder

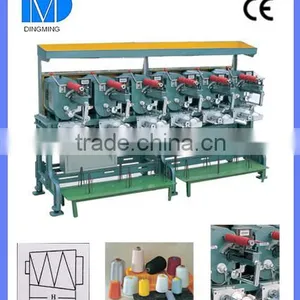

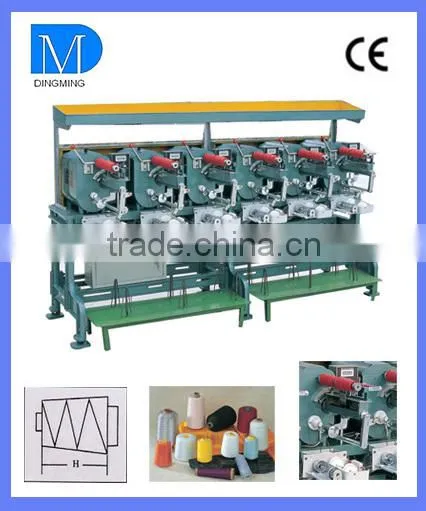

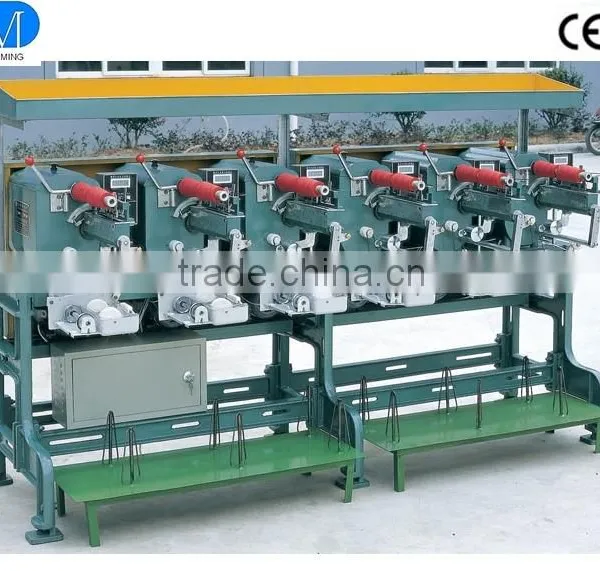

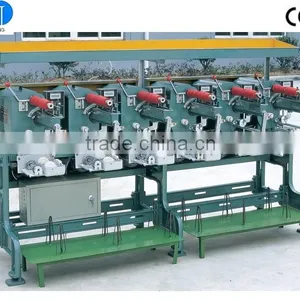

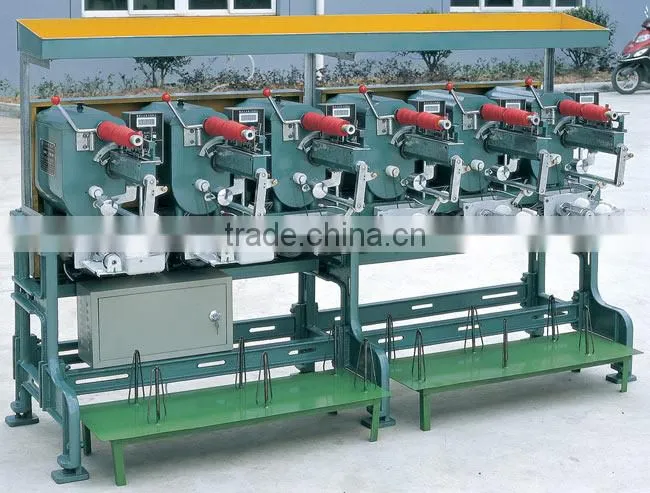

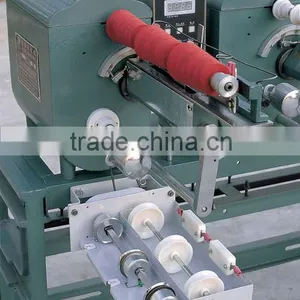

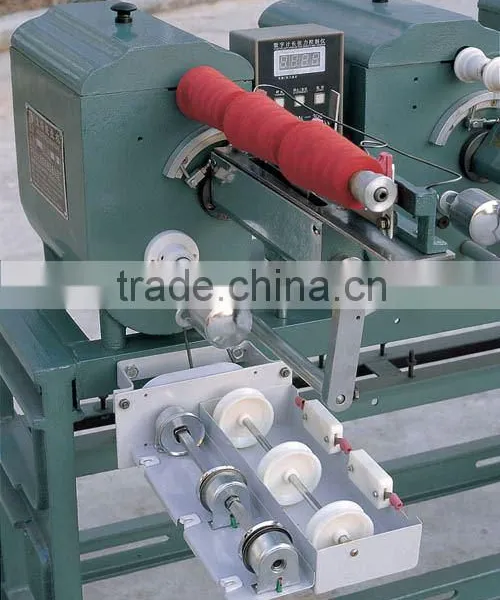

Cone yarn winding machine (CL-2A) bobbin winder
USD $1,500 - $1,600
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- Ningbo Port.
- T/T L/C Credit Card
You May Like
-
Bobbin winder CL-2B embroidery thread winding machine
-
rewound bobbin winder CL-2D textile machinery
-
Cylinder type yarn winder CL-2B and reel winding machine
-
King spooling thread winding machine (CL-2C)
-
CL-2C 6 spindle sewing thread winding machine
-
Y-cone type Winding machine CL-2C thread cone winder
Product Details
| Condition | New | Type | Winder Machine | |
| Place of Origin | Zhejiang, China | Brand Name | DingMing | |
| Model Number | CL-2A | Spinning Method | Ring Spinning | |
| Automatic | Other, semi-automatic | Dimension(L*W*H) | 2.15m*0.8m*1.15m | |
| Weight | 400KG, 500Kg | Power(W) | 1080W | |
| Certification | CE, CE | After-sales Service Provided | Overseas service center available |
Product Description
Product Description
CL-2A cone winding machine(thread winder) is applicable for winding sewing thread , polyester yarn , mercerized yarn , high stretch yarn etc into differenct specifications of cones , from 1.6 inches to 8.0 inches.
1.It is equipped with new generation digital tension force controller.
2. It is equipped with auto-memory upon power failuredevice.
3. It is equipped with auto-stop upon thread breaking apparatus.
4. It is equipped with silicone oil up device .
5. It is highly accepted by most thread factories , garments factories , and trade companies from africa , middle east , arabian coutries , asia , and south america .
5. It is highly accepted by most thread factories , garments factories , and trade companies from africa , middle east , arabian coutries , asia , and south america .
We also make other types of thread winding machines as follows:
cylinder type thread winding machine;
Y-cone thread winding machine;
high speed thread winding machine;
automatic bobbin winder;
pre-wound bobbin winder;
dental floss bobbin winder;
thread winder;
and we also supply other textile machines which are relevant to thread industry.
We are sure of our soonest respond to your inquiry!
CL-2A | 4'' | 5'' | 6'' |
No of spindles | 6 | 6 | 6 |
Cone for each spindle | 2 | 2 | 1or 2 |
Thread length | 0-10000M | 0-15000M | 0-30000M |
Motor | 380V/220V 50HZ 180W×6 | ||
Machine volume | 2.25(or2.08)ML×0.7MW×1.15MH/2.25(or2.08)ML×0.80MW×1.15MH | ||
Weight of the machine | 420KG | ||
Measurement | 2.35(or2.17)ML×0.8MW×1.25MH/2.35(or2.17)ML×0.90MW×1.25MH | ||
Weight | 550KG | ||
