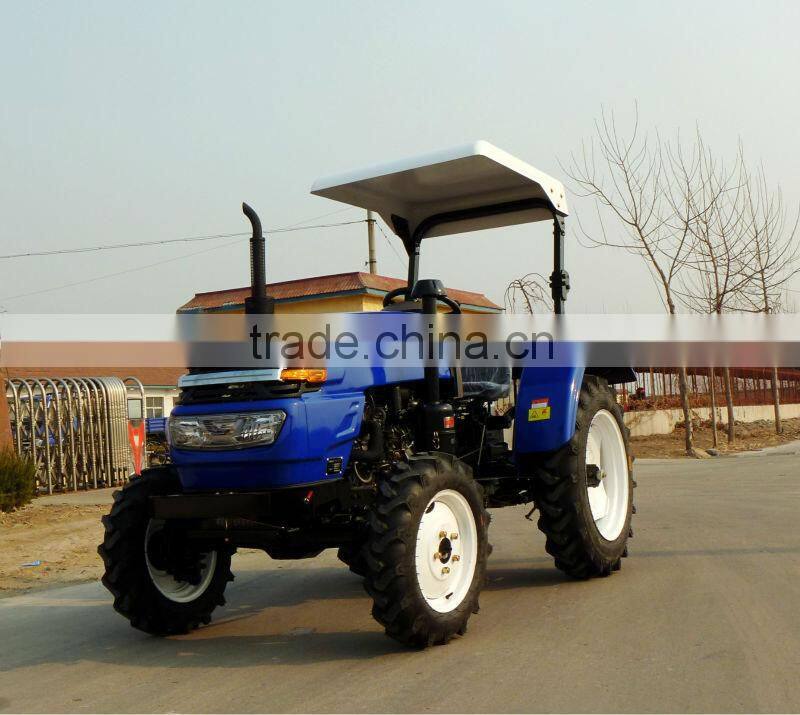

2014 new 18hp 20hp 24hp 25hp 30hp 35hp 40hp tractor for farm and garden

Tractor   Parameters

Model

304

Drive   Type

4WD

Overall   Dimensions L×W×H(mm)

2860X1220X1380

Wheel   Track(mm)

Front

1200

Rear

1242

Wheel   Base(mm)

1730

Ground   Clearancre(mm)

Under   Front Axle

300

Under   Rear Axle

345

Rated   Traction   Force(N)

In   Paddy Fields

4950

In   Dry Fields

6940

Construction   Mass(Kg)

1560

Min.   Turning Radius(m)

2.40

Theoretical   Speed(Km/h)

Forward

1.28,1.86,2.98,4.50,6.65,9.63,15.45,23.33

Reverse

1.29,1.87,3.00,4.53,6.70,9.70,15.56,23.50

Engine   Specifications

Model

LD3T30

Type

3-cylinder,4-storke   cycle,radiator cooling

12-hour   Rated Power(Kw/hp)

22.0/30.0

Rated   Speed(rpm)

2400

Bore×Stroke(mm)

90×95

Total   Displacement(L)

1.812

Drive   System

Clutch

Dual-stage   Or Single-stage

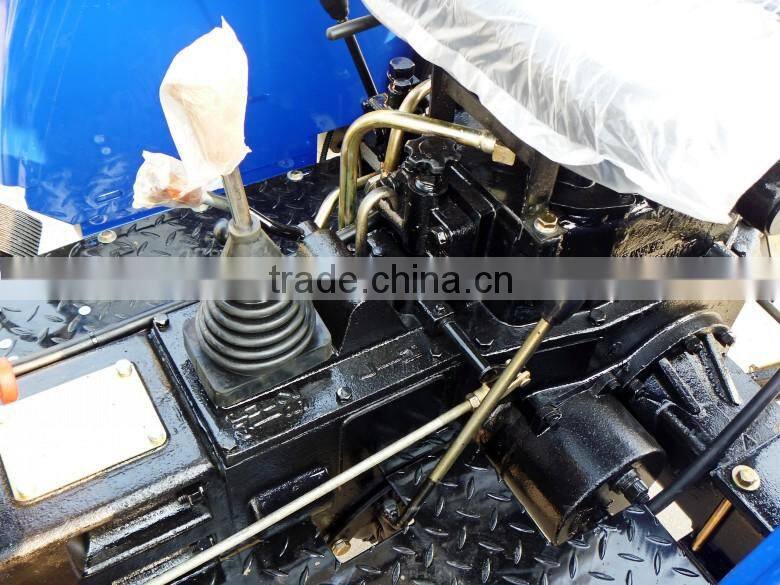

Gear   Box

(4+2)×2   Shuttle shift syuchmesh

Main   Drive

One   Pair of Spiral Bevel gears

Differential

Bevel   Gear

Differential   Lock

Jaw   Lock

Final   Transmissions

Spur   Gear, External Gearing

Travelling   Mechanism

Tyre

front

6.50-16(stripe   pattern)

rear

11.2-24(herringbone   pattern)

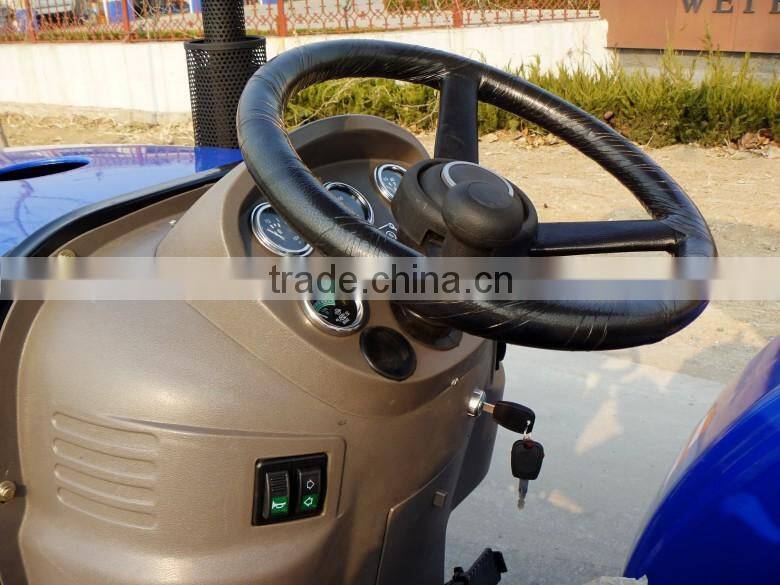

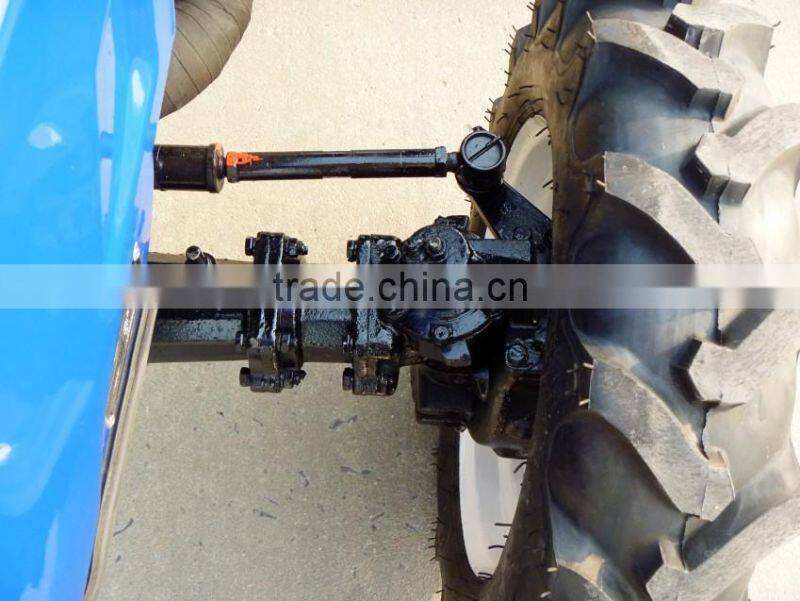

Steering   Gear

Full   Hydraulic steering

Brake

Disk   type

Working   Device

Hydraulic   System

Lifting   Capacity at   610 mm Behind Lift   Point(Kg)

415kg

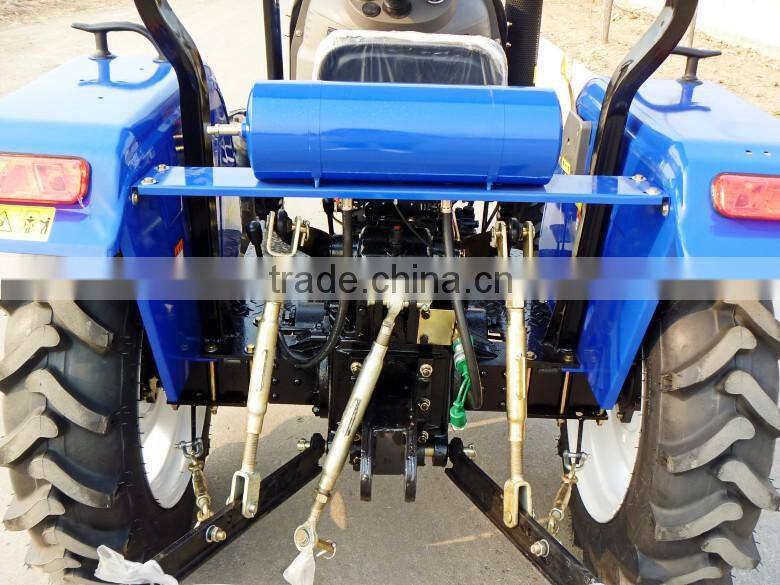

3-point   Suspension

Category:I

P.T.O.Shaft

Rotating   Speed(rpm)

540/1000   or 540/720

Spline   size

6-φ35   Rectangular spline
