Home > Consumer Electronics > Display & Accessories > LCD Module > Homochromatism Cob 240128 Dots LCD Module (GH240128-5109)

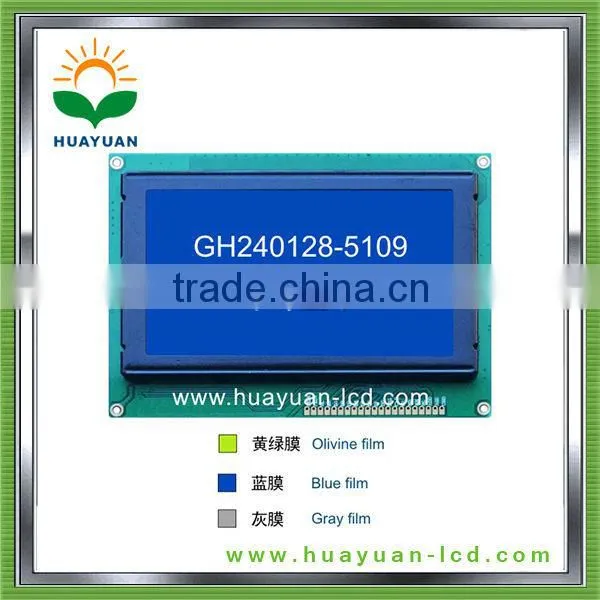

Homochromatism Cob 240128 Dots LCD Module (GH240128-5109)
US$ 1 - 30
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Huayuan
Model Number:
GH240128-5109
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Airport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.3inch Stn 192x64 Dots Lcd Display Module Composite With Controller Ks0107US$ 1 - 10MOQ: 100 Pieces -
5.7 Inch Graphic LCD Display Module STNUS$ 1 - 40MOQ: 100 Pieces
-
320*240 Dot Matrix TAB/STN Graphic LCD Monitor GH320240-5701US$ 1 - 40MOQ: 100 Pieces
-
5.1inch 240x128 Dots Cob/stn Display Lcd Module HdmiUS$ 1 - 30MOQ: 100 Pieces
-
5.1inch Backlight Y-G LED White COB/STN Graphic Lcd Screen PanelUS$ 1 - 30MOQ: 100 Pieces
Place of Origin
Hunan, China
Brand Name
Huayuan
Model Number
GH240128-5109
Type
Graphic
Specifications
1. homochromatism cob 240128 dots LCD Module (GH240128-5109)2.Rohs and ISO 9001:2008 Certification
3.OEM,ODM can accept
Basic Parameter
homochromatism cob 240128 dots LCD Module (GH240128-5109)
| Model: | GH240128-5109 |
| Construction | COB |
| Display Type | STN,Negative or Positive ,Transmissive |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20°c~70°c |
| Storage Temperature (degree Celsius) | -30°c~80°c |
| Viewing Direction | 6:00 |
| Dot Matrix | 240*128 |
| Viewing Area | 114.00*64.00 |
| Active Area | 107.50*57.55 |
| Outline Dimension | 144.00*104.00*12.00 |
| Controller | RA8806 or equivalent controller |
| Backlight | LED,Y-G,White |
Outline Drawing
Interface definition describe
|
Number |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 |
|
interface definition |
FG | VSS | VDD | VADJ | WR# | RD# | CS# | RS | BUSY | RST# | D0 | D1 | D2 | D3 | D4 | D5 | D6 | D7 | FS | VLCD | LED+ | LED- |
Product Range
1. TN.STN.FSTN.TFT Panel/Module
2. Customized LCD Panel/Module
3. OEM.ODM are accept
Similar Product
| Part Number | V.A Size(L*Wmm) | Active area | Description | Controller | Outline Dimension |
| GH240128-5101 | 114.00*64.00mm | 107.50*57.55mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | T6963 | 144.00*104.00*12.00mm |
| GH240128-5102 | 114.00*64.00mm | 107.50*57.55mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | T6963 | 144.00*104.00*12.00mm |
| GH240128-5103 | 114.00*64.00mm | 107.50*57.55mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | RA8820 | 144.00*104.00*12.00mm |
| GH240128-5107 | 114.00*64.00mm | 107.50*57.55mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | T6963 | 144.00*104.00*12.00mm |
| GH240128-5108 | 114.00*64.00mm | 107.50*57.55mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | T6963 | 144.00*104.00*12.00mm |
| GH240128-5109 | 114.00*64.00mm | 107.50*57.55mm | STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V | RA8806 | 144.00*104.00*12.00mm |
| GH240128-5110 | 115.00*64.50mm | 107.95*57.55mm | STN/COG,6:00/3.3V,5V | UC1698U | 144.00*104.00*10.00mm |
Main Application
