Specifications
STN COG lcd module 128x64customized product acceptable
Rohs compliance available
OEM Product Design / Production
The module datasheet

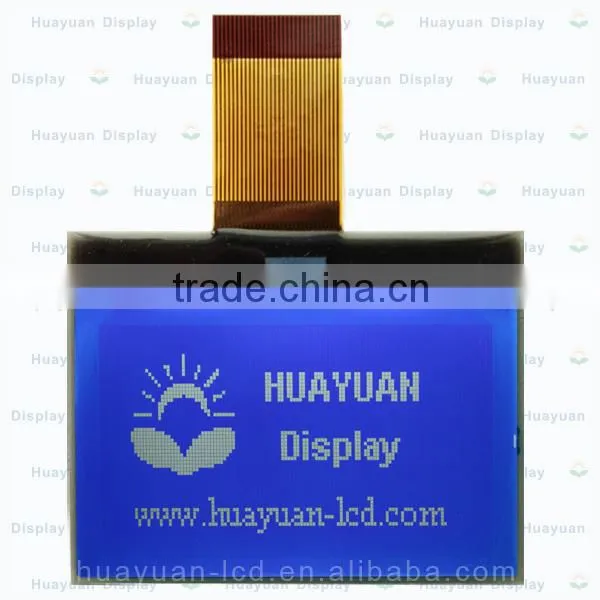

STN COG lcd module 128x64
| Model: | GH12864-2501 |
| Construction | COG |
| Display Type | STN |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20~70 |
| Storage Temperature (degree Celsius) | -30~80 |
| Viewing Direction | 06:00 |
| Dot Matrix | 128*64 |
| Viewing Area | 48.00*36.00 |
| Active Area | 44.77*30.05 |
| Outline Dimension | 54.00*45.00*5.50MAX |
| Controller | ST7565R |
| Backlight | LED,White |
The Layout Drawing
The Pin Definition
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| NC | NC | NC | NC | VLCD | V+ | V- | B- | B+ | VSS |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| VDD | BM1 | BM0 | D7 | D6 | D5 | D4 | D3 | D2 | D1 |
| 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| D0 | WR1 | WR0 | CD | RST | CS0 | NC | NC | NC | NC |
