5.7inch graphic 320x240 dot matrix projector lcd module
- 1000000 Piece / Pieces per Month
- Shenzhen airport
- T/T
- 128x64 2.5 inch cog lcd module
- COG STN 12864 lcd module
- tab/stn 5.7inch lcd display module compatible with (AMPIRE)AG320240
- 5.7inch 320x240 graphic lcd module Compatible with (Nanya) LMBGANA32S
- 320240 resolution monochrome lcd display module Compatible with (MICROTIPS)NMTG-S320240
- STN cob truly lcd module
Product Details
Place of Origin: | Hunan, China | Brand Name: | Huayuan | Model Number: | GH320240-5702 |
Type: | TAB |
Packaging Details
Standard package and we can have a negotiation if you have special package request
Product Description
Basic parameter
projector lcd module
Model: | GH320240-5702 |
Construction | TAB |
Display Type | STN,Negative,Transmissive |
Operating Voltage (VDD) | 5V |
Backlight Voltage(VBL) | 5V |
Operating Temperature (degree Celsius) | -20°C~70°C |
Storage Temperature (degree Celsius) | -30°C~80°C |
Viewing Direction | 6:00 |
Dot Matrix | 320*240 |
Viewing Area | 121.00*91.60 |
Active Area | 115.17*86.37 |
Outline Dimension | 165.55*109.00*6.80 |
Controller | NT7701 or equivalent controller |
Backlight | CCFL,LED,White |
Outline Drawing
Interface definition describe
Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
interface definition | S | CL1 | CL2 | NC | DISP OF | D0 | D1 | D2 | D3 | VDD | VSS | VEE |
Product Range
1. TN.STN.FSTN.TFT Panel/Module
2. Customized LCD Panel/Module
3. OEM.ODM are accept
Similar Product
Part Number | V.A Size(L*Wmm) | Description | Controller | Outline Dimension |
GH320240-4701 | 103.00*79.00mm | STN/TAB,LED,WHITE/6:00/3.3V,5V | NT7701 | 139.00*100.00*8.50mm |
GH320240-4702 | 103.00*79.00mm | STN/TAB,LED,WHITE/6:00/3.3V,5V | RA8835 | 139.00*100.00*8.50mm |
GH320240-5701 | 122.00*92.00mm | STN/TAB,LED,WHITE/6:00/3.3V,5V | NT7701 | 166.75*109.00*10.60mm |
GH320240-5702 | 121.00*91.60mm | STN/TAB,CCFL,LED,WHITE/6:00/3.3V,5V | NT7701 | 165.55*109.00*6.80mm |

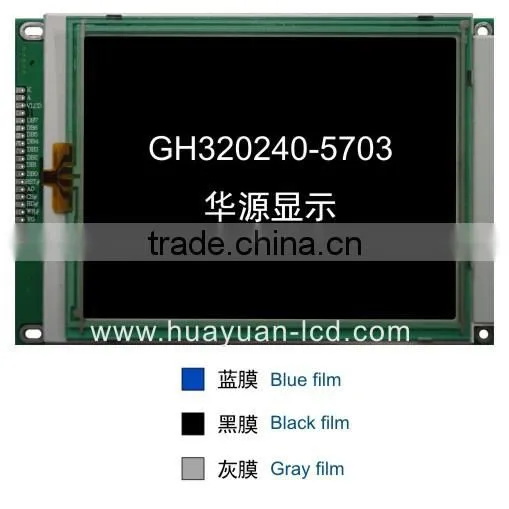

GH320240-5703 | 122.00*92.00mm | STN/TAB,LED,WHITE/6:00/3.3V,5V | RA8835 | 159.7*109.00*10.60mm |
GH320240-5703D | 122.00*92.00mm | STN/TAB,LED,WHITE/6:00/3.3V,5V | SID13700 | 159.7*109.00*10.60mm |
GH320240-5703TP | 122.00*92.00mm | STN/TAB,LED,WHITE/6:00/3.3V,5V | RA8835 | 159.7*109.00*12.00mm |
