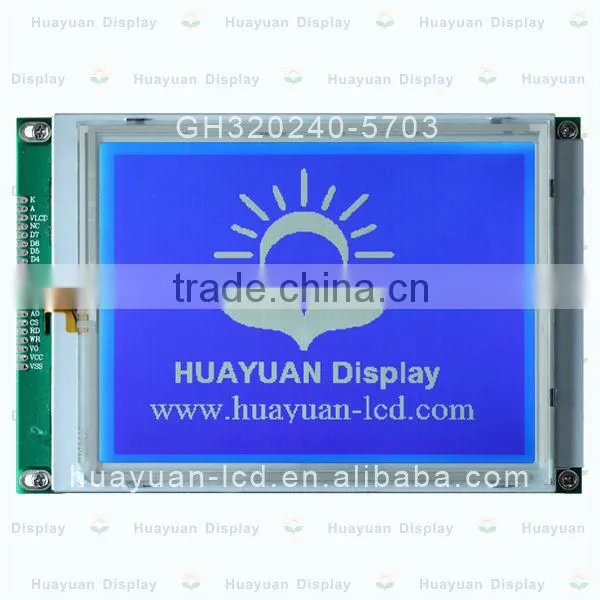

China ManufactureTAB/STN Graphic LCD Screen Module 320x240  with led backlight for Operating Panel



Operating Voltage (VDD) 3.3V,5V
Backlight Voltage(VBL) 3.3V,5V
Operating Temperature (degree Celsius) -20°c~70°c
Storage Temperature (degree Celsius) -30°c~80°c
Viewing Direction 12:00
Dot Matrix 320*240
Viewing Area 122.00*92.00
Active Area 115.17*86.37
Outline Dimension 159.70*109.00*10.60
Controller RA8835 or equivalent controller
Backlight LED,White





 Outline Drawing





Interface definition describe
GH320240-5703
Number 		CN1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

interface definition 		RST# RD# WR# CS# A0 D0 D1 D2 D3 D4 D5 D6 D7 VDD VSS VEE V0 SK D0 D1 CS INT A K

Number 		CN2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

interface definition 		VSS VDD V0 A0 WR# RD# D0 D1 D2 D3 D4 D5 D6 D7 CS# RST# VEE SEL1 SK CS D1# D0# PENIRQ K IN3 IN4

Number 		CN5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

interface definition 		VSS VDD V0 V0 WR# RD# CS# A0 D0 D1 D2 D3 D4 D5 D6 D7

Number 		CN3/CN6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

interface definition 		VSS VCC V0 WR# RD# CS# A0 RST# D0 D1 D2 D3 D4 D5 D6 D7 NC VEE A K





Product Range



1.  TN.STN.FSTN.TFT Panel/Module

2.  Customized LCD Panel/Module

3.  OEM.ODM are accept



Similar Product





Part Number V.A Size(L*Wmm) Description Controller Outline Dimension
GH320240-4701 103.00*79.00mm STN/TAB,LED,WHITE/6:00/3.3V,5V NT7701 139.00*100.00*8.50mm
GH320240-4702 103.00*79.00mm STN/TAB,LED,WHITE/6:00/3.3V,5V RA8835 139.00*100.00*8.50mm
GH320240-5701 122.00*92.00mm STN/TAB,LED,WHITE/6:00/3.3V,5V NT7701 166.75*109.00*10.60mm
GH320240-5702 121.00*91.60mm STN/TAB,CCFL,LED,WHITE/6:00/3.3V,5V NT7701 165.55*109.00*6.80mm
GH320240-5703 122.00*92.00mm STN/TAB,LED,WHITE/6:00/3.3V,5V RA8835 159.7*109.00*10.60mm
GH320240-5703D 122.00*92.00mm STN/TAB,LED,WHITE/6:00/3.3V,5V SID13700 159.7*109.00*10.60mm
GH320240-5703TP 122.00*92.00mm STN/TAB,LED,WHITE/6:00/3.3V,5V RA8835 159.7*109.00*12.00mm
