Fstn Graphic LCD Panel 160x160 Dots Cog With Uc1698 Controller

Fstn Graphic LCD Panel 160x160 Dots Cog With Uc1698 Controller thumbnail-1
Fstn Graphic LCD Panel 160x160 Dots Cog With Uc1698 Controller photo-1
US$ 1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Huayuan
Model Number:
GH160160-3401
Contact Supplier Request Quote Chat Now
Shenzhen Huayuan Display Technique Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name Huayuan
Model Number GH160160-3401
Type Graphic

Specifications

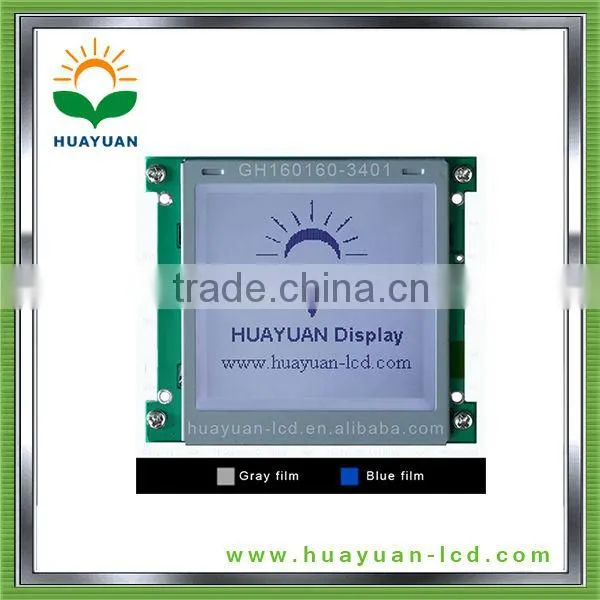

1. fstn Graphic LCD Panel 160x160 dots cog with uc1698 controller
2.Rohs and ISO 9001:2008 Certification
3.OEM,ODM can accept

The Module Datesheet



Model: GH160160-3401
Construction COG
Display Type FSTN
Operating Voltage (VDD) 3.3V
Backlight Voltage(VBL) 3.3V,5V
Operating Temperature (degree Celsius) -25°C~70°C
Storage Temperature (degree Celsius) -30°C~80°C
Viewing Direction 6:00
Dot Matrix 160*160
Viewing Area 60.00*60.00
Active Area 54.38*54.38
Outline Dimension 83.80*76.50*8.20MAX
Controller UC1698
Backlight LED,White



 The Layout Drawing







Interface definition describe




Number		 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

interface definition		 VSS RS WR RD CS RST VDD D0 D1 D2 D3 D4 D5 D6 D7 K NC A





Product Range



1.  TN.STN.FSTN.TFT Panel/Module

2.  Customized LCD Panel/Module

3.  OEM.ODM are accept





Similar Product



Part Number V.A Size(L*Wmm) Description Controller Outline Dimension
GH160160-3401 60.00*60.00mm FSTN/COG.LED,WHITE/6:00/3.3V/3.3V,5V UC1698 83.80*76.50*8.20mm
GH160160-3402 60.00*60.00mm FSTN/COG.LED,WHITE/6:00/3.3V/3.3V,5V UC1698 82.20*77.50*8.20mm
GH160160-3403 60.00*60.00mm FSTN/COG.LED,WHITE/6:00/3.3V/3.3V,5V UC1698 82.20*77.50*8.20mm
GH160160-3404 60.00*60.00mm FSTN/COG.LED,WHITE/6:00/3.3V/3.3V,5V UC1698 81.00*73.00*8.20mm
GH160160-3406 60.00*60.00mm FSTN/COG.LED,WHITE/6:00/3.3V/3.3V,5V UC1698 81.39*81.20*9.90mm
GH160160-3407 60.00*60.00mm FSTN/COG.LED,WHITE/6:00/3.3V/3.3V,5V UC1698 81.39*81.20*9.00mm
GH160160-3408 60.00*60.00mm FSTN/COG.LED,WHITE/6:00/3.3V/3.3V,5V UC1698 82.20*77.50*8.20mm
GH160160-3412 60.00*60.00mm FSTN/COG.LED,WHITE/6:00/3.3V/3.3V,5V UC1698 81.20*77.50*8.20mm
GH160160-3421 62.00*61.50mm FSTN/TAB.LED,WHITE/6:00/3.3V/3.3V,5V ST7529 83.80*77.50*8.60mm
GH160160-3425 62.00*61.50mm STN or FSTN/TAB.LED,WHITE/6:00/3.3V/3.3V,5V RA8835 or Compatible IC 84.00*78.00*8.60mm
GH160160-3426 62.00*61.50mm STN or FSTN/TAB.LED,WHITE/6:00/3.3V/3.3V,5V NT7701 or Compatible IC 84.00*78.00*8.60mm
GH160160-3429 62.00*61.50mm FSTN/TAB.LED,WHITE/6:00/3.3V/3.3V,5V ARM 83.80*77.50*8.60mm
