Help Center2.5" 2X16 Dot Matrix Monochrome Lcd Display Splc780d
Related Products
-
3.1" SPLC780D Cob Resistive Lcd 3.3V 4X20US$ 1 - 5MOQ: 100 Pieces -
2X16 Character Lcd Display ST7066U Controller Lcd Module 3.3V Character LCD MODULEUS$ 1 - 10MOQ: 100 Pieces
-
Backlighting Lcd Modules Mini 16*2,chinese Character Lcd Modules Mini 16*2,cheap Lcd Modules Mini 16*2US$ 1 - 6MOQ: 100 Pieces
-
New Lcd 16x2 Products DatasheetUS$ 1 - 5MOQ: 100 Pieces
-
Alphanumeric 16X2, 16x2 LCD Display COB ModulesUS$ 1 - 5MOQ: 100 Pieces
The Module Datesheet
2.5" 2X16 dot matrix ccfl backlight lamps splc780d
| Model: | GH1602-2501 |
| Construction | COB |
| Display Type | STN |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20°C~70°C |
| Storage Temperature (degree Celsius) | -30°C~80°C |
| Viewing Direction | 6:00 |
| Dot Matrix | 16x2 |
| Viewing Area | 64.5*13.8 |
| Active Area | 55.45*10.75 |
| Outline Dimension | 84.0*44.0*13.0 |
| Controller | SPLC780D |
| Backlight | LED,White |
The Layout Drawing
Interface definition describe

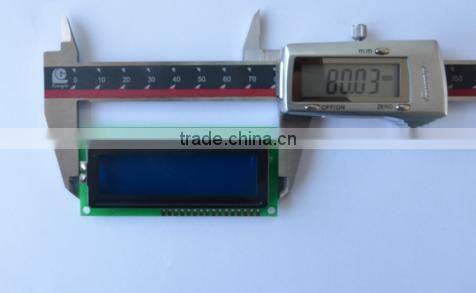

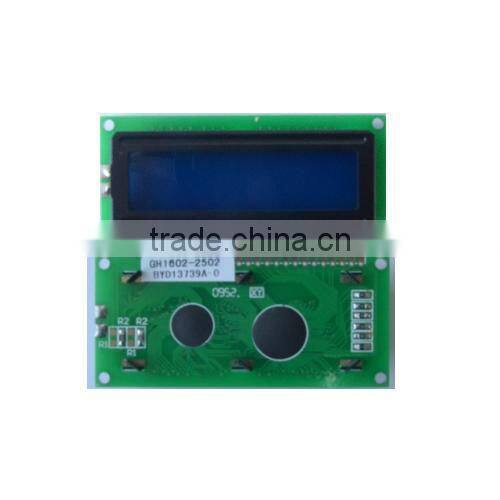

Product photos
2.5" 2X16 dot matrix ccfl backlight lamps splc780d
How to running the orders with old customers?
Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2.According to your details, we give you some advise and good price.
Step3.Negotiate the technical dates after that we will send you the exact quotation
Step4.You arrange the tooling charge payment.
Step5.We make design paper and waiting for your confirmation in two days.
Step6.We make new samples for your testing with in two weeks
Step7.After samples confirmed, we are running the production.
Step8.You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you .believe we are you best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
Tom zhang
