Product Details
Place of Origin | Hunan, China | Brand Name | HUAYUAN | |
Model Number | GH1602-2201, GH1602-2201 | Type | Graphic |
Cartons,Blister Tray. About how many products in one package, it is up to the size of products
Product Description
The Module Datesheet

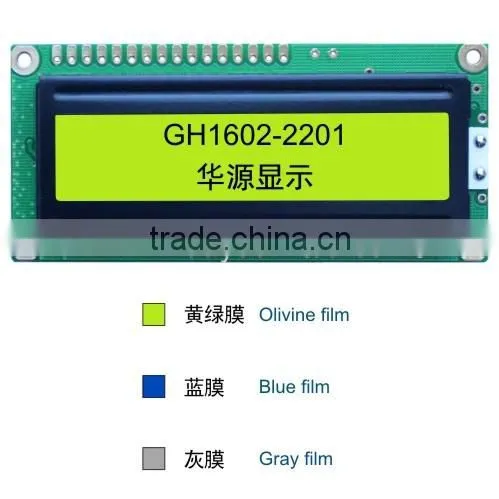

16X2Graphic lcd screen display,ST7066U Controller lcd module 3.3V Monitor LCD MODULE
Model: | GH1602-2201 |
Construction | COB |
Display Type | STN,Negative or Positive ,Transmissive |
Operating Voltage (VDD) | 3.3V,5V |
Backlight Voltage(VBL) | 3.3V,5V |
Operating Temperature (degree Celsius) | -20°C~70°C |
Storage Temperature (degree Celsius) | -30°C~80°C |
Viewing Direction | 6:00 |
Dot Matrix | 16*2 |
Viewing Area | 64.50*16.40 |
Active Area | 56.05*11.55 |
Outline Dimension | 80.00*36.00*12.00 |
Controller | ST7066U |
Backlight | LED,Y-G,White |
The Layout Drawing
Interface definition describe
GH1602-2201 | Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
interface definition | VSS | VDD | V0 | RS | WR | E2 | DB0 | DB1 | DB2 | DB3 | DB4 | DB5 | DB6 | DB7 | A | K |
Similar product
Part Number | V.A Size(L*Wmm) | Description | Controller | Outline Dimension |
GH1602-2201 | 64.50*16.40mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*12.00mm |
GH1602-2202 | 65.00*16.00mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*12.00mm |
GH1602-2203 | 60.20*17.90mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*11.50mm |
GH1602-2204 | 38.20*12.82mm | STN/COG.6:00/3.3V,5V | ST70321-0D | 41.20*23.07*7.30mm |
GH1602-2205 | 52.60*15.80mm | STN/COG.6:00/3.3V,5V | UC1701 | 55.60*22.60*5.20mm |
