Home > Consumer Electronics > Display & Accessories > LCD Module > Yellow-Green Transparent Lcd Module 2X16,STN Transparent Lcd Module 2X16,transparent Lcd Module 2X16 Factory Sell

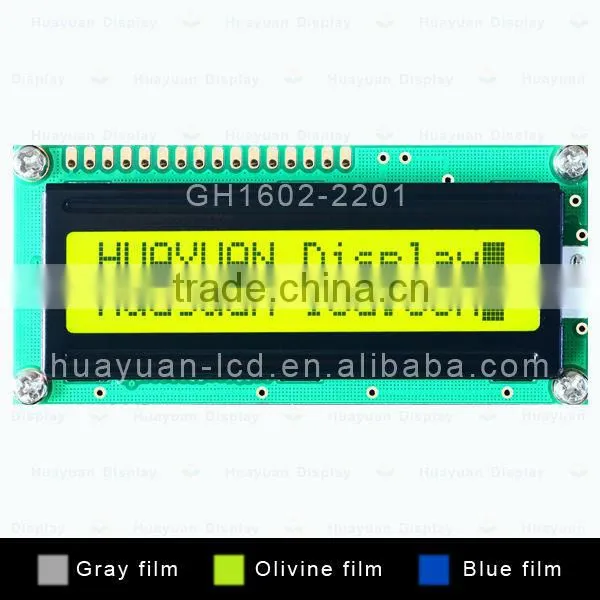

Yellow-Green Transparent Lcd Module 2X16,STN Transparent Lcd Module 2X16,transparent Lcd Module 2X16 Factory Sell
US$ 1 - 8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Huayuan
Model Number:
GH1602-2201
Type:
Character
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 INCHS COB LCD MODULE 122*32 DOT SECURIEY EUQIPMENT SAFETY CHARACTER GRAPHIC MONOCHROME LAPTOP LCD SCREENUS$ 1 - 10MOQ: 1000 Pieces -
3.4 INCHS COB LCD MODULE 160*160 DOT MEDICAL EQUIPMENT CHARACTER GRAPHIC MONOCHROME LAPTOP LCD SCREENUS$ 1 - 10MOQ: 1000 Pieces
-
4.7 INCHS COB LCD MODULE 320*240 DOT CHARACTER GRAPHIC MONOCHROME LAPTOP LCD SCREENUS$ 1 - 30MOQ: 1000 Pieces
-
2 INCHS COB LCD MODULE 122X32 DOT CHARACTER GRAPHIC MONOCHROME LAPTOP LCD SCREENUS$ 1 - 10MOQ: 1000 Pieces
-
2.2 Inchs16X2 LCD MODULE ST7066U Controller Lcd Module 3.3V LCD MODULEUS$ 1 - 10MOQ: 100 Pieces
Brand Name
Huayuan
Model Number
GH1602-2201
Type
Character
Specifications
1.transparent lcd module 2X16 (GH1602-2201)2.Rohs and ISO 9001:2008 Certification
3.OEM Product Design/ Production
Basic Parameter
| Model: | GH1602-2201 |
| Construction | COB |
| Display Type | STN,Negative or Positive ,Transmissive |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20~70 |
| Storage Temperature (degree Celsius) | -30~80 |
| Viewing Direction | 06:00 |
| Dot Matrix | 16*2 |
| Viewing Area | 64.50*16.40 |
| Active Area | 56.05*11.55 |
| Outline Dimension | 80.00*36.00*12.00 |
| Controller | ST7066U |
| Backlight | LED,Y-G,White |
Outline Drawing
Interface definition describe
| Interface definition describe | |||||||||||||||||
| GH1602-2201 |
Number |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|
interface definition |
VSS | VDD | V0 | RS | WR | E2 | DB0 | DB1 | DB2 | DB3 | DB4 | DB5 | DB6 | DB7 | A | K | |
