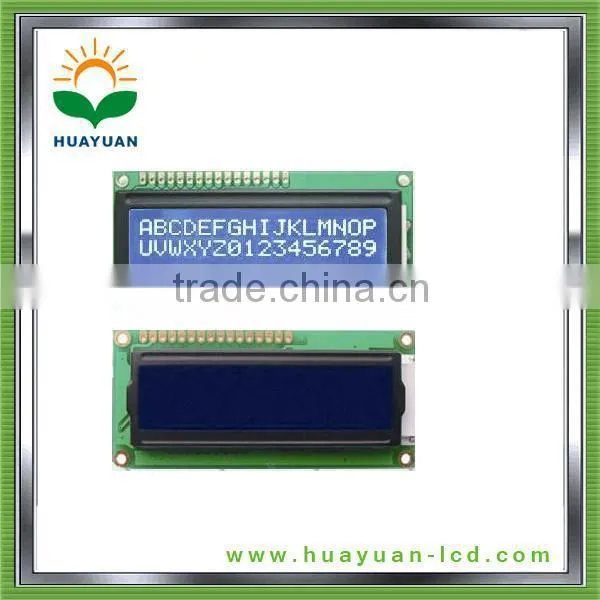

Low Price 16x2 Big Character LCD Monitor With Led Backlight
US$ 1 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Huayuan
Model Number:
GH1602-2201
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen airport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
16x2 Rohs Lcd Display ModuleUS$ 1 - 8MOQ: 100 Pieces -
16x2 Parallel LCD Display, 16 Character 2 Line Lcd Display, Mono Character Lcd Display ScreenUS$ 1 - 10MOQ: 100 Pieces
-
Character Blue 16x2 LCD Display Module Small LCDUS$ 1 - 10MOQ: 100 Pieces
-
16x2 Big Characters LCD(GH1602-2201)US$ 1 - 10MOQ: 100 Pieces
-
1602 Character LCD Module LCMUS$ 1 - 8MOQ: 100 Pieces
Place of Origin
Hunan, China
Brand Name
Huayuan
Model Number
GH1602-2201
Type
Character
Specifications
1.1602 character lcd monitor2.Rohs and ISO 9001:2008 Certification
3.OEM,ODM were acceptance
The Module Datesheet
low price 16x2 big character LCD Monitor with led backlight
| Model: | GH1602-2201 |
| Construction | COB |
| Display Type | STN,Negative or Positive ,Transmissive |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20°c~70°c |
| Storage Temperature (degree Celsius) | -30°c~80°c |
| Viewing Direction | 6:00 |
| Dot Matrix | 16*2 |
| Viewing Area | 64.50*16.40 |
| Active Area | 56.05*11.55 |
| Outline Dimension | 80.00*36.00*12.00 |
| Controller | ST7066U |
| Backlight | LED,Y-G,White |
The Layout Drawing
Interface definition describe
|
Number |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|
interface definition |
VSS | VDD | V0 | RS | WR | E2 | DB0 | DB1 | DB2 | DB3 | DB4 | DB5 | DB6 | DB7 | A | K |
Product Range
1. TN.STN.FSTN.TFT Panel/Module
2. Customized LCD Panel/Module
3. OEM.ODM are accept
Similar Product
| Part Number | V.A Size(L*Wmm) | Description | Controller | Outline Dimension |
| GH1602-2201 | 64.50*16.40mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*12.00mm |
| GH1602-2202 | 65.00*16.00mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*12.00mm |
| GH1602-2203 | 60.20*17.90mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*11.50mm |
| GH1602-2204 | 38.20*12.82mm | STN/COB.6:00/3.3V,5V | ST70321-0D | 41.20*23.07*7.30mm |
| GH1602-2205 | 52.60*15.80mm | STN/COB.6:00/3.3V,5V | UC1701 | 55.60*22.60*5.20mm |
Main Application
The package
