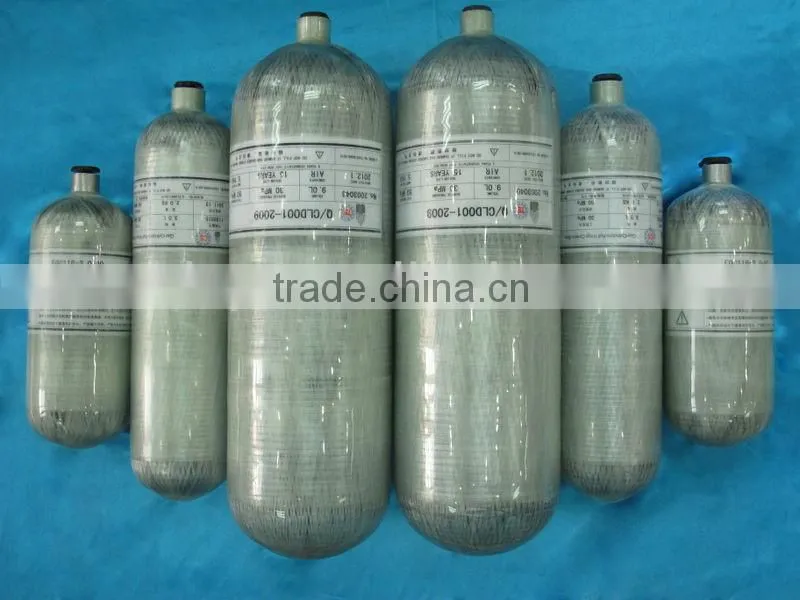

Carbon Fiber Cylinder ,SCBA Cylinder, Scba Tank 2015 Model
US$ 99 - 299
MOQ: 51 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
CLD
Model Number:
EFQC
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SCBA COMPOSITE CYLINDERUS$ 100 - 1,000MOQ: 5 Pieces -
Dive Equipment for Water Sports Field Gas CylindersUS$ 29 - 105MOQ: 50 Pieces
-
Small Gas Diving Cylinders 3.45kg for SellUS$ 30 - 80MOQ: 50 Pieces
-
Aluminum Alloy Safe Scba Cylinders Fire Fighter New ModelsUS$ 97 - 1,306MOQ: 50 Pieces
-
Safety Fire Fighter Use Scuba Tank Filling Pure Oxygen CylindersUS$ 80 - 1,290MOQ: 50 Pieces
Place of Origin
Liaoning, China
Brand Name
CLD
Model Number
EFQC
Advantage:
Our carbon fiber cylinder is made of high quality carbon fiber and glass fiber which imported from Japan.

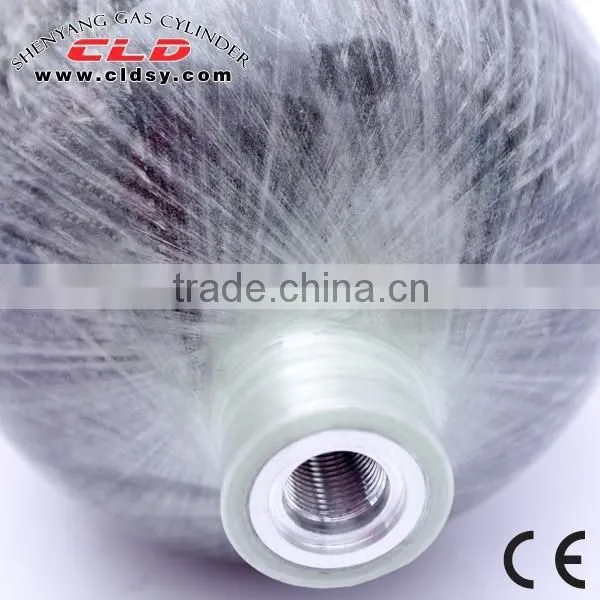

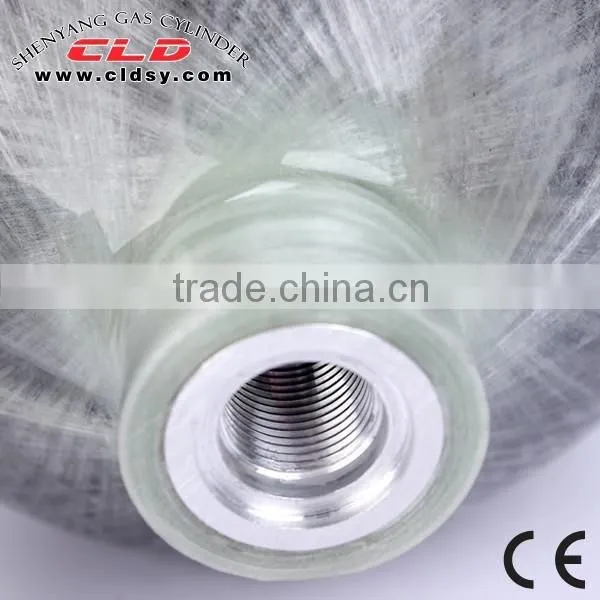

The seamless aluminum liner is made of high quality aluminum (aluminum 6061) and alloy materials.
The thickness of the liner wall is uniform, the shape of shoulder and base is produced with high precision and consistency.
Worldwide exported:
We are professional gas cylinder manufacturer which have produced Carbon fiber cylinders for more than 10 years,
our production have been exported to North America, South America, Canada, Russia, Central Asia, South Asia, Europe and win favourable evaluation from our customers.
Applications:
Our carbon fiber cylinder can provide effective respiratory protection for the fire fighters and emergency workers in dangerous environments
Standard:
EN12245:2009; EN12245:2002
Model list for Carbon fiber cylinders
| specifications | Water capacity | Outside Diameter | Overall length | Empty weight | Working pressure | |||||
| LTS | CU FT | MM | IN | MM | IN | KGS | LBS | BAR | PSI | |
| FQC63-0.3-30 | 0.3 | 0.01 | 63 | 2.48 | 212 | 8.35 | 0.45 | 0.99 | 300 | 4350 |
| FQC60-0.45-30 | 0.45 | 0.02 | 60 | 2.36 | 280 | 11.02 | 0.5 | 1.10 | 300 | 4350 |
| FQC60-0.5-30 | 0.5 | 0.02 | 60 | 2.36 | 310 | 12.20 | 0.6 | 1.32 | 300 | 4350 |
| FQC101-0.5-30 | 0.5 | 0.02 | 101 | 3.98 | 160 | 6.30 | 300 | 4350 | ||
| FQC100-1.2-20 | 1.2 | 0.04 | 100 | 3.94 | 280 | 11.02 | 0.9 | 1.98 | 200 | 2900 |
| FQC118-1.3-35 | 1.3 | 0.05 | 118 | 4.65 | 236 | 9.29 | 1.20 | 2.65 | 350 | 5075 |
| FQC101-1.5-30 | 1.5 | 0.05 | 101 | 3.98 | 324 | 12.76 | 1.30 | 2.87 | 300 | 4350 |
| FQC108-1.5-20 | 1.5 | 0.05 | 108 | 4.25 | 270 | 10.63 | 0.9 | 1.98 | 200 | 2900 |
| FQC113-1.6-20 | 1.6 | 0.06 | 113 | 4.45 | 268 | 10.55 | 0.9 | 1.98 | 200 | 2900 |
| FQC113-2.0-20 | 2 | 0.07 | 113 | 4.45 | 320 | 12.60 | 1.4 | 3.09 | 200 | 2900 |
| FQC101-2.0-30 | 2 | 0.07 | 101 | 3.98 | 405 | 15.94 | 1.6 | 3.53 | 300 | 4350 |
| FQC115-2.0-30 | 2 | 0.07 | 115 | 4.53 | 328 | 12.91 | 1.6 | 3.53 | 300 | 4350 |
| FQC116-2.0-20 | 2 | 0.07 | 116 | 4.57 | 292 | 11.50 | 1.40 | 3.09 | 200 | 2900 |
| FQC118-2.0-30 | 2 | 0.07 | 118 | 4.65 | 330 | 12.99 | 1.6 | 3.53 | 300 | 4350 |
| FQC120-2.2-20 | 2.2 | 0.08 | 120 | 4.72 | 320 | 12.60 | 1.3 | 2.87 | 200 | 2900 |
| FQC132-2.2-20 | 2.2 | 0.08 | 132 | 5.20 | 257 | 10.12 | 1.35 | 2.98 | 200 | 2900 |
| FQC128-2.4-20 | 2.4 | 0.08 | 128 | 5.04 | 306 | 12.05 | 1.5 | 3.31 | 200 | 2900 |
| FQC128-2.5-20 | 2.5 | 0.09 | 128 | 5.04 | 315 | 12.40 | 1.5 | 3.31 | 200 | 2900 |
| FQC132-2.7-20 | 2.7 | 0.10 | 132 | 5.20 | 315 | 12.40 | 1.4 | 3.09 | 200 | 2900 |
| FQC115-3.0-30 | 3 | 0.11 | 115 | 4.53 | 454 | 17.87 | 2 | 4.41 | 300 | 4350 |
| FQC136-3.0-30 | 3 | 0.11 | 136 | 5.35 | 352 | 13.86 | 2 | 4.41 | 300 | 4350 |
| FQC113-3.2-20 | 3.2 | 0.11 | 113 | 4.45 | 495 | 19.49 | 200 | 2900 | ||
| FQC140-4.7-30 | 4.7 | 0.17 | 140 | 5.51 | 487 | 19.17 | 3.3 | 7.28 | 300 | 4350 |
| FQC140-4.8-30 | 4.8 | 0.17 | 140 | 5.51 | 500 | 19.69 | 300 | 4350 | ||
| FQC157-6.8-30 | 6.8 | 0.24 | 157 | 6.18 | 533 | 20.98 | 3.9 | 8.60 | 300 | 4350 |
| FQC174-9.0-30 | 9 | 0.32 | 174 | 6.85 | 570 | 22.44 | 5.1 | 11.24 | 300 | 4350 |
| FQC196-12-30 | 12 | 0.42 | 196 | 7.72 | 605 | 23.82 | 6.5 | 14.33 | 300 | 4350 |
| FQC200-12-30 | 12 | 0.42 | 200 | 7.87 | 605 | 23.82 | 7.1 | 15.65 | 300 | 4350 |
| FQC220-20-25 | 20 | 0.71 | 220 | 8.66 | 770 | 30.31 | 11 | 24.25 | 250 | 3625 |
| FQC222-20-30 | 20 | 0.71 | 220 | 8.66 | 770 | 30.31 | 12 | 26.46 | 300 | 4350 |
| FQC352-50-30 | 50 | 1.77 | 352 | 13.86 | 795 | 31.30 | 26 | 57.32 | 300 | 4350 |
