Specifications
Top-grade CNC flow-forming necking-in machine designed and manufactured by our company .Top-grade CNC flow-forming necking-in machine designed and manufactured by our company has the following advantages: control system is stable and reliable; programming, commissioning, operation and maintenance are quick and convenient. The stability and reliability can meet the requirements of the necking-in process for all types of cylinders. This machine can produce cylinders with satisfactory necking-in shape and dimension and ensure the uniform wall thickness. This equipment has reached the world advanced level of top-grade computer numerical control specialized machine tool

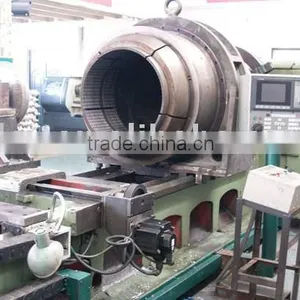

SPINNING MACHINE
CNC flow-forming spinning machine designed and manufactured by our company has the following advantages: control system is stable and reliable; programming, commissioning, operation and maintenance are quick and convenient. The stability and reliability can meet the requirements of the necking-in process for all types of cylinders.
Center height: |
1550mm (including underground base) |
Max. processing diameter: |
406mm |
Max. processing length: |
2000mm |
Processing method: |
hot spinning with rotary wheel |
Processing time: |
one neck or bottom/ 5mins |
Z axis travel of slide, effective length: |
500mm |
Z axis thrust: |
200KN |
Z axis slide speed, variable up to: |
3000mm/min |
X axis slide speed, variable up to: |
3000mm/min |
Overturn thrust: |
200KN |
Clamping travel: |
70mm |
Clamping force: |
200KN |
L axis feeding speed: |
6000mm/min |
L axis returning speed: |
7800mm/min |
Main spindle variable speed, variable requency: |
100-300rpm |
Main spindle drive: |
75KW |
Drive rating for hydraulic system: |
30KW |
Weight depending on delivery scope, approx: |
35000kg |
Operation voltage: |
380V |
Control voltage: |
220V |
Frequency: |
50HZ |
Water entry temperature: |
20 |
Pre-heater Middle Frequency System |
frequency 0-20KHZ, power: 120KW |
.
